Zeitronix ZT-2 and ZR-1 Wideband Gauge Package
Zt-2 Model 2010 Wideband Datalogging System
The Zeitronix Wideband Air/Fuel ratio meter and datalogging system is a high quality, stand-alone system for use with carbureted and electronic fuel injection engines. Zt-2 Wideband Kits provide the best bang for your buck delivering unmatched quality, features and capabilities for very reasonable prices. Our system provides the accuracy of a Dyno Air/Fuel reading right in your vehicle as well as multiple engine parameters. Our base system is very easy to install and retails at $299 USD which includes the wideband oxygen sensor, controller, wiring hardware, and the software required to start datalogging and tuning immediately.
Supports Air/Fuel ratio as AFR/Lambda, plus RPM, Vacuum, Boost, Exhaust Gas Temperature, Throttle Position, 0-5 volt sensors, Air/Fluid temperature sensors and Oil/Fuel pressure sensors. Tune fuel injected and carbureted engines.
Very simple installation - connect two wires to +12V and ground and place the O2 sensor in the exhaust stream and you are ready to read AFR! A simple LED indicator displays off, warm-up and running modes.
Zt-2 Inputs/Outputs
- Bosch Wideband O2 sensor Input
- Linear Wideband Output AFR = Volts * 2 + 9.6
- Serial data output to the Zeitronix LCD, ZR-1 AFR, and ZR-2 Multi-Gauge Displays
- Serial data output for real time datalogging (PC laptop required)
- RPM Input (tachometer, primary side ignition coil, crank, cam sensor).
- The RPM input works in any car and any ignition system. No additional adapters needed!Wideband Oxygen Sensor
- Simulated and adjustable Narrowband Output to feed a stock ECU
- Throttle Position Sensor Input
- 50 PSI (3.5 Bar) MAP Sensor, or 75 PSI (5.0 Bar) MAP sensor or 150 PSI (10 Bar) MAP sensor
- Exhaust Gas Temperature (EGT) probe Input
- User1 Input:
- 0-5 volt analog input. Voltage data is viewable on all models of the LCD display.
- Software support for the display of Zeitronix pressure sensors.
- Customized data conversions can be entered to match 0-5 volt sensor specifications.
- All converted User1 data values are displayed only in the software.
- User2 Input:
- 0-5 volt analog input OR configurable to be used with Fuel/Oil/Boost pressure sensors and Air/Water/Oil/Transmission temperature sensors.
- Data is displayed on the 2010 Model LCD and ZR-2 Multi-gauge as a pressure or temperature.
- Zeitronix Data Logger software will display and log data according to sensor type.
- Customized data conversions can be entered to match 0-5 volt sensor specifications.
- Customized data conversion values are displayed in the Zeitronix Data Logger software only.
- Warning Output for use with ZAVT-1 warning/trigger box
- 5V output for sensors

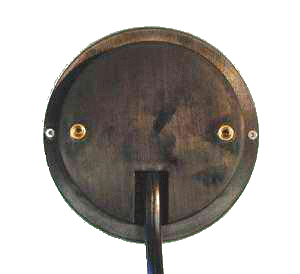

SEMA Award Winning Zeitronix ZR-1 3-Digit Wideband Air/Fuel and Lambda Gauge
The Gauge works with all versions of the Zeitronix Zt-2 Wideband AFR meter and Datalogging Systems and Zt-3 Wideband AFR Meter. The ZR-1 plugs into the Zt-2 or Zt-3 DATA port and can be used while datalogging.
Clean and easy plug and play installation: power and display information is provided using one wire connecting to the Zt-2 or Zt-3 DATA port. The ZR-1 cable length is 5 ft (1.5m) and can be extended if needed.
ZR-1 Features
- Stylish, machined, brushed aluminum or anodized black bezel and slim enclosure
- High contrast LED display
- Large 0.4" (10mm) digits - available in Blue or Red
- Slim design for flexible gauge mounting options
- Programmable to startup as an AFR or Lambda gauge
- Peak and Hold feature
Applications
- Universal
Zt-2 Specifications
- 0.1 AFR accuracy
- Operating voltage 10V to 18V
- Switching power supply for oxygen sensor heater
- Precise sensor temperature control
- Reverse polarity protection
- Integrated self-resetting fuse
- Positive lock connectors
- Protected inputs and outputs
- Flexible Plug and Play Sensor Harness with a small, easy to route through the fire wall, connector
- Wideband Oxygen Sensor included
- Easy to install plug and play kit
- Adjustable Narrowband Switching Point
- Warning Alarms and Triggers
ZR-1 Specifications
- Base diameter: 2 1/16" (52mm)
- Bezel diameter: 2 1/2" (62mm)
- Thickness: 0.75" (19mm)
- Digit height: 0.4" (10mm)
What's In The Box?
- Zt-2 Wideband Controller
- ZR-1 Wideband LCD Display
- Bosch 5 wire Wideband Oxygen Sensor
- Oxygen Sensor Harness (10 feet length)
- Signal Harness
- Serial datalogging cable with RJ-12 to DB-9 converting plug
- Zeitronix Data Logger software
- Instructions
- 2 pin connector for the EGT input
Warranty
- Manufacturer Standard Warranty
