Zeitronix ZT-2 and LCD Wideband / Boost / EGT Display Package
Zeitronix ZT-2 and LCD Wideband / Boost / EGT Display Package - Modern Automotive Performance

Zeitronix ZT-2 and LCD Wideband / Boost / EGT Display Package

Zeitronix
SKU:
Looking for the lowest price?

Give us a call to get the best prices and parts for your build. Or, just call us with a cool racing story...either way we're here.

Phone Call or Text 651-927-4510

Email - sales@maperformance.com

Fits Your:
FREE Delivery Expected by , when ordered within hrs and mins
Bezel Color
 Need Help Getting Started?
Call Or Text Our Experts at 651-927-4510
FREE* SHIPPING ON ORDERS OVER $149
30-DAY RETURNS
*SEE DETAILS
33,000+ 5 STAR REVIEWS
MAP FITMENT GUARANTEE
$429.00

Earn  $8.58 In MAP Rewards!

LCD Display Specs:
Yes, you can be fast without the A-pillar gauges. The remote LCD display gives you a stealth look and important data in high contrast digital format. The aluminum enclosure dimensions are 4.7" x 2" x 0.9" , slightly larger than the LCD display itself. The LCD fonts are bright white on a black background. High contrast LCD digits are visible even in a direct sunlight. A push of a button located on the right side of the LCD shows peak and hold maximum AFR, Lambda, EGT and Boost values. The LCD display communicates with the Zt-2 digitally through a serial interface. This allows for a clean display installation in the car, since all heavy wire connections are going to the Zt-2. The display serial cable is thin, black and easily blends with the dash. The new overlay is made from hard coated, scratch resistant material.

ZT-2 Features

  • 0.1 AFR accuracy
  • Operating voltage 10V to 18V
  • Switching power supply for oxygen sensor heater
  • Precise sensor temperature control
  • Reverse polarity protection
  • Integrated fuse
  • Flexible Plug and Play Sensor Harness with a small connector which is easy to route through the firewall
  • Wideband Oxygen Sensor included
  • Easy to install plug and play kit
  • Adjustable Narrowband Switching Point
  • Warning Alarms and Triggers

Inputs/Outputs:

  • Bosch Wideband O2 sensor
  • Linear Wideband Output AFR=Vx2+9.6
  • Nonlinear Wideband Output
  • Serial data output to the Zeitronix Wideband LCD Display
  • Serial data output for real time datalogging (PC laptop required)
  • RPM Input ( tachometer or primary side ignition coil input)
    *The RPM input works in any car and any ignition system. No additional adapters needed!
  • Simulated Narrowband Output to feed a stock ECU
  • Throttle Position Input
  • Boost Sensor Input
  • EGT Probe Input
  • User Input/Warning Output
Be sure to add a MAP sensor if you would like to display boost or an EGT Probe+ Extension Harness if you would like to display EGT and you do not have an existing EGT sensor.

Important Note: This item is not vehicle specific. It is compatible with a wide range of applications and is therefore displayed on our site regardless of your vehicle selection. Please review the specifications and verify compatibility prior to placing your order.

Share

Facebook Twitter Pinterest

Customer Reviews

Based on 3 reviews
100%
(3)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
T
Tyler P
Great Gauge

Overall this was a great gauge and arrived fast. I had this in my Ralliart mounted in front of the shifter. I wish there were more mounts for these, but nothing that can be helped. great product MAP

K
Kyle
Best Wideband I’ve ever used.

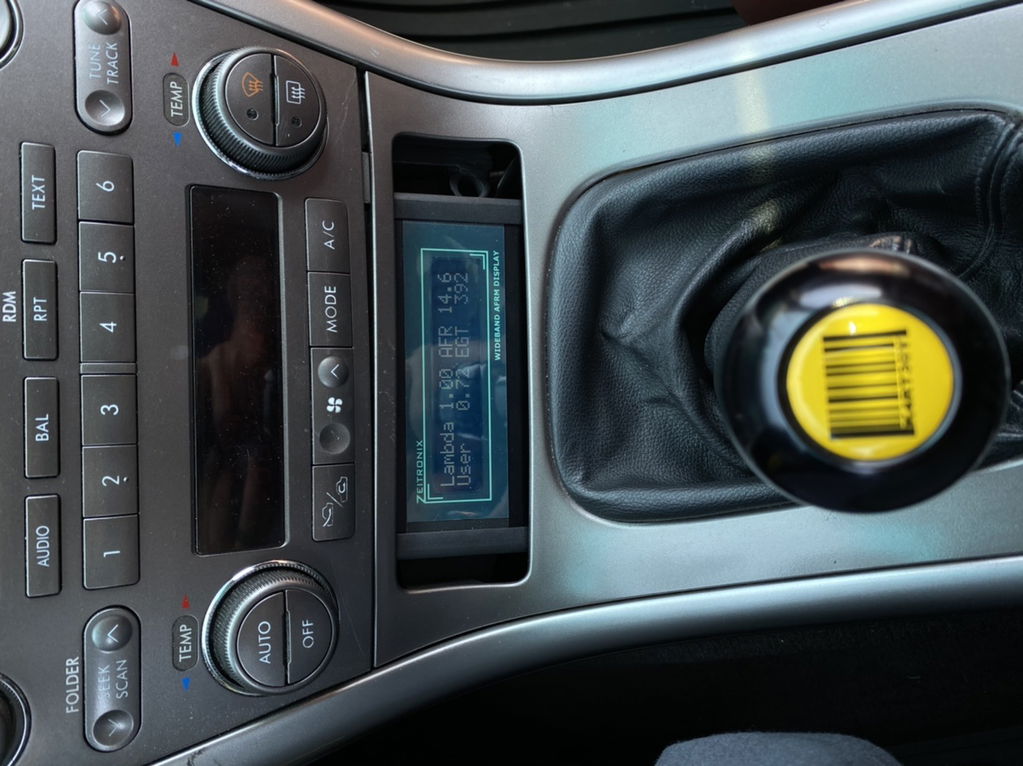

This wideband is the best. It’s multiple gauges in one LCD screen saving a ton of space. Love it. I have a 06 Subaru LGT. Was hard at first to find a spot to mount it but I removed the ashtray cause I don’t smoke and fabricated a mount for the LCD screen. Fits perfect.
