Zeitronix nDash Touch Screen Display (nDash)

Zeitronix nDash Touch Screen Display and Datalogger

Works with the Zt-2 and Zt-3 Wideband Datalogging Systems and with OBDII vehicles. The nDash is a full-color display with logging capabilities for both the Zt-2 and Zt-3 Wideband plus OBDII systems. Plug and play nDash connection cables to the Zt-2 Wideband and OBDII are included, plus the Zt-2 and Zt-3 N-Dash license!

Features

• Data logging support onto removable memory card -- no laptop or PDA required
• Auto Adjusting backlight, night mode, and low power standby
• Calculate Horsepower, Torque, 0 to 60 Performance, MPG and set configurable trip counters
• Diagnose and clear check engine light error codes
• OBDII and Plug and Play Zeitronix Zt-2 cables included
• N-Dash Zt-2 license included
• Simple and secure windshield-mounted display
• Zeitronix nDash display is Preconfigured for easy Plug and Play use with the Zt-2, Zt-3 or combination of both

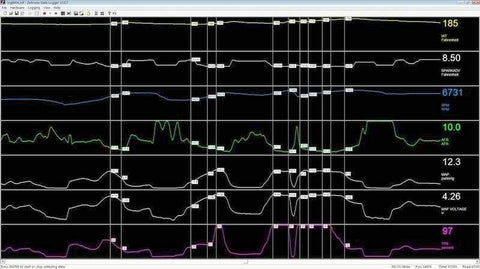

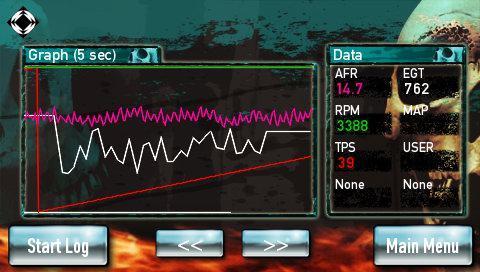

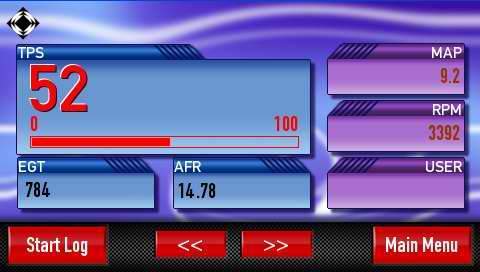

• Display and data log AFR, RPM, EGT, Vacuum/Boost, TPS, and configurable User Inputs from one or two Zt-2s
• Run a Dual Zt-2 or Zt-3 configuration for left and right cylinder bank AFR values!
• 4.4" Touch-Screen offers 480x272 resolution using TFT LCD technology.
• 24-bit full color display with contrast ratio of 350:1
• Dimensions are 5” x 3” x 0.75”, weight is only 0.5 lbs, (127mm x 77mm x 19mm, 275 grams)
• Full OBDII support for display of parameters such as Mass Air Flow, Spark Advance, Coolant Temperature, and many more! (OBDII is not required for use with the Zt-2 and Zt-3.)
• Generic OBDII, Enhanced Ford, Chrysler and GM drivers

Applications

• Universal

What's In The Box?

• nDash Display
• OBDII Cable
• Zeitronix Zt-2 cable
• USB Cable
• Windshield Mount

Warranty

• Manufacturer Standard Warranty
