Zeitronix ECA-2 Ethanol Content Analyzer Kit w/ E% Gauge (ECA-2-KIT)

ECA-2 Ethanol Content Analyzer Kit by Zeitronix

Now you can test your ethanol % to make sure it's what is being advertised. Many times (especially in early spring) fuel stations will advertise E85 but its really only around E70, and this can lead to multiple problems when tuning or racing your E85 fueled vehicle.

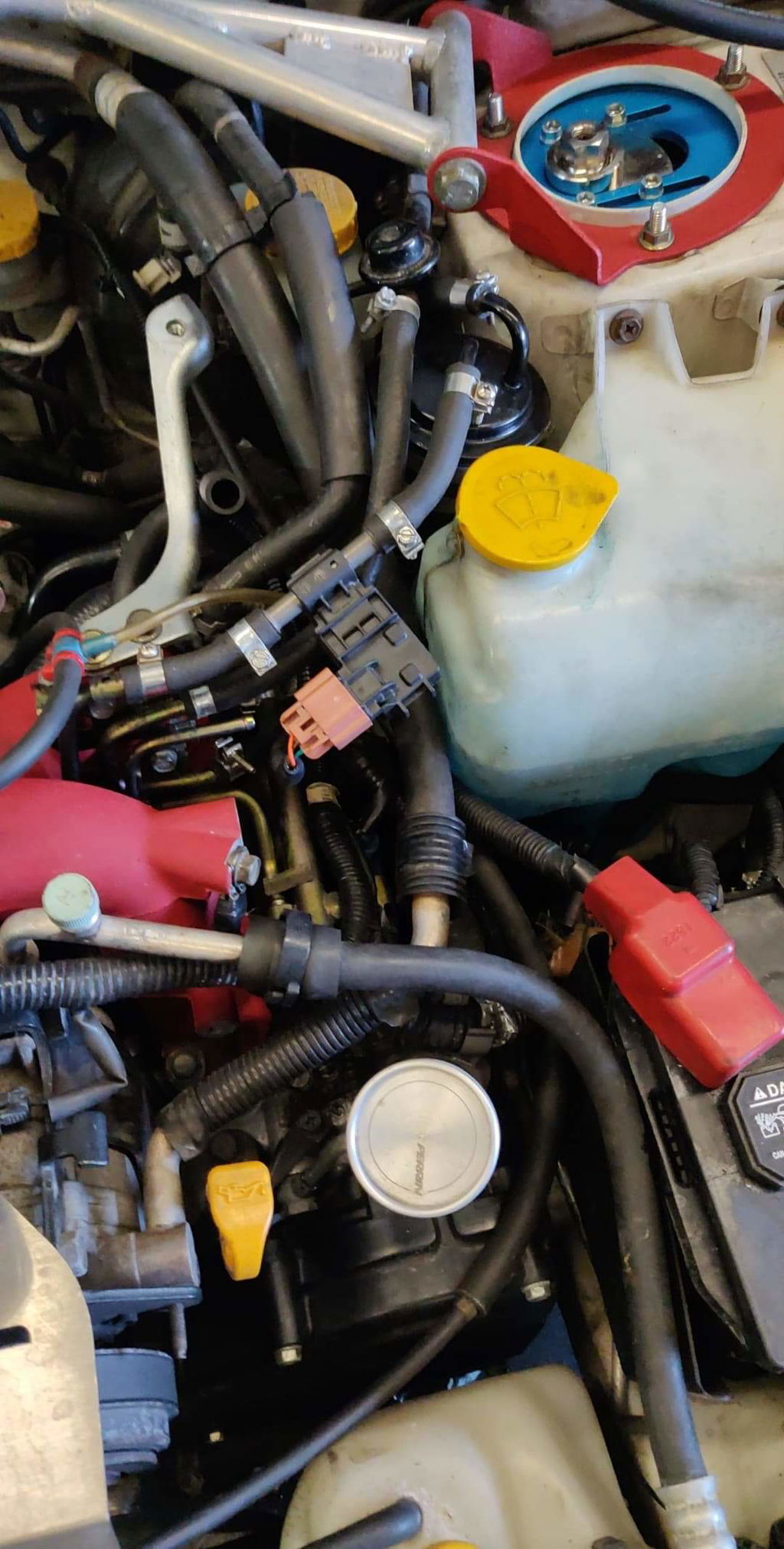

This Zeitronic Ethanol Analyzer kit does exactly that. It's installed as part of your fuel system and monitors the ethanol content of the fuel before it enters your engine. This can be evermore handy when tuning to a wide range of ethanol content levels, making this a tool that will pay for itself just in just a few weeks!

Features

• Two 0-5 V analog outputs: Ethanol % and Fuel Temperature for use with ECUs, data logging and engine management systems.
• Error indication in event of signal absence from Flex Fuel Sensor

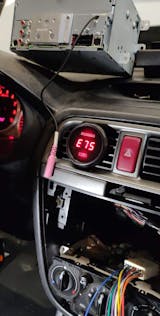

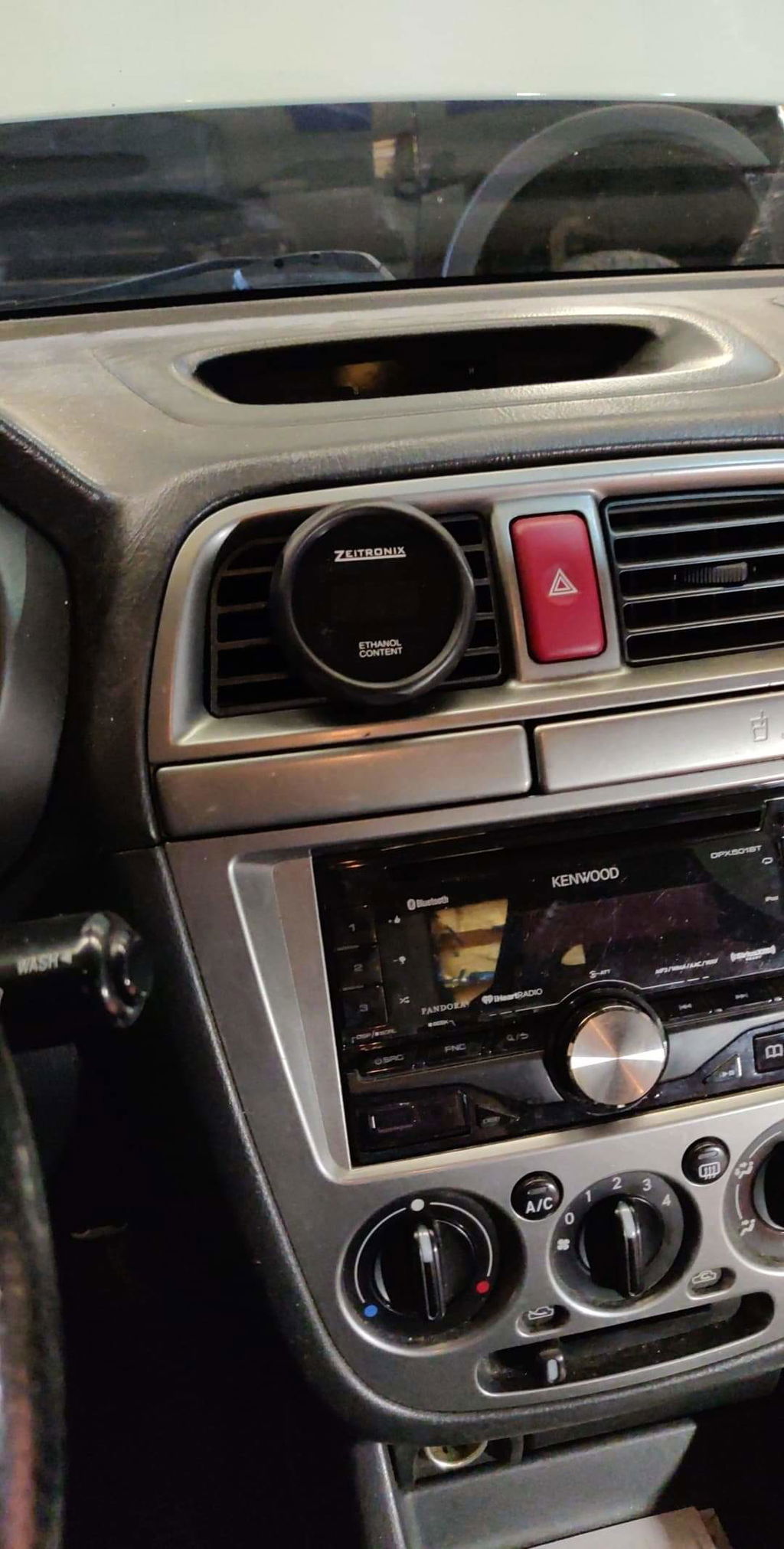

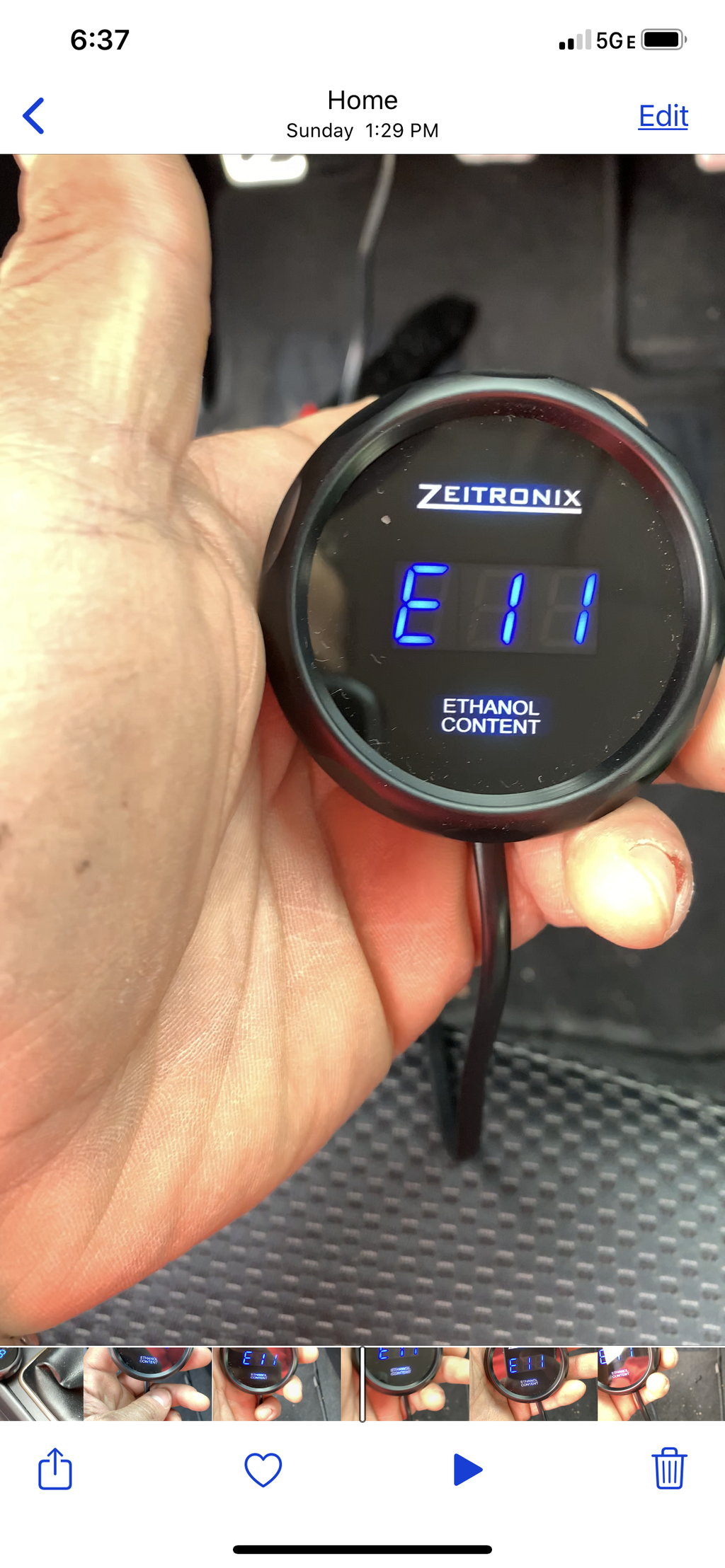

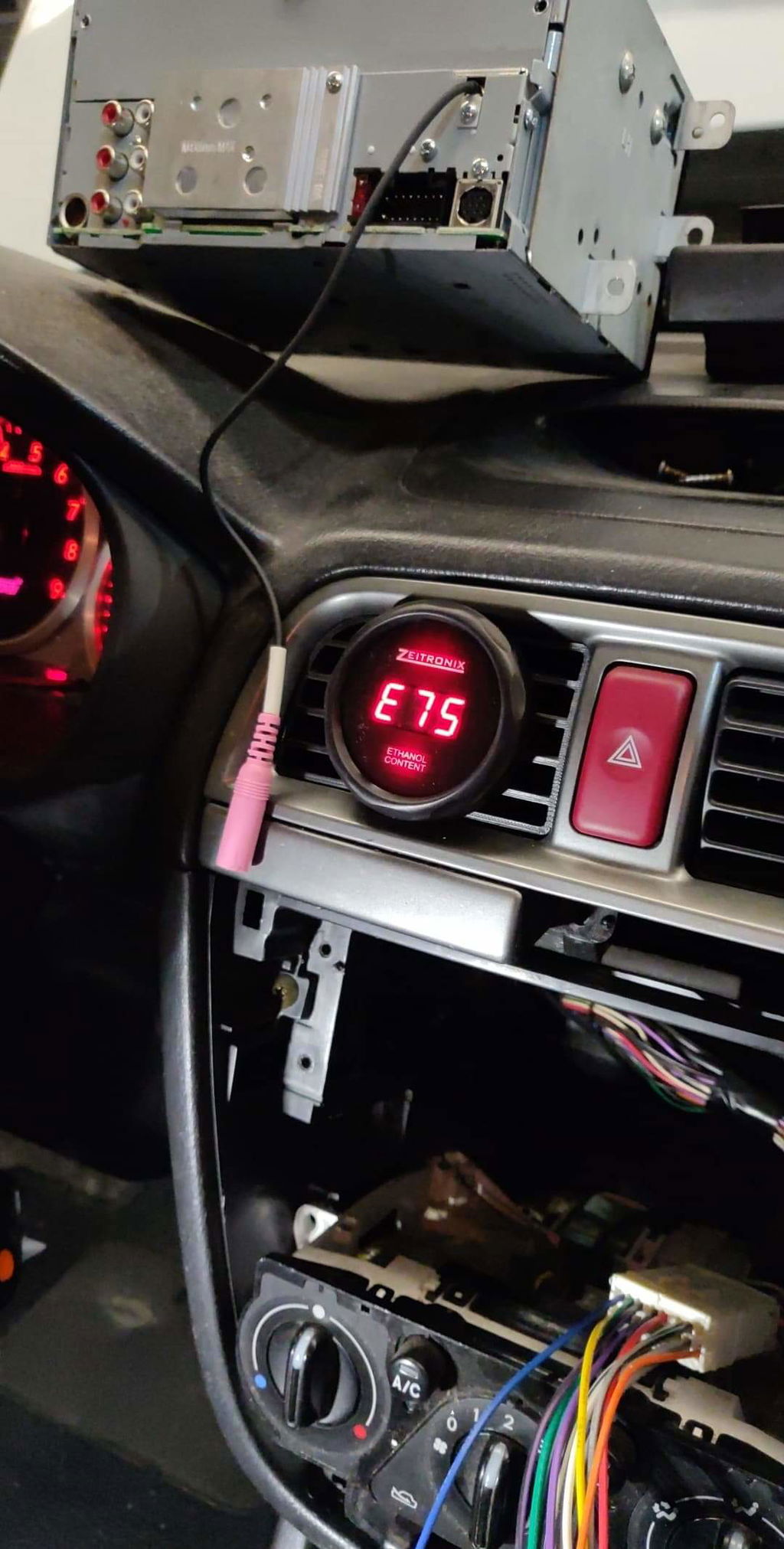

• The gauge is only 3/4" (19mm) thick. The back of the gauge is completely flat with cable hidden in a cavity and can be surface mounted almost anywhere inside the car cabin using a piece of Velcro or double sided tape.
• The gauge base allows the gauge to be mounted in a standard 2” 1/16 (52mm) gauge pod.
• Power and serial data is supplied directly through the single connection - there are no additional +12V or ground wires. The gauge cable length is 5 ft (1.5m).
• ECA-2 dimensions: 3" x 2" x 1" (76mm x 50mm x 25mm)
• Made in the USA!

• Connecting harness and Zeitronix Flow Through FLEX Fuel Sensor is optional. Harness length is 8 ft (2.4m)

Applications

• Universal

Specifications

• Range: 0 to 100% Alcohol (ethanol)
• Sensor Accuracy: 5% of the mix ratio
• Output Characteristic: Linear
• Operating Temp: Environment -40°C to +125°C, Fuel -40°C to +90°C
• Max Fuel Pressure: 10 bar (145 psi)
• Max Pressure Drop: 0.1 bar (1.45 psi)
• Max Flow: 200 l/h
• Supply Voltage: 6-18 Volts DC
• Sensor Temp Error: < 1.5%
• Response Time: < 250 ms after power on at any temperature

What's in the Box?

• 1 - ECA-2 Ethanol Content Analyzer
• Choice of E% Gauge Display or Dual Ethanol % and Fuel Temperature Display
• OPTIONAL 1 - Flow Through Flex Fuel Sensor with Harness

Warranty

• Zeitronix Manufacturer Warranty
