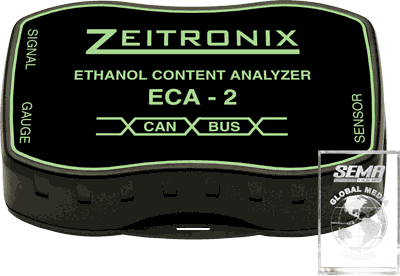

Zeitronix ECA-2 CAN Bus Ethanol Content Analyzer (ECA-2 CAN Bus)

Zeitronix Ethanol Content Analyzer ECA-2 CAN Bus

Now you can test your ethanol % to make sure it's what is being advertised. Many times (especially in early spring) fuel stations will advertise E85 but its really only around E70, and this can lead to multiple problems when tuning or racing your E85 fueled vehicle.

This Zeitronic Ethanol Analyzer kit does exactly that. It's installed as part of your fuel system and monitors the ethanol content of the fuel before it enters your engine. This can be evermore handy when tuning to a wide range of ethanol content levels, making this a tool that will pay for itself just in just a few weeks!

E85 has the equivalent octane rating of 105 octane gasoline. Higher octane fuel is more resistant to knock allowing for more aggressive ignition timing, higher compression and increased engine power over gasoline itself. The Zeitronix Ethanol Content Analyzer helps you get the most out of your engine and fuel.

Features

• CAN Bus communication for easy connection and logging through other CAN Bus devices.
• Two 0-5 V analog outputs: Ethanol % and Fuel Temperature for use with Dashes, ECUs, data loggers and engine management systems.
• Optional real time E% Ethanol Content Gauge.
• Error indication in event of signal absence from Flex Fuel Sensor
• Connecting harness to Zeitronix Flow Through FLEX Fuel Sensor is included.
• Harness length is 8 ft (2.4m)
• A flex fuel sensor is required. The ECA-2 CAN is compatible with some OEM sensors used in GM vehicles with the flex fuel insignia or which run on E85. However GM offers a large number of different sensors with different specs.

Applications

• Universal

Specifications

• User selectable CAN Bus Speed: 1Mbps, 500 Kbps, 250 Kbps, 125 Kbps
• User selectable CAN Bus ID: Standard (11 bit) and Extended (29 bit)
• User selectable CAN Bus address: Standard 0x0000 to 0x7FF or Extended 0x0000 to 0x7FFF
• User selectable CAN Bus update rate: 1ms (1000Hz) to 250ms (4 Hz)
• 120 ohm termination- None
• CAN DATA
• Data 0 : E % = 8 bit
• Data 1 : Fuel Temperature (C) = 8 bit - 40
• Data 7: FF Sensor Status
• 0x00 Sensor OK
• 0x01 Sensor fault

What's in the Box?

• ECA-2 CAN Bus Ethanol Content Analyzer
• OPTIONAL Dual Ethanol % and Fuel Temperature Display
• OPTIONAL Flow Through Flex Fuel Sensor

References

• Installation Instructions

Warranty

• Zeitronix Manufacturer Warranty
