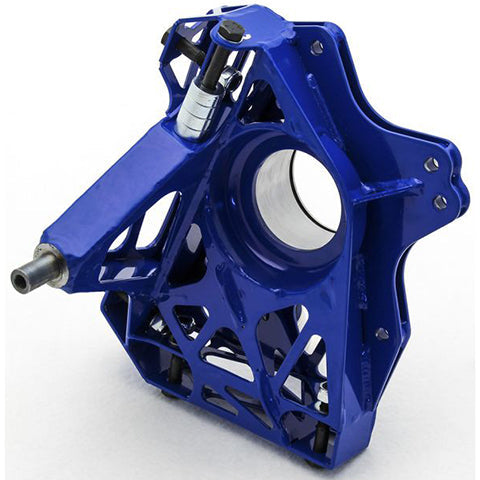

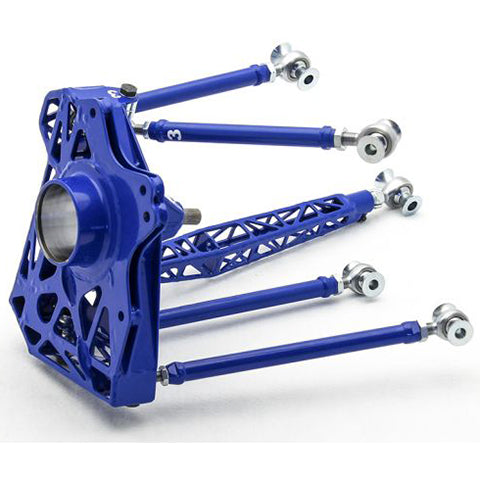

Wisefab Rear Suspension Drop Knuckle Kit | 2002-2012 Mazda RX-8 and 2005-2015 Mazda Miata (WFR81)

2002-2012 Mazda RX-8 and 2005-2015 Mazda Miata Rear Suspension Drop Knuckle Kit by Wisefab

Rear suspension kit for Mazda RX8 and this kit is also suitable for the MX5(NC 2005-2015). Wisefab has revised all the kinematics and built a complete new knuckle for the RX8. Higher roll center and less camber gain. Adjustable anti-squat and bumpsteer to ensure the best sideways performance for your drift car.

Features

• Revised kinematics, not just dropped knuckle
• Slightly lighter than the original aluminum suspension

Benefits

• Higher roll center, revised camber gain
• Anti-squat adjustment
• Bump steer adjustment
• Clearance for up to 110mm CV joint

Please Note: Hub to hub length (track) is the same as the original, as this is defined by halfshaft length. Knuckles have a dual caliper setup. This kit assumes coilovers to adjust ride height. The minimum rim size is 17".

Applications

• 2002-2012 Mazda RX-8
• 2005-2015 Mazda Miata

What's In The Box?

• 1 - Pre-Set Suspension Link Kit
• 2 - Uprights with Hardware

References

• Installation Instructions

Warranty

• Wisefab's Limited Manufacturer's Warranty
