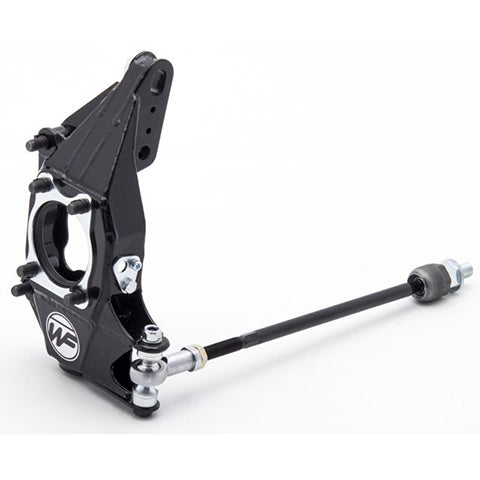

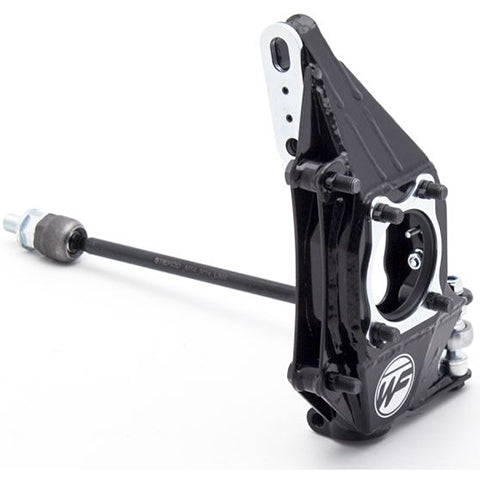

Wisefab Front Drop Knuckle Kit | 1992-2020 Subaru WRX/STI, and 1997-2007 Subaru Forester (WFGD3)

1992-2020 Subaru WRX/STI, and 1997-2007 Subaru Forester Front Drop Knuckle Kit by Wisefab

Subaru Impreza is a good performance car designed for rally. Because of its good performance, it’s more and more used for grip racing as well. Lowering the car will give more grip and better handling, but then the factory-designed kinematics won’t work as they are supposed to. Wisefab Subaru Impreza knuckles/uprights bring the roll center, bump steer, and camber curve back to normal range, providing better roll stiffness, handling, and grip.

Features

• -2 kg lighter over OEM knuckle / upright - still maintains required strength and stiffness
• -50mm drop from the knuckle / upright
• Mounting points for 5x100 or 5x114,3 wheel bearings
• Either 2005 - STI 5x114,3 bolted wheel bearing (28373VA000) or 2007 - 2013 WRX 5x100 bolted wheel bearing (28373FG000) can be used
• Bumbsteer adjustment via washers on the upright
• OEM wheel speed sensor - either 1992 - 2007 or 2008 - 2013 type can be used. Hardware for installing included
• CrMo spherical rod end used instead of OEM tie rod
• Adaptor to fit either STI or WRX shock included
• Fits with all OEM fixed 4 piston brake calipers, does not fit with OEM one or two piston floating brake caliper.

Benefits

• Quicker steering ratio
• Rollcenter correction
• Mounting points for 5x100 or 5x114,3 wheel bearings
• Bumpsteer adjustment

Please Note: 2015 MY steering rack M20 inner tie rod applications need part number - WFGD3_610A. Pre 2003 steering rack M14 inner tie rod applications need part number - WFGD3_620A.

Applications

• 1992-2020 Subaru WRX/STI, and 1997-2007 Subaru Forester

What's In The Box?

• 2 - Knuckles with Hardware
• 2 - Assembled Tie Rods
• Mounting/Installation Hardware

References

• Installation Instructions

Warranty

• Wisefab's Limited Manufacturer's Warranty
