Wisefab Front Drift Angle Lock Kit | 2013-2021 Subaru BRZ/Scion FR-S/Toyota 86 (WF860 LHD/RHD)

2013-2021 Subaru BRZ/Scion FR-S/Toyota 86 Front Drift Angle Lock Kit by Wisefab

Scion FRS, Toyota GT86, and Subaru BRZ all have the same chassis. Wisefab has engineered a lightweight super strong billet knuckle and lower control arm. Also relocated and replaced OEM electric steering rack with a hydraulic steering rack for a better response and feedback from the road in racing. Kinematics has been revised for maximum sideways performance with adjustable Ackermann settings. Nissan S-Chassis hydraulic steering rack ( 50mm outer diameter ) is needed to be used with the kit to replace the original electric power steering. S-Chassis steering rack attachment/cross member insert along with cross member supports are included in the kit. To modify the cross member some DIY cutting and welding needs to be done.

Features

• Constructed of High-Quality 7075-T6 Aluminium
• CrMo rod ends and spherical bushings used instead of OEM bushings

Benefits

• 62 degrees of lock, parallel steering
• 7 kg of weight reduction
• Higher roll center
• Good camber control and minimal bump steer with high steering angles
• Steering jacking control
• Consistent and predictable self-alignment torque

Applications

• 2013-2021 Subaru BRZ
• 2013-2016 Scion FR-S
• 2013-2021 Toyota 86

What's In The Box?

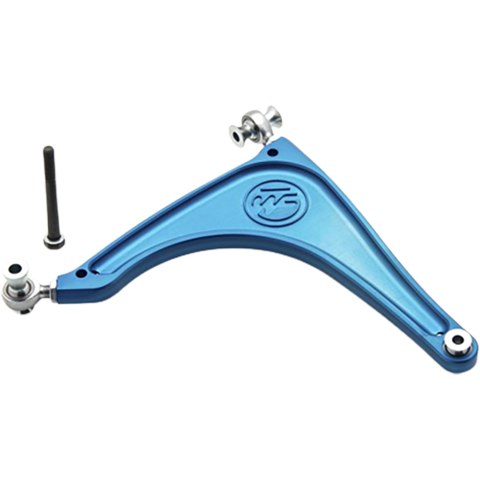

• 2 - Preset Lower Control Arms
• 2 - Knuckles with Hardware

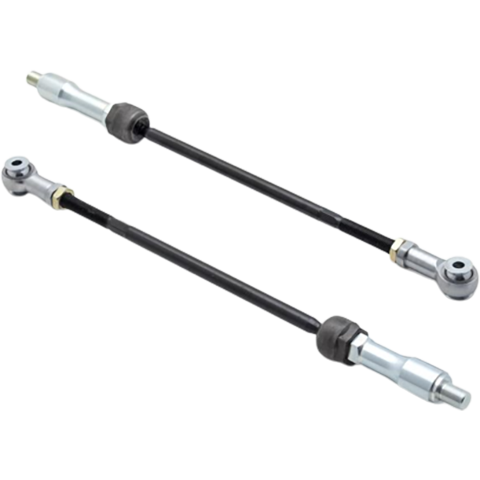

• 1 - Assembled Tie Rod Kit

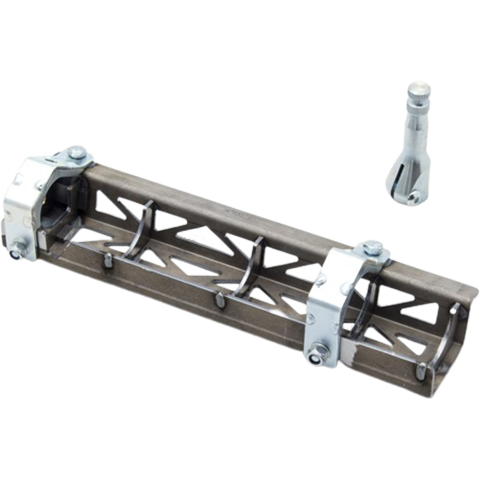

• 1 - Rack Relocating Kit
• 1 - Crossmember Support Kit

References

• Ackermann Explanation

Warranty

• Wisefab's Limited Manufacturer's Warranty
