1992-2002 Mazda RX-7 Front Drift Angle Lock Kit by Wisefab

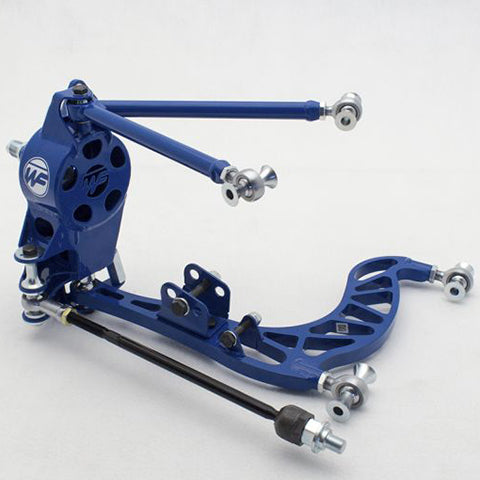

Mazda RX7 FD Chassis Angle kit with 62 degrees of lock. Original swaybar can be used. Lower control arms have an adjustable shock motion ratio. The steering rack can be lowered up to 10mm if needed. Adjustable lock stoppers.
Features
- All the steel components on Wisefab RX7 front suspension are from high strength steel
Benefits
- 62 degrees of lock, parallel steering
- Adjustable lock stopper
- Higher roll center
- Steering jacking control
- Consistent and predictable self-alignment torque
Please Note: Steering rack at the original position can be used or it can be lowered 10mm if needed. This kit assumes coilovers to have enough clearance. Ride height is designed to be ~80mm from front subframe to ground. Dependent on rim width and ET, wider fenders or fender flares would be needed. Inner wheel wells do not need to be modified with tire diameter up to 635mm (215/45R17, 225/45R17, 235/40R17, 225/40R18, etc). The minimum rim diameter is 17”. Recommended backspacing is ~135mm (7“ ET45; 8“ ET35; 9“ ET20). If ET is smaller, then wheels stay more outwards, if ET is bigger, then spacers need to be used. The kit is designed and manufactured the way that after installation and toe adjustment it’s ready to use right away.
Applications
- 1992-2002 Mazda RX-7
What's In The Box?

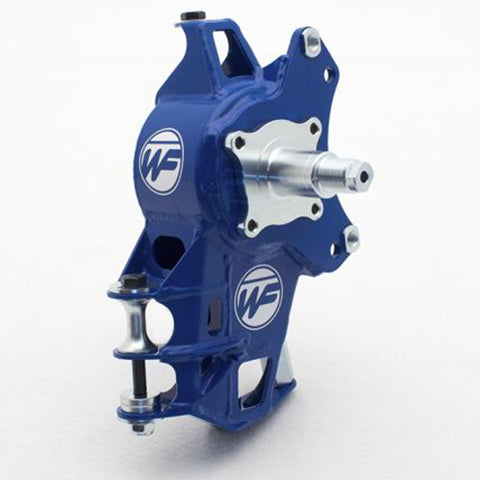

- 2 - Knuckles with Hardware

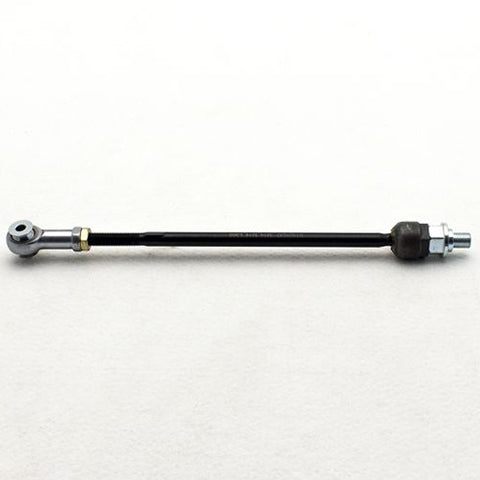

- 1 - Assembled Tie Rod Kit

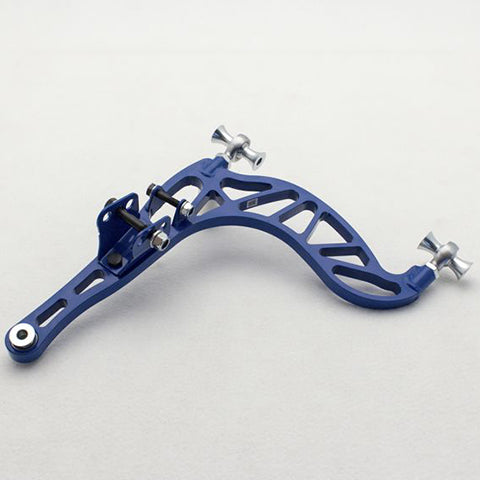

- 2 - Lower Control Arms

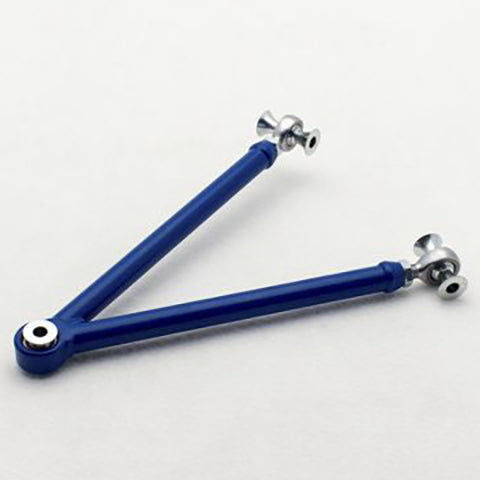

- 2 - Upper Control Arms
