Wisefab Front Drift Angle Lock Kit | Multiple BMW Fitments (WF220)

Multiple BMW Fitments Front Drift Angle Lock Kit by Wisefab

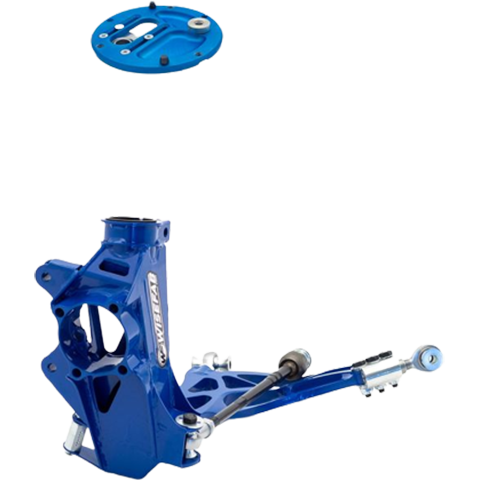

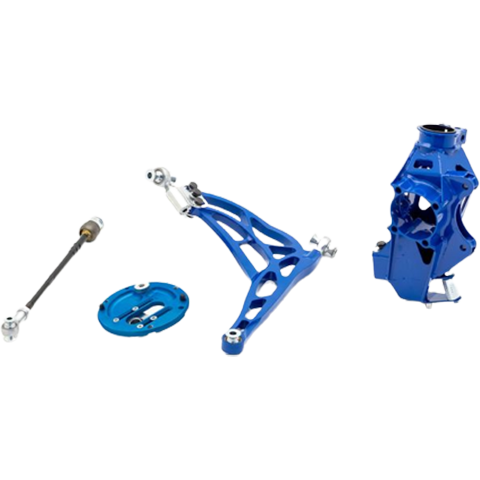

Wisefab BMW F-Series angle kit can be fitted on a variety of BMW models such as: F20, F21, F22, F30, F31, F32, F80, F82, F87, etc. Brackets are included to fit M brake calipers. Either M or nonM front coilovers would work with Wisefab F-Series knuckles. All the metal components on Wisefab front suspension are made from high-strength steel, including sheet metal components, tubes, tube ends, and rod end housings.

Features

• One-piece lower control arm design with easy caster adjustment
• Mounting hardware for E9X hydraulic steering rack
• Original wheel speed sensor (ABS sensor) can be used

Benefits

• 65 degrees of lock, parallel steering
• Adjustable lock stopper
• Higher roll center
• Very good camber control and minimal bump steer with high steering angles
• Steering jacking control
• Consistent and predictable self-alignment torque

Please Note: This kit assumes coilovers, to have enough clearance. Ride height is designed to be ~80mm from front subframe to ground. Dependent on rim width and ET, wider fenders or fender flares would be needed. Inner wheel wells do not need to be modified with tire diameter up to 635mm (215/45R17, 225/45R17, 235/40R17, 225/40R18, etc.) The minimum rim diameter is 17”. Recommended backspacing is ~135mm (7“ ET45; 8“ ET35; 9“ ET20). If ET is smaller, then wheels stay more outwards, if ET is bigger, then spacers need to be used. The kit is designed and manufactured the way that after installation and toe adjustment it’s ready to use right away.

Applications

• 2012-2019 BMW 1 Series (F20/F21)
• 2014-2021 BMW 2 Series (Including M2)
• 2012-2019 BMW 3 Series (F30/F31)
• 2014-2019 BMW M3
• 2014-2021 BMW 4 Series
• 2014-2020 BMW M4

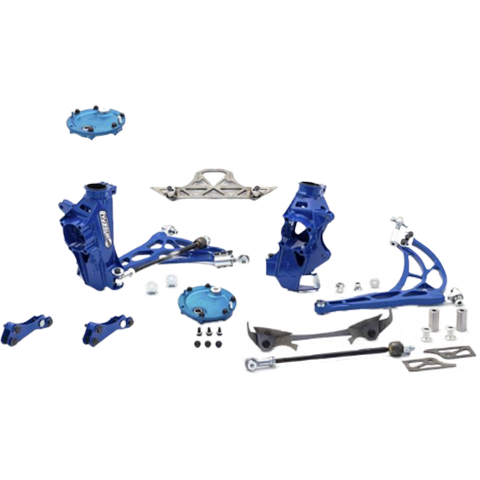

What's In The Box?

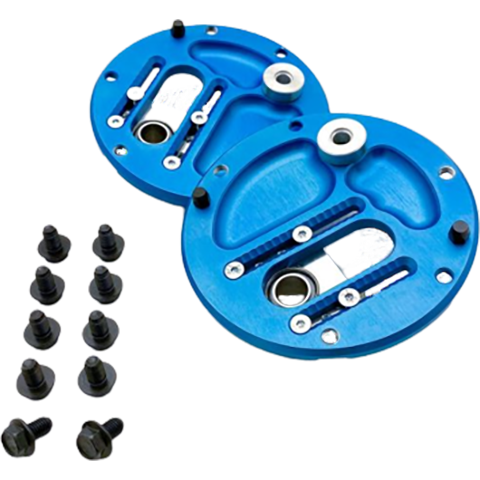

• 2 - Adjustable Coilover Upper Mounts

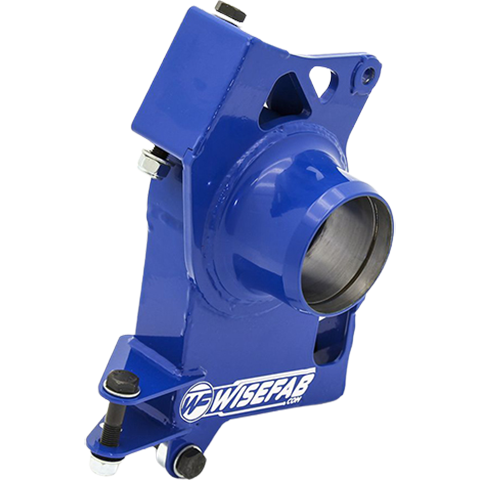

• 2 - Knuckles with Hardware

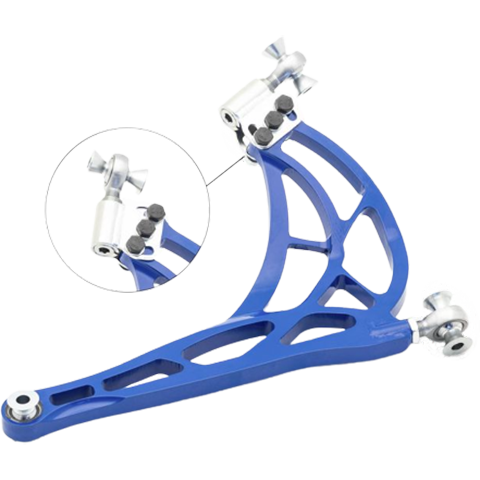

• 2 - Lower Control Arms
• 1 - Assembled Tie Rod Kit
• 2 - Brake Adapters for M model brakes
• 1 - Coilover Adapter Sleeve

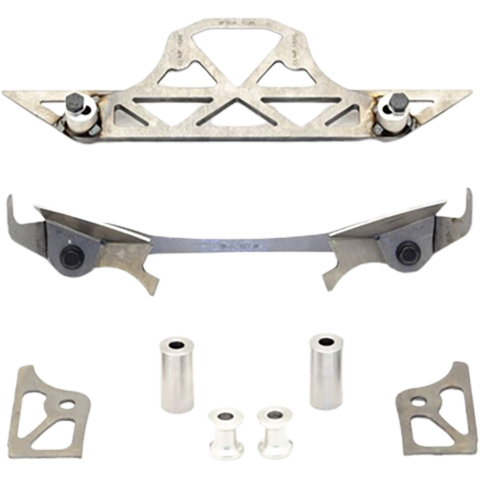

• 1 - Steering Rack with Mounting Hardware

Warranty

• Wisefab's Limited Manufacturer's Warranty
