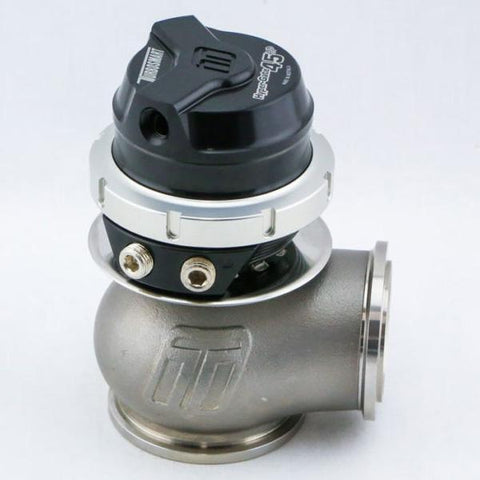

Turbosmart Gen-V WG45HP Hyper-Gate45 35psi EWG (TS-0553-1312)

Gen-V WG45HP Hyper-Gate45 35psi External Wastegate by Turbosmart

Turbosmart continues to roll out the Gen-V Range overhaul, with their High Pressure (HP) Range updated and upgraded with the Gen-V modularity, improved thermal management, water cooling options and even more gate flow than ever before.

The New Gen-V HP range from Turbosmart takes all the advances in design and engineering from the Gen-V External Wastegate range such as option water cooling, rotating housing, improved thermal management & industry-leading gate flow and ⅛ NPT reference ports and takes it all to new heights. The New Gen-V HP springs options mean as much as 50psi of base spring pressure!

Included in the box is the new Gen-V HP Wastegate with 35psi worth of pre-loaded springs (10psi Inner + 25psi outer), all inlet & outlet weld flanges, valve seat and clamps & the basic reference port fittings needed to get set up and running.

Features

• Takes all the advances in design and engineering from the Gen-V External Wastegate range to new heights
• Improved thermal management, water cooling options and even more gate flow than ever before
• Comes pre-installed with a 35psi spring combination (25psi outer + 10psi inner)
• Includes all inlet & outlet weld flanges, valve seat and clamps, and basic reference port fittings

Applications

• Universal

What's In The Box?

• 1 - Wastegate unit (pre-assembled with springs)
• 1 - SS316 Valve seat
• 1 - Inlet V-Band
• 1 - Inlet SS304 weld flange
• 1 - Outlet V-Band
• 1 - Outlet SS304 weld flange
• 1 - Collar tool (master/slave)
• 4 - 1/8” NPT plugs (1x installed)
• 2 - 1/8” NPT nipples
• 1 - Turbosmart Sticker
• Instructions

References

• Installation Instructions

Warranty

• Turbosmart 1-Year Limited Warranty
