Turbosmart Gen-V Twin Port IWG for Borg Warner EFR Turbos (TS-0620-4012)
Turbosmart*SEE DETAILS

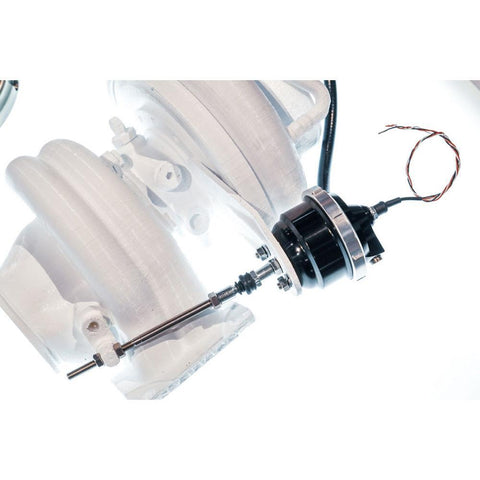

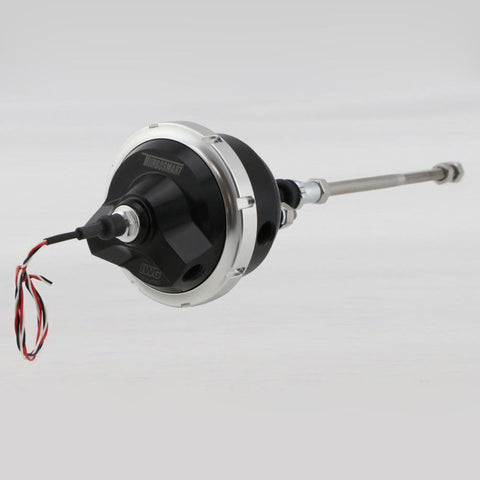

Gen-V Twin Port Internal Wastegate for Borg Warner EFR Turbos by Turbosmart
Turbosmart continues to expand the Gen-V Range, now targeting select applications in the IWG (Internal Wastegate) Actuator range. Designed specifically so all the parts you need for all EFR B1 & B2 frame turbochargers are included in the box, this actuator has the lot.
Recognising the limitations of a traditional actuator, Turbosmart has developed a proprietary joint & swivel system to provide complete linear actuation of the wastegate flap. This design also allows even greater seal at the base for true twin port boost control & does so with unparalleled actuator range.
A Hard Chromed Intermediate Rod & Nitronic valve bush has been introduced for greater seal and service life - As has Turbosmart’s Unique Hall Effect, non-contact Position sensor as an option, a first for aftermarket Internal Wastegate Actuators.
Also available with a sensor cap, so you can have full visibility of what is happening with your IWG.
Features
- Designed specifically with all the parts you need for EFR B1 & B2 frame turbochargers

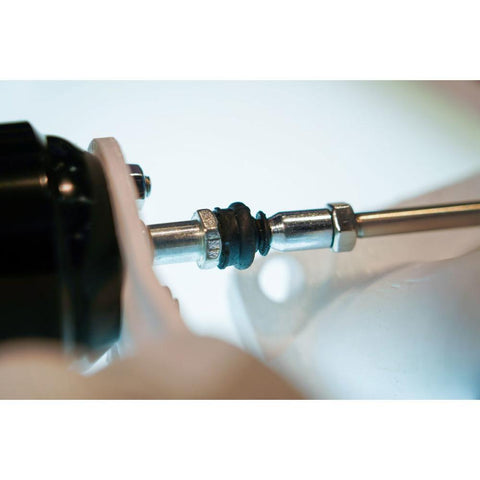

- Proprietary joint & swivel system to provide complete linear actuation of the wastegate flap
- Allows even greater seal at the base for true twin port boost control & does so with unparalleled actuator range
- Hard Chromed Intermediate Rod & Nitronic valve bush for greater seal and service life
- Optional sensor cap allows you to have full visibility of what is happening with your IWG
Applications
- Universal
What's In The Box?
- 1 - GenV Internal Wastegate Actuator
- 3 - Rods to suit BorgWarner EFR series turbos
- 3 - Springs: 2x inner, 1x middle, 1x outer (1x spring pre-installed)
- 2 - 1/8 NPT nipples
- 4 - 1/8 NPT blanking plugs (1x pre-installed)
- 1 - Turbosmart sticker
- 1 - Turbosmart GenV HE Sensor (OPTIONAL)
- 1 - C Spanner / IWG Actuator Collar Tool
References
Warranty
- Turbosmart 1-Year Limited Warranty
