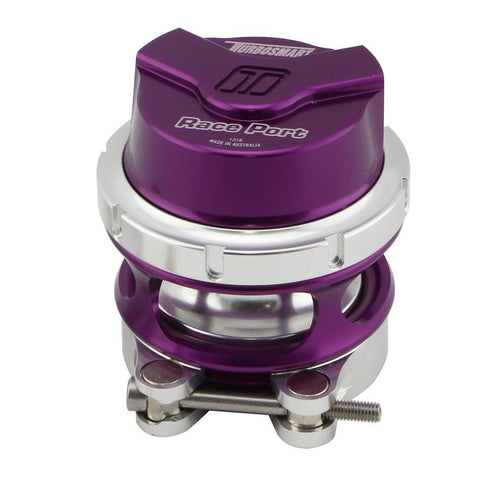

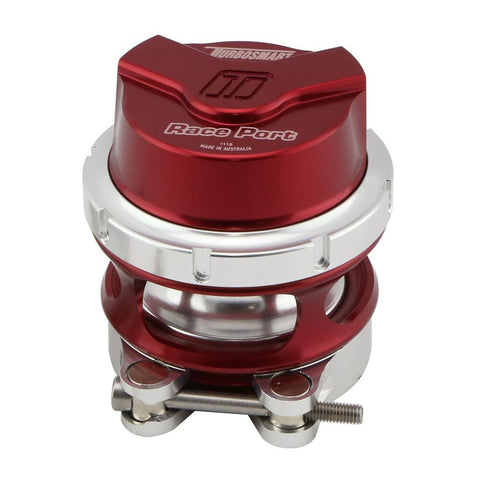

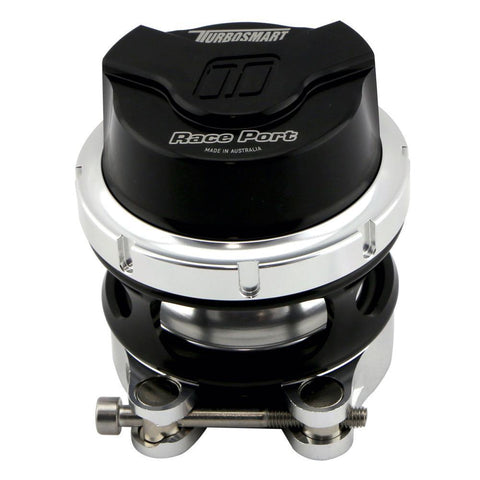

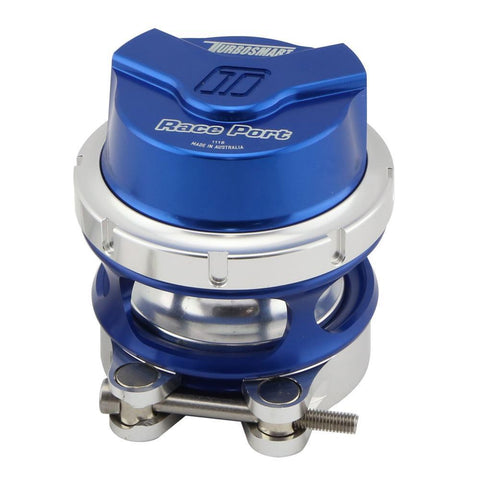

Turbosmart Gen-V Race Port BOV w/ Female Flange (TS-0204-114X)

Gen-V Race Port Blow Off Valve (Female Flange) by Turbosmart

Turbosmart Raceport BOV w/ Female (Tial) Flange - No Weld on Fitting Supplied. Will fit Tial Q Weld on Flanges.

The Race Port is famous for being an amazingly small and light BOV for turbocharged competition level engines. Featuring our unique collar design and internal flow structures, it is 50% lighter and 25% smaller than the competition while flowing 330 CFM - making it the highest flowing BOV of it’s type on the market.

Features

• Fits TiAL Q weld-on flanges
• Billet 6000 series aluminium construction
• Quick release v-band collar for ease of installation and removal
• 2.0" Inlet flows over 330 CFM
• MILSPEC hard anodized valve guide and stem
• Hi Temp Silicon Nomex diaphragm
• Positive sealing valve seat
• Twin 1/8"NPT pressure ports for convenient positioning
• Collar secured cap for quick spring changes
• 4inHg to 26inHg activation range
• Blue Spring Rated -18 to -14 InHg (installed)
• Valve position sensor option
• Designed, manufactured and validated in-house at Turbosmart HQ

Please Note: Ideal for circuit and drag vehicles and trucks.

Applications

• Universal

What's In The Box?

• 1 - Gen-V Race Port BOV
• 1 - V-Band Assembly
• Vacuum Fittings

References

• Fitting Instructions
• BOV Spring Chart

Warranty

• Turbosmart warrants its products to be free from defects in material and workmanship under normal use and if properly installed for a period of one year from date of purchase.
