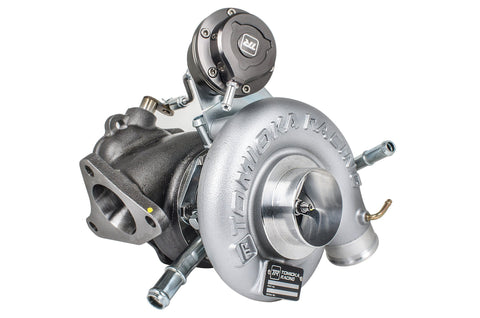

Tomioka GTX3076R BB Turbocharger - 550HP | Multiple Subaru Fitments (TR-TS1046)

GTX3076R Turbocharger for WRX/STi by Tomioka Racing

Introducing the GTX3076R! Featuring a ball-bearing cartridge, the GTX3076R allows for exceptionally crisp and strong throttle response paired with faster spooling.

Also packed with a billet compressor wheel, the overall weight of the wheel is lighter than other turbocharger wheels and allows for more room for air flow. Thanks to the billet construction of the unique TR blades, durability goes unmatched, keeping the GTX3076R running for years to come. New to the TR GTX2971R and GTX3076R turbochargers are point-milled blades, which allow for reaching in all the small places between the blades to create a surface that provides maximum flow from the wheel design.

In addition, the GTX3076R features a port and polished exhaust housing to minimize exhaust flow turbulence. This turbo is perfect for users who are looking for quick spooling and running moderately high boost pressures. All necessary fittings and gaskets are included in the box to make the installation process painless.

Features

• Ball-Bearing Design
• Lightweight Compressor Wheel w/ Point-Milled Blades
• Port and Polished Exhaust Housing
• Supports up to 550 Horse Power
• Includes Gaskets and Hardware

Specifications

• Flange Type: Standard Subaru 5-Bolts
• Compressor Wheel: 57mm In/81mm Ex
• Turbine Wheel: 59mm In/53.8mm Ex
• Actuator: 1.3 Bar (19psi)
• Turbine Housing: 10cm^2

Applications

• 2002 - 2007 Subaru Impreza WRX
• 2004 - 2014 Subaru Impreza WRX STi
• 2015 - 2021 Subaru WRX STI

Benefits

• Increased Power
• Strong Throttle Response
• Quicker Spool Times
• Durable and Long Lasting

What's In The Box?

• 1 - GTX3076R Turbocharger
• All Necessary Hardware
• Instructions/Manuals (if applicable)
• Warranty Information

Warranty

Tomioka Racing Limited Warranty
