Supertech Single Valve Spring Kit | Multiple Honda / Acura Fitments (SPRK-EC3027S-ZC)

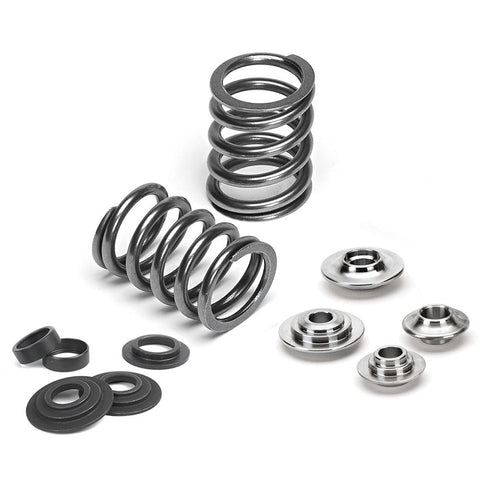

Honda D16A1/ZC DOHC Single Valve Spring Kit - Set of 16 by Supertech

Supertech Spring / Retainer kits are precision matched sets for a complete valvetrain overhaul. Developed for the performance enthusiast that wants the best the industry has to offer, Supertech Spring / Retainer kits are second to none in terms of performance, quality and value.

Features

• InnSpr.ID: Single
• Seat Pressure: 65 @ 33.8
• Open Pressure: 135 @ 10
• Max Lift: 11.6mm
• Coil Bind: 20.70mm
• Rate: 7
• Kit spring: SPR-EC3027S
• Kit spring qty: 16
• Retainer: RET-TS66/T1-ZC
• Retainer qty: 16
• Seat Locator: SEAT-TS/MA18-I
• InnSpr.OD: Single
• OutSpr.OD: 26.6mm
• OutSpr.ID: 19.60mm
• Seat Locator qty: 16

Benefits

• Underwent a gas nitriding process before shot peening for improved fatigue life

Applications

• 1986-1989 Acura Integra
• 1988-1995 Honda Civic
• 1988-1991 Honda CR-X

What's In The Box?

• 16 - Springs
• 16 - Retainers
• 16 - Seat Locators

Warranty

• Due to the nature of the application, these parts are sold without any express warranty or any implied warranty of merchantability, or fitness for a particular purpose.
