STM Transmission-Mount Engine Oil Catch Can | 2003-2006 Mitsubishi Evo 8/9 (STM-EVO89-CC-TM2)
STM*SEE DETAILS

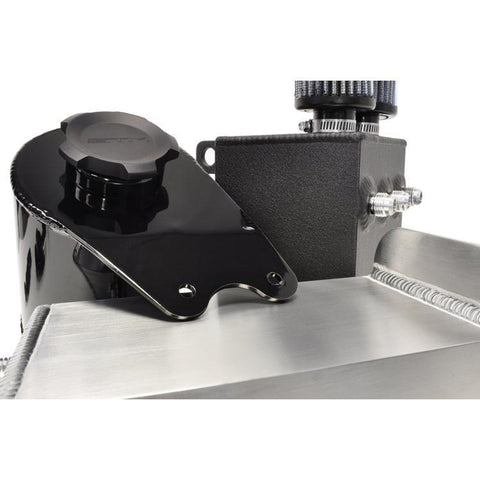

2003-2006 Mitsubishi Evo 8/9 Transmission-Mount Engine Oil Catch Can by STM

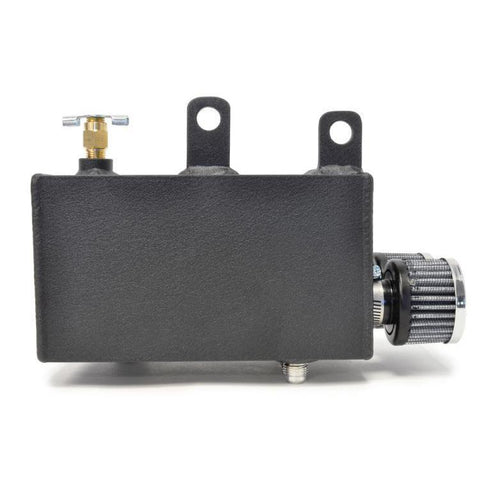

The STM Evo 7/8/9 transmission-mount engine oil catch can is designed to mount right to your 5-speed or 6-speed transmission and will work with USDM and JDM valve covers. The mounting tabs allow you to re-use the existing transmission bolts and place the h can right under the intake, out of the way with easy accessibility to the drain plug.
The standard 2-port routing will vent the catch can to the side and back of the valve cover. The optional 3-port is used to vent directly to the engine block. If you only need the 2-port setup, just keep the additional fittings and line in case you need more ventilation in the future with more power.

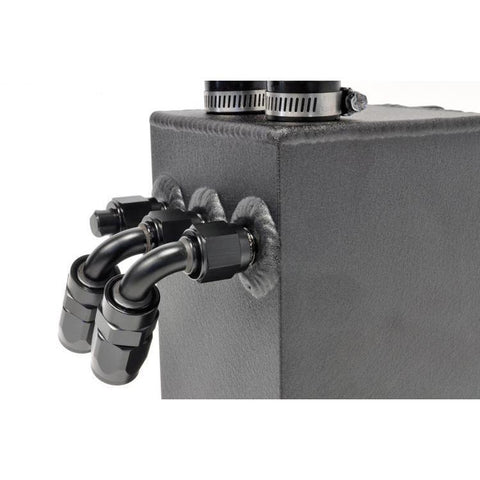

We include both side and rear STM valve cover fittings for a clean and direct install, high-qualitytings, andraided nylon hose. We include enough nylon braided lines to route the installation soft, to scratch other finishes. We suggest a touch of glue or epoxy when installing the STM Valve Cover Fittings. The larger -10AN fitting goes in the back side of the valve cover, deleting the PCV valve. The -6AN installs on the side as pictured. The catch can bolts directly to your transmission using existing bolts, be sure to select the correct transmission when ordering.
As of September 2022, this kit now includes all fittings and lines install or a port setup. As always, if you have any questions regarding the allationve us a call.
For 5-Speed or 6-Speed transmission. The mounting bracket on the catch can be slightly different for 5 or 6 speed. The 5-speed option is pictured. See the images for exactly which bolts are used to mount to the transmission.
For USDM or JDM covers. The rear PCV hole is a different size on the USDM and JDM valve covers. Please select the correct option so you receive the matching -10AN fitting.
Features
- Direct-Fit STM Valve Cover Fittings
- Tig Welded Lightweight Aluminum Body
- Durable Wrinkle Black Powder coat Finish
- High Quality Lines and Fittings
- Weighs 4.61 Pounds
- STM Products are Made in the USA!
- Lifetime Warranty on STM Parts to the original purchaser against manufacturing defects
Benefits
- Easy Access Brass Drain Fitting
- Mounts Cleanly to the Transmission
- Uses Existing Bolt Holes
Applications
- 2003-2006 Mitsubishi Evo 8/9

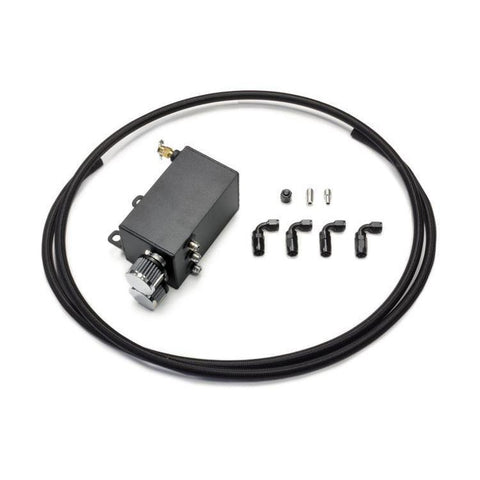

What's In The Box?
- 1 - Transmission-Mount Engine Oil Catch Can
Warranty
- STM's Standard Limited Warranty
