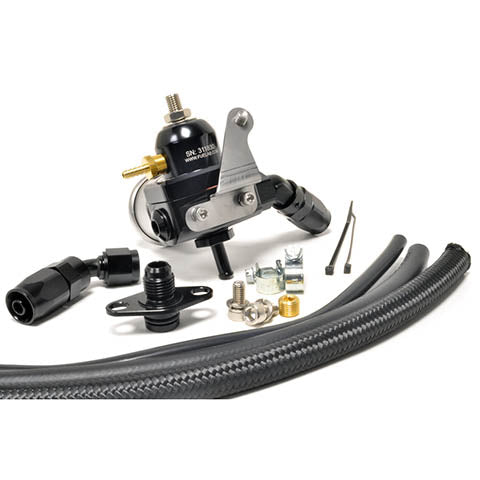

STM E85 Safe Fuel Pressure Regulator Kit | 2003-2006 Mitsubishi Evo 8/9 (EVO89-STD-FPRK)

2003-2006 Mitsubishi Evo 8/9 Fuel Pressure Regulator Kit by STM

The STM Evo 8/9 fuel pressure regulator kit includes all fittings, hardware, and line to go from your fuel rail to factory-style or -6AN outlet regulator and back to the return line. Includes the STM Evo fuel rail fitting for a direct fit to your fuel rail and the STM Evo mounting bracket for an easy install of the regulator to the firewall. The mini Fuelab regulator is available in your choice of 6 colors and of course, the whole kit is E85 safe!

Included are the miscellaneous clamps, zip ties, and stainless bolts you'll need to save a trip to the hardware store.

Features

• Includes every part needed to bolt in and go!
• Direct fit mounting bracket
• Direct fit fuel rail fitting
• Soft nylon braided hose will not scratch like stainless
• Silicone-filled fuel pressure gauge
• Fuelab regulator in your choice of 6 colors
• 100% E85 safe

Benefits

• The perfect solution for a complete fuel rail upgrade, especially when you need to run E85

Installation Notes:

Applications

• 2003-2006 Mitsubishi Evo 8/9

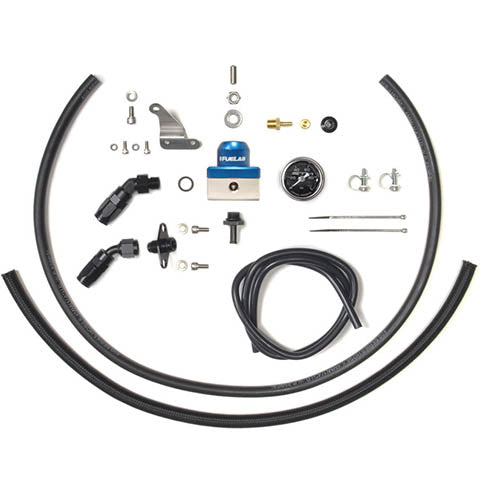

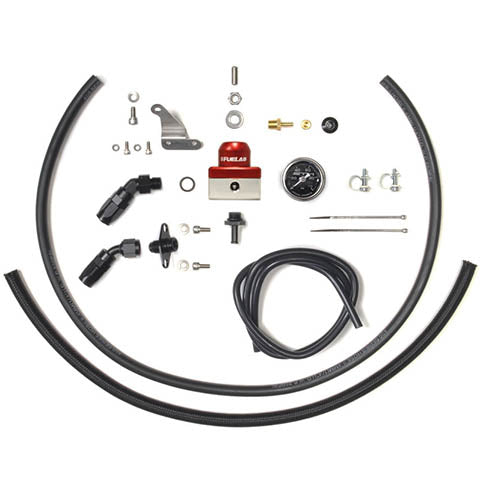

What's In The Box?

• 1 - Fuelab 6AN Mini Fuel Regulator (FL-51501-*)
• 1 - STM 6AN Barb Fitting (STM-6AN-7MM)
• 1 - STM Fuel Rail Fitting with Hardware (STM-2G-FRF-6S)
• 1 - STM Liquid-Filled Fuel Pressure Gauge (STM-UNI-FPG)
• 1 - STM Evo Mini FPR Mounting Bracket (STM-EVO89-FLMBRKT)
• 1 - 6AN ORB 45° Hose End Fitting (VIB-24402)
• 1 - 6AN 45° Hose End Fitting (VIB-21406)
• 1 - 6AN Port Plug (VIB-10992)
• 2 - High-Pressure Clamps 10-12mm (VIB-12233)
• 1 - 3 Feet -4AN Push-On Hose (VIB-16324)
• 1 - 2 Feet -6AN Nylon Hose (VIB-11956)
• 1 - 3 Feet 3mm Silicone Vacuum Line (FT-VB-012)
• 2 - Small 4" Zip Ties (FAS-63122)
• 1 - M6x12 Stainless Allen Bolt (M6x12 Bolt)
• 1 - M6 Stainless Lock Washer (M6 Lock)

Warranty

• STM's Limited Manufacturer's Warranty
