STM Coil-On-Plug Ignition w/ NGK GTR Coils | 2006 Mitsubishi Evo 9 (EVO9-COP-GTR)

Mitsubishi Evo 9 Coil-On-Plug Ignition System with NGK GTR Coils by STM

This STM Coil-On-Plug (COP) Ignition System for the Evo 9 features the R35 GTR NGK coils that can support up to 800 horsepower! If you are at the limits of your current ignition, this is the next step up!

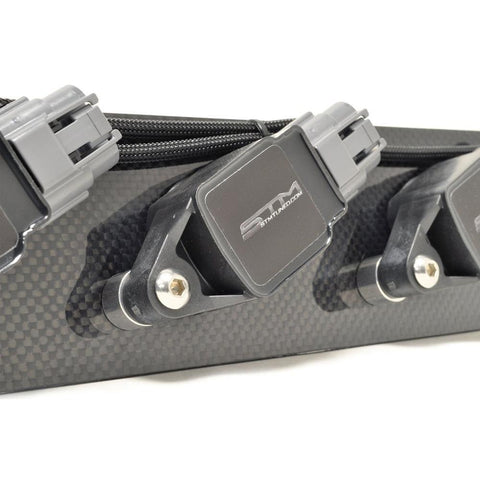

The STM Coil-On-Plug Ignition System is USA-Made with genuine GTR NGK ignition coils and features a waterproof harness constructed from military grade Tefzel Teflon wire, Stay-Clean wire sheathing and a thick, carbon fiber mounting plate with stainless and aluminum hardware.

This ignition is designed for modified builds from 400 to 800 HP. Designed for use with the stock ECU and is also compatible with AEM EMS V1 & V2, Haltech, MegaSquirt and the SunAuto Hyperforce. This system will NOT work with CDI boxes or the HKS DLI.

Features

• Handle 800+ HP
• Plug and Play
• Machine cut wiring
• All crimps done on crimping machine
• 4 coils instead of 2
• Custom, longer springs made in the USA
• Hotter spark
• Run more gap for better fuel burn
• Plugs last longer due to less fouling
• No wimpy spark plug wires to worry about
• Lightest system available
• No problem-prone CDI Boxes
• Non corrosive hardware will keep it looking great!
• Beautiful Carbon Fiber mounting plate
• Directions included
• 3 Year Warranty on Coils
• Lifetime on Workmanship (Harness, Mount Plate)

Please Note: Make sure you replace the included 15A fuse in the fuse box on the driver side under the dash. The ignition puts out more power than the factory 10A fuse can handle and it will eventually pop and your car will not start if it does. It is located from the driver seat by your left knee in the interior fuse box, top left, red fuse, #1 position.

Applications

• 2006 Mitsubishi Evo 9

Benefits

• Can greatly reduce or eliminate issues with partial throttle bucking
• Better idle quality
• Accelerates like a new car
• Run more boost
• Better fuel burn
• Plugs last longer
• Plug changes take minutes less
• Increased gas mileage
• Looks great!

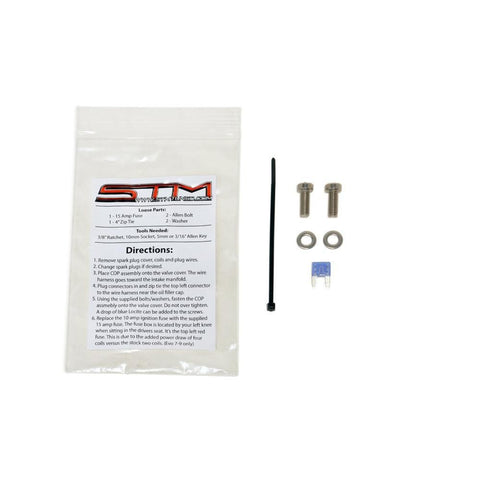

What's In The Box?

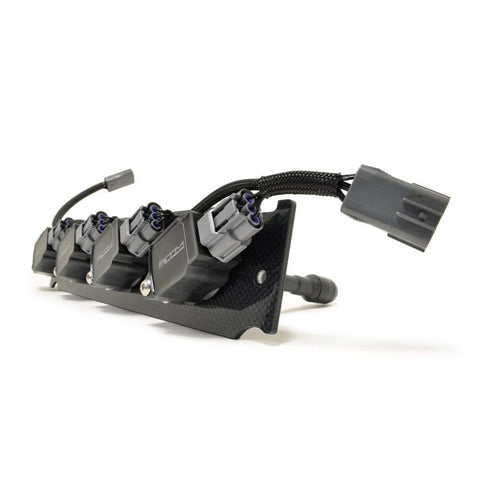

• 1 - Assembled COP Ignition
• 1 - Assembled Wire Harness
• 1 - Zip Tie
• 2 - Stainless Bolts
• 2 - Stainless Washers
• 1 - 15 AMP Fuse

Warranty

• 3 Year Warranty on Coils
• Lifetime on Workmanship (Harness, Mount Plate)
