SPL Rear Toe Arms w/ Eccentric Lockout | 2016-2021 Mazda MX-5 Miata (SPL RTAEL ND)

Aluminum Rear Toe Arms with Rear Toe Eccentric Bolt Delete Kit for 2016-2021 Mazda MX-5 Miata by SPL Pro Suspension

SPL Parts Rear Toe Arms (RTA) for the 2016-2021 Mazda MX-5 Miata increase stability and response by eliminating bushing deflection while providing an increased range of rear toe adjustment, necessary for lowered cars or for performance alignments.

Even small changes to ride height and camber will affect toe settings, and the wide range of adjustment allows you to maximize grip on a track car and extend tire life on a street car. The factory rear toe arms utilize an eccentric bolt and washer for adjustment and lack the precision and range that SPL Parts rear toe links offer.

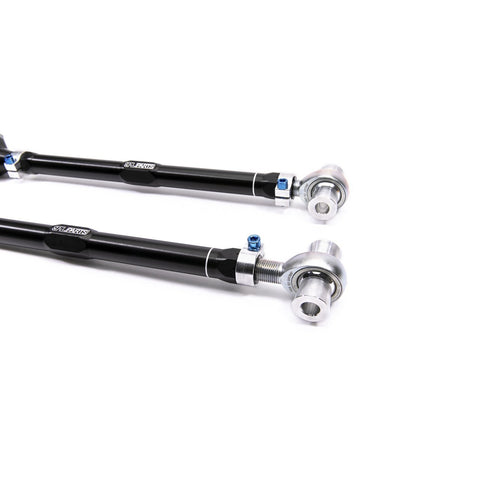

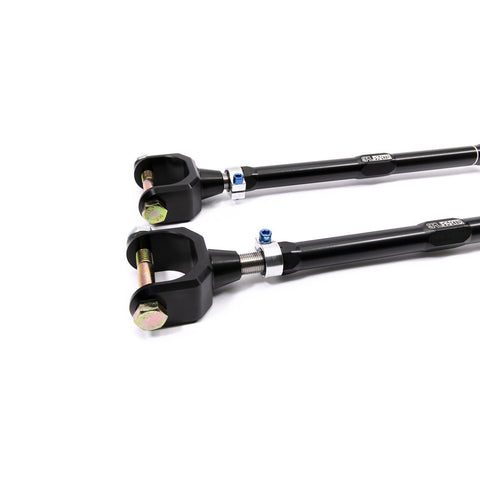

Black Anodized and gun drilled 2024 Aluminum main links along with our 360 degree Rotating Clamp design allow for quick and precise adjustment. The Rotating Clamps are tightened with Blue Anodized Titanium Socket Head Cap Screws for easy to access adjustment, and shaves even more unsprung weight, without compromising strength.

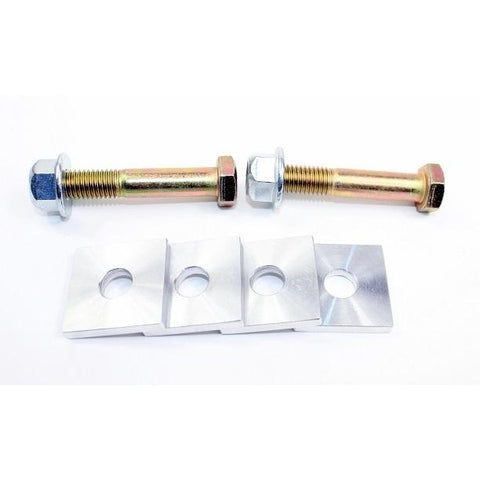

The stock eccentric bolts provided by Mazda for small camber/toe adjustments tend to slip under high cornering loads, causing changes to the rear alignment. Our SPL Parts Eccentric Lockout (EL) kit eliminate the stock eccentric bolts to keep your rear alignment where you set it. Our lockout plates are CNC machined from 6061-T6 Billet Aluminum and supplied with Zinc plated grade 10.9 hardware for absolutely zero-slip.

FK Spherical Bearings and Rod Ends are manufactured in Connecticut and utilize a Teflon liner to provide quiet operation, lower friction, smooth articulation, and eliminates bushing deflection under load. The liner is also self-lubricating and self-cleaning, offering robust reliability for street and track use. The PTFE liner is chemically bonded to the inner diameter of the race, and offers a very high load carrying capacity that has greatly increased dynamic wear characteristics. The operating temperature of the liner ranges from -65º to 325ºF, offering robust reliability.

Features

• Black Anodized Gun Drilled 2024 Aluminum Links
• 360 Degree Rotating Clamp Design
• Teflon Lined FK Spherical Bearings & Rod Ends
• CNC Machined 6061-T6 Aluminum Lockout Plates

• Includes Zinc Plated Grade 10.9 Hardware
• Sold as a Pair

Benefits

• Improves Stability and Response
• Eliminates Bushing Deflection

• Increases Range of Rear Toe Adjustment
• Superior Strength and Durability

Applications

• 2016 - 2021 Mazda MX-5 Miata ND

What's In The Box?

• 2 - Rear Toe Arms
• 1 - Eccentric Lockout Kit

• Socket Head Cap SCrews

Warranty

• Manufacturer Limited Warranty
