SPL Titanium Rear Lower Camber Arms | 2013-2021 BRZ/FR-S/86 (RLL FRS)
SPL Pro Suspension*SEE DETAILS
Subaru BRZ / Scion FR-S / Toyota 86 Rear Lower Camber Arms by SPL

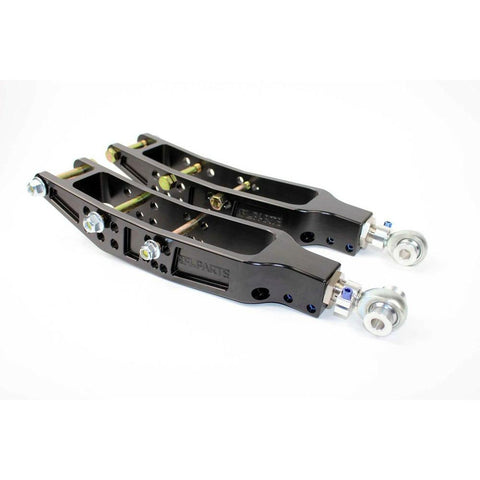

SPL Parts Titanium Series adjustable Rear Lower Camber Arms (RLL) increase stability and response by eliminating bushing deflection and offer a wide range of camber adjustment.

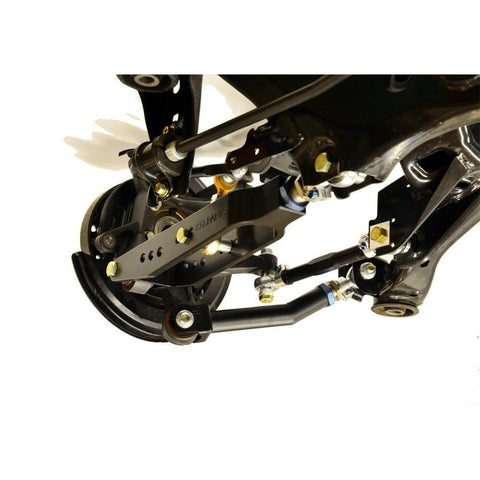

These arms are designed for use in high performance street and race vehicles. Without factory camber adjustment, a lowered FR-S/BRZ requires an adjustable control arm to achieve your desired alignment settings to maximize tire wear and handling. Three position mounting holes for sway bar endlinks and shock mounting allows you to alter geometry to prevent endlink binding, quickly adjust motion ratios, and resulting spring and sway bar effectiveness. Simply put, it’s like having adjustable spring rates without a spring replacement.
Using FEA (Finite Element Analysis) our CNC milled 6061-T6 Billet Aluminum Arms are designed to exceed factory strength and durability. Our exclusive Hybrid Adjuster is comprised of electroless nickel plated 4130 Chromoly. SPL Blue Anodized Titanium hardware and 6061-T6 Aluminum Clamps help reduce weight and prohibit corrosion while offering quick and easy adjustment.
Features
- Lightweight Aluminum and Titanium construction

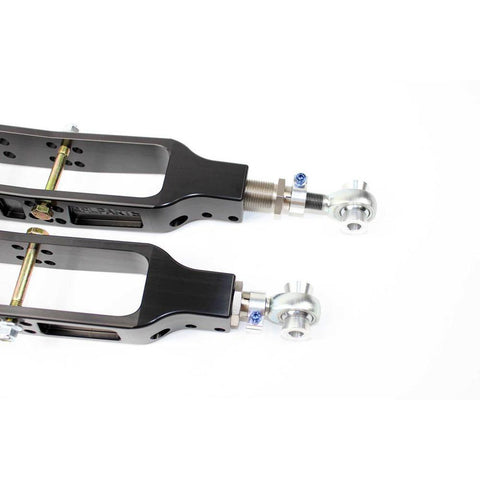

- Electroless nickel plated 4130 Chromoly Hybrid Adjuster for quick adjustment
- Computer Aided Design with the aid of Finite Element Analysis

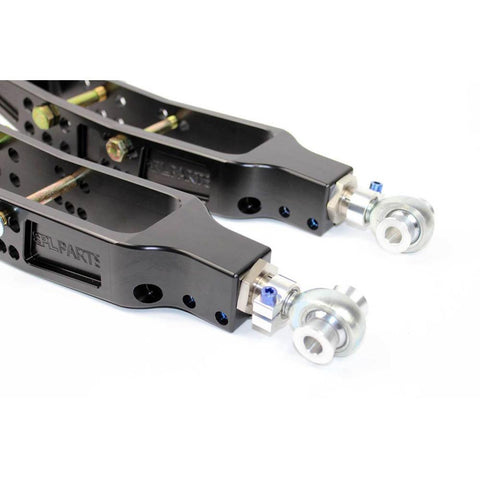

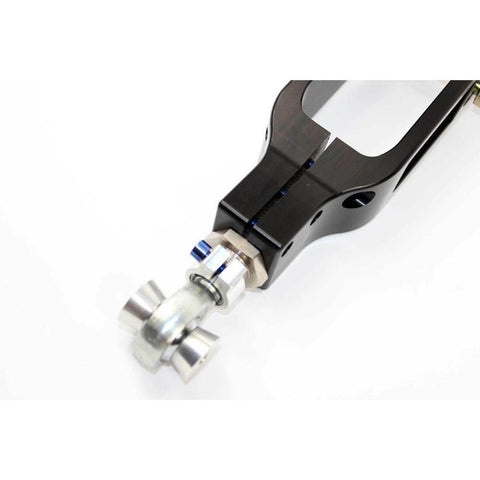

- Low friction 3-piece Teflon lined FK Heim Joints/Rod Ends made in CT, USA

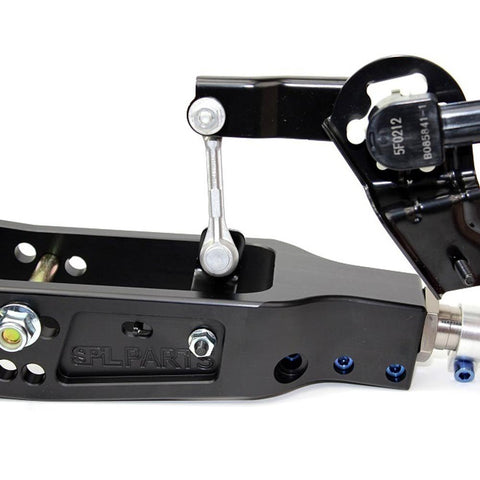

- Multiple mounting points for shock and sway bar provides motion ratio adjustment
- CAD plated grade 10.9 hardware
Benefits
- Exceeds factory strength and durability
- Increases stability and response
Please Note: Sold as a pair.
Applications
- 2013 - 2021 Subaru BRZ
- 2017 - 2021 Toyota 86
- 2013 - 2016 Scion FR-S
What's In The Box?
- 2 - Titanium Rear Lower Camber Arms
References
Warranty
- Manufacturer Standard Warranty
