SpeedFactory Racing/BME Honda B-Series Outlaw Pistons | 1994-2001 Acura Integra, 1999-2000 Honda Civic Si, and 1997-2000 Honda Civic Type-R (SF-BME-218400)

1994-2001 Acura Integra, 1999-2000 Honda Civic Si, and 1997-2000 Honda Civic Type-R Outlaw Pistons by SpeedFactory

This is NOT just another piston labeled “Outlaw” with a couple of upgraded features. These were actually developed in our B-Series Outlaw car and proven at 90+psi of boost + nitrous = 2000+hp and 215+mph in the 1/4 mile.

Available for B-Series applications in 84mm, 84.5mm, and 85mm Bore sizes with 21mm & 22mm wrist pin size only.

More power = more heat. These pistons will cope with that better than anything else available. They aren’t meant to be the flashiest, lightest, or trickiest looking pistons – they are designed to be reliable at insane power levels. Period.

Years of pushing the absolute limits of these engines and our partnership with Bill Miller Engineering providing expert failure analysis and consulting throughout has led to this piston design which we are now making available to the public.

These are designed for max-effort turbocharged race engines making 1300+whp with an appropriate ~9.5:1 compression ratio for reliability.

Features

• High strength 2618-T61 aluminum forgings
• Superior ring groove finish & runout, less than 0.0002” around the entire piston
• Lateral Gas Ports - improved ring seal
• Anti-Detonation Groove
• Full Round skirt rib maintains piston roundness, superior to piston skirt struts used in other “Outlaw” piston designs
• Ultra Low ring pack position - protects the rings from heat
• Oil Squirter Notch – allows additional piston cooling via oil squirters
• Pin Fit – precision honed for exact clearance
• Hand Finished & Deburred
• CNC Head Mill, Window Mill, & Spin Boss – to reduce weight
• Heavy Duty 1.5 x 1.5 x 3.0 Ring Pack – handles more heat
• Custom Pin Button Set
• Double Bottom Splash Oilers – suits high rpm & severe duty applications
• 22mm Heavy Duty .225” Wall 9310 Tool Steel Wrist Pins to handle extreme loads
• -8.0cc dish volume, 1.180” CH (approx. 9.5:1 CR in typical LS/VTEC combos)

Benefits

• Significantly Improved Engine Reliability and Horsepower Capacity

Applications

• 1989-1991 Honda CRX SiR
• 1989-1994 Honda Civic SiR
• 1992–1994 Honda Civic SiRII
• 1996–1998 Honda Civic SiR
• 1996–1998 Honda Civic SiRI
• 1997–2000 Honda Civic Type R
• 1999-2000 Honda Civic Si
• 1994-1997 Honda Del Sol
• 1992–2001 Acura Integra GS-R
• 1990–2001 Acura Integra RS
• 1990–2001 Acura Integra LS
• 1990–2001 Acura Integra GS
• 2000-2001 Acura Integra Type R
• 1996-2001 Honda CR-V

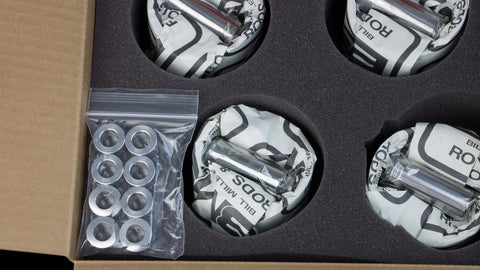

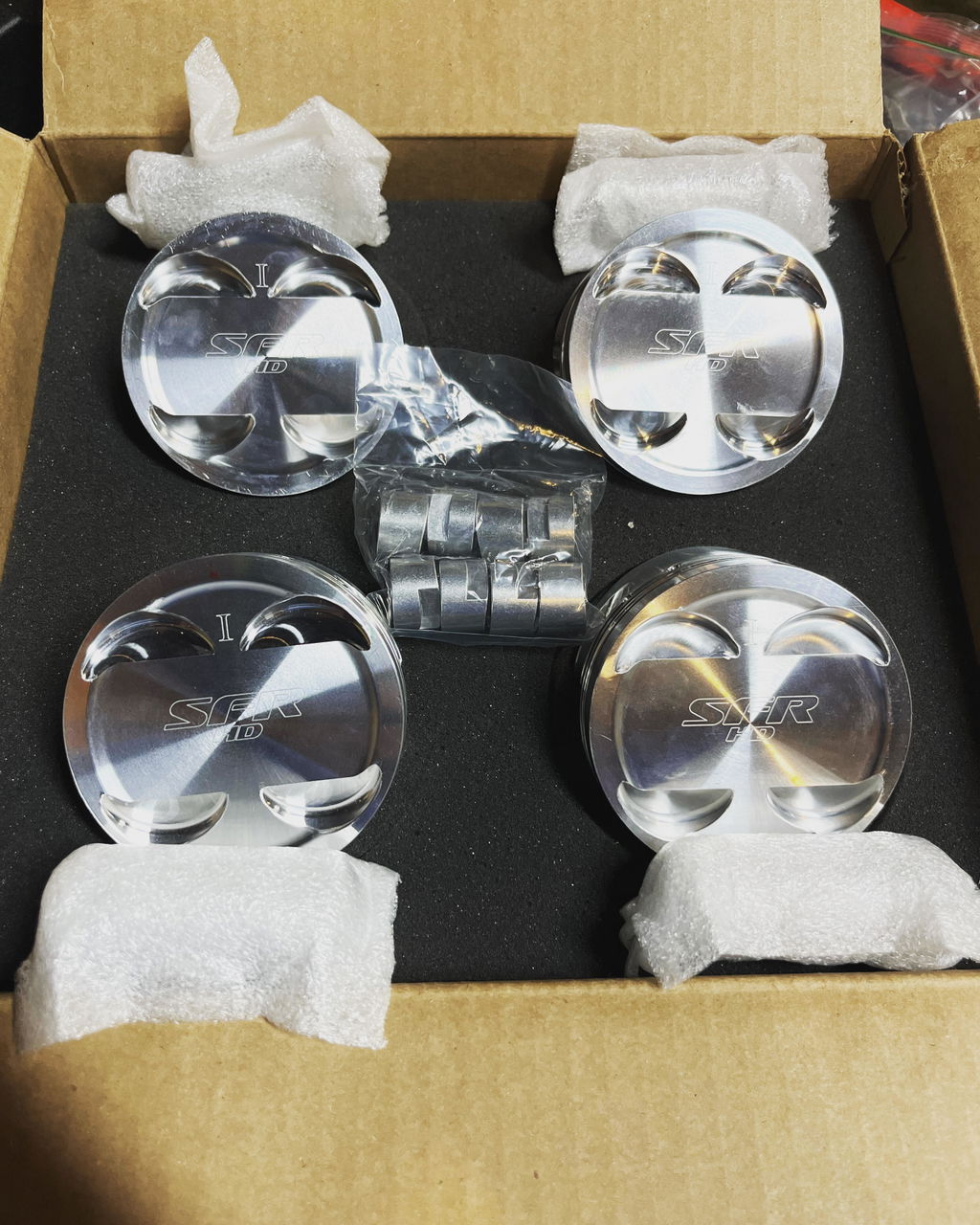

What's In The Box?

• 4 - Pistons

Warranty

• SpeedFactory's Standard Limited Warranty
