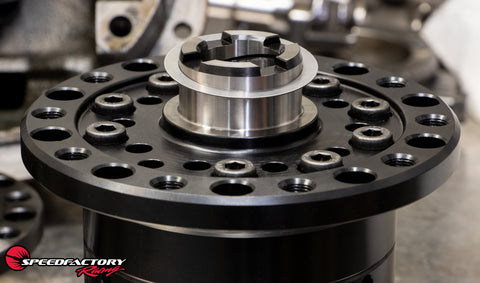

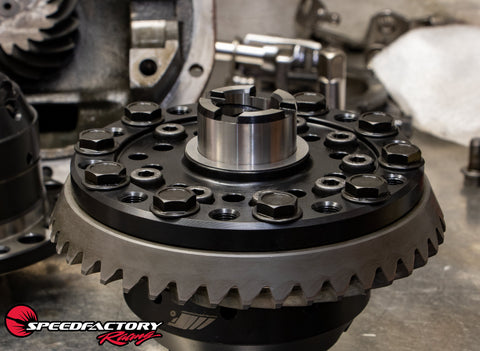

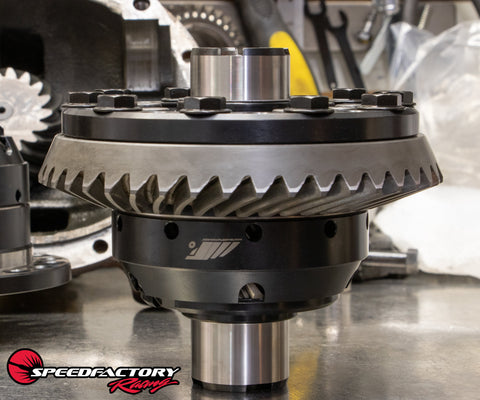

SpeedFactory Racing AWD Wagovan Rear Differential Install Kit for MFactory D16 40mm LSD (SF-05-200)

AWD Wagovan Rear Differential Install Kit for MFactory D16 40mm LSD by SpeedFactory

We are proud to introduce our pain-free installation kit for the MFactory D16 40mm LSD into the Wagovan RT4WD rear ends for those of you that appreciate the attention to detail and want to do things the right way.

This is by far the easiest and most cost-effective drop-in LSD solution when paired with our bolt + shim installation kit!

You will save hours of tedious labor & frustration and retain the critical proper factory set backlash & gear mesh pattern. Forget about machining bolts & bolt holes or machining your LSD flange, fussing with repeated test fitting, and attempting to source or make the proper shims.

Pair our installation kit with an MFactory LSD for the ultimate ease of use & 7-second proven performance in our own race cars at a great price!

Please Note: Order Honda PN# 91006-PX5-008 if you need new differential bearings (not included). These are the correct 40x68x22 NTN bearings that are needed for the Wagovan RT4WD rear differential. This kit is intended for installing an LSD into a good-condition rear end. Always verify your clearances as good standard building practice. If you are performing a full rear-end rebuild then you will still need to set and check all tolerances, gear mesh pattern, and backlash.

Features

• Constructed from high-quality materials

Applications

• Universal

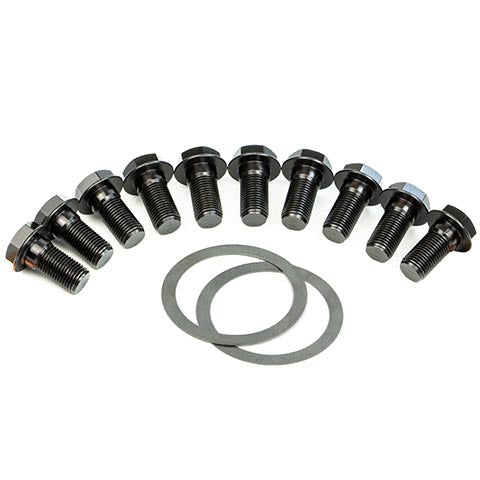

What's In The Box?

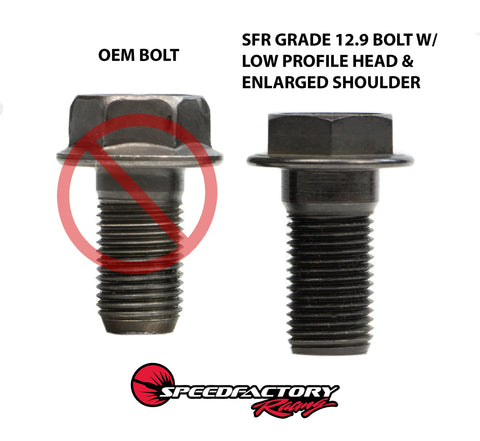

• 10 - Black Oxide Coated Grade 12.9 Bolts
• 2 - Precision Stainless Steel shims

Warranty

• SpeedFactory's Standard Limited Warranty
