SpeedFactory Racing AWD B-Series Billet Transfer Case | 1990-2001 Acura Integra, 1999-2000 Honda Civic Si, and 1997-2000 Honda Civic Type-R (SF-05-610)

1990-2001 Acura Integra, 1999-2000 Honda Civic Si, and 1997-2000 Honda Civic Type-R AWD B-Series Billet Transfer Case by SpeedFactory

The SpeedFactory Racing AWD B-Series Billet Transfer Case is your ultimate choice - precise, accurate, & pain-free to build, unlike others. Proven in our 6-second 2000hp B-Series OUTLAWD drag car.

Unmatched quality & unrivaled performance, a truly functional work of art as noted by all the top teams and shops that have made this housing the foundation of choice for their AWD B-Series racing transfer cases.

You must have a '99-'01 "PEP" stamped omen transfer case to start building from. Earlier "PBX" stamped transfer cases are not compatible. Requires assembly and shimming to OEM specifications. It is HIGHLY recommended that you have the assembly & installation performed by a reputable specialist that is experienced in building these transfer cases. Compatible with all currently known B-Series transfer drive & hypoid gear sets.

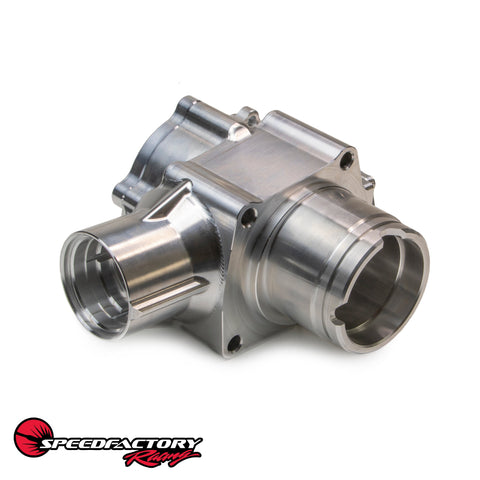

Machined from a Solid 7075-T6 Aluminum Billet, our design is massively stronger than the weak cast OEM case and ~85% stronger than the typically used 6061-T6. You won't be breaking this housing!

Features

• High strength 7075-T6 billet aluminum body

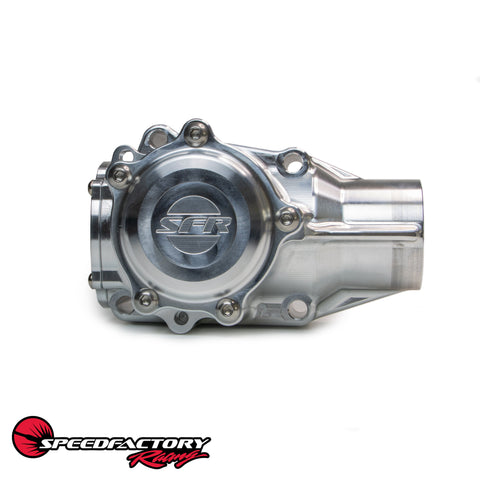

• The bearing cap is also 7075-T6 with an ultra-thick under-bolt mounting flange and is the strongest available. This keeps the hypoid gears in position better than others - hypoid separation under power is a well-known B-Series transfer case design issue that contributes to breakage

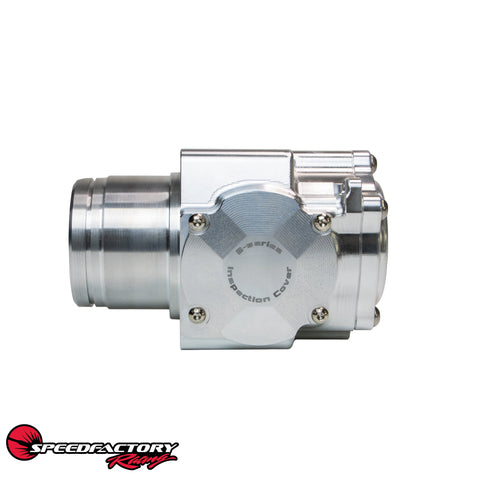

• Large inspection cover makes assembly and inspection a breeze.

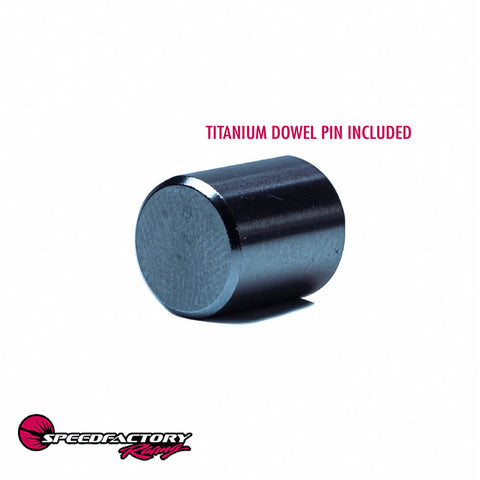

• Includes solid titanium dowel pin which eliminates the usual OEM dowel failures
• No more dealing with multiple different length mounting bolts like OEM - supplied with x4 identical mounting bolts that precisely locate into machined pockets on the transfer case body to stop case rotation under hard launches and eliminate the need for a transfer case to block brace.
• These unique design elements are the result of cumulative real-world experience via our engineering, transmission building, and race teams to deliver the ultimate combination of ease of use and strength - you are getting a product that is track tested & proven to deliver ease of use and strength under the most extreme conditions in the World's Fastest B-Series AWD to drag cars.

Applications

• 1989-1991 Honda CRX SiR
• 1989-1994 Honda Civic SiR
• 1992–1994 Honda Civic SiRII
• 1996–1998 Honda Civic SiR
• 1996–1998 Honda Civic SiRI
• 1997–2000 Honda Civic Type R
• 1999-2000 Honda Civic Si
• 1994-1997 Honda Del Sol
• 1992–2001 Acura Integra GS-R
• 1990–2001 Acura Integra RS
• 1990–2001 Acura Integra LS
• 1990–2001 Acura Integra GS
• 2000-2001 Acura Integra Type R
• 1996-2001 Honda CR-V

What's In The Box?

• 1 - 7075-T6 Billet Housing with inspection cover and bearing cap
• 1 - Output shaft seal
• 1 - SFR Titanium dowel pin
• 1 - Grade 10.9 bolt kit
• All needed O-rings for 4-bolt inspection cover, 5-bolt bearing cap, and main housing

Warranty

• SpeedFactory's Standard Limited Warranty
