SpeedFactory Racing Forward Facing B-Series Outlaw Turbo Manifold | 1994-2001 Acura Integra, and 1999-2000 Honda Civic Si (SF-04-051)

1994-2001 Acura Integra, and 1999-2000 Honda Civic Si Forward Facing B-Series Outlaw Turbo Manifold by SpeedFactory Racing

The SpeedFactory B-Series Forward Facing Outlaw Turbo Manifold has set and broken several world records on our own B-Series powered race cars. This manifold is for EXTREMELY high powered applications where maximum torque and horsepower are desired on high-revving racing engines fitted with larger T4 turbochargers.

Our custom, ultra-long merge collectors create a turbulent-free area for the exhaust gas to enter the turbine housing in even pulses at high velocities- making it the ultimate drag race manifold. Precise boost control is enabled by the properly merged and truly divided 60MM wastegate flange, allowing for large amounts of wastegate exhaust flow and better traction.

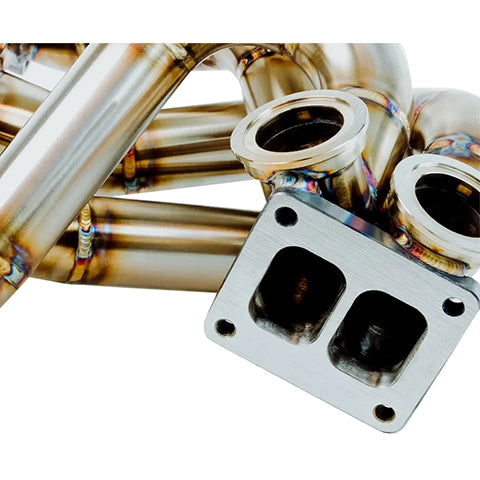

Our Forward Facing manifold is constructed from high-quality 1.5” Schedule 40 polished stainless steel, and is TIG-Welded and back purged to ensure that you are receiving the highest quality product possible. Our cylinder head and turbine inlet flanges are CNC machined from ½” plate 1018 Steel and all mating surfaces are machined flat ensuring a perfect seal.

Features

• Available with either T4 open or T4 divided style turbine inlet (with correct cylinder pairing)
• Available with Tial's 60mm Wastegate Flange or TurboSmart's Power Gate 60mm Wastegate Flange

Applications

• 1989-1991 Honda CRX SiR
• 1989-1994 Honda Civic SiR
• 1992–1994 Honda Civic SiRII
• 1996–1998 Honda Civic SiR
• 1996–1998 Honda Civic SiRI
• 1997–2000 Honda Civic Type R
• 1999-2000 Honda Civic Si
• 1994-1997 Honda Del Sol
• 1992–2001 Acura Integra GS-R
• 1990–2001 Acura Integra RS
• 1990–2001 Acura Integra LS
• 1990–2001 Acura Integra GS
• 2000-2001 Acura Integra Type R
• 1996-2001 Honda CR-V

What's In The Box?

• 1 - Turbo Manifold

Warranty

• SpeedFactory's Standard Limited Warranty
