S480 T6 Airwerks Turbo By BorgWarner (177287)

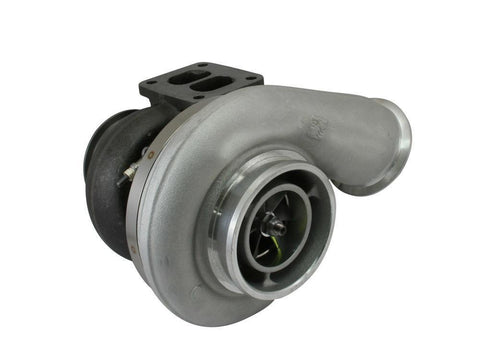

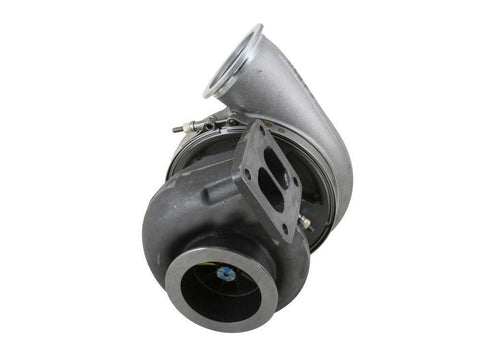

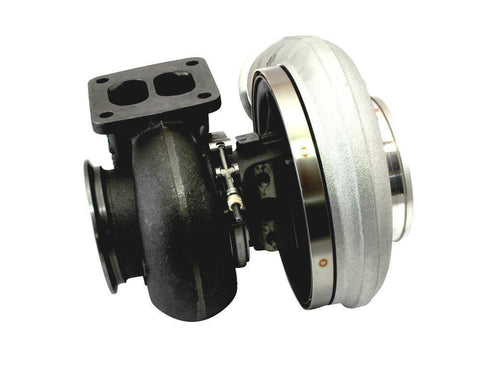

BorgWarner 80/96 S400SX4-80 Turbocharger

Airwerks turbochargers are designed for the competitive motorsports market as well as drivers retrofitting a naturally aspirated engine or looking for a little more performance from a factory turbocharged car.

Engineered specifically for drag racing, pulling and road racing, AirWerks turbochargers have earned a reputation as robust, brute-force induction systems. Looking for a no-frills replacement? Want to upgrade your turbocharger? Working with limited space?

BorgWarner's AirWerks turbochargers are the perfect go-to product for many applications. With a twin hydrodynamic journal bearing design, AirWerks turbochargers feature an effective high-pressure ratio compressor stage, extended-tip technology and a high-efficiency turbine stage. The configuration provides ultra-fast response and more than 70 PSI of boost.

Features

• Twin Scroll Turbine Housings
• Straight Compressor Discharge
• Twin Hydrodynamic Journal Bearings
• Compressor Cover Recirculation Grooves
• Extended Tip Technology Compressor Wheel
• T6 Bolt Pattern Volute twin Flow Inlet Connection
• Adjustable Compressor and Turbine Housing Orientation

Specifications

• 750-1250HP
• 80.30mm Comp. Wheel Inducer Dia.
• 109.73mm Comp. Wheel O.D.
• 95.70mm Turbine Wheel O.D.
• Turbine Housing Options: 1.15, 1.32, 1.45, 1.58

Also Known As

• S400SX4, S400SX4-80 80/96, 80-96, 110/96, 110-96, 80mm

What's in the Box?

• 1 T6 80/96 S400SX4-80 Turbocharger

Warranty

• 1-Year Manufacturer's Warranty
