S475 T4 S400SX3 Airwerks Turbo By BorgWarner (177101)

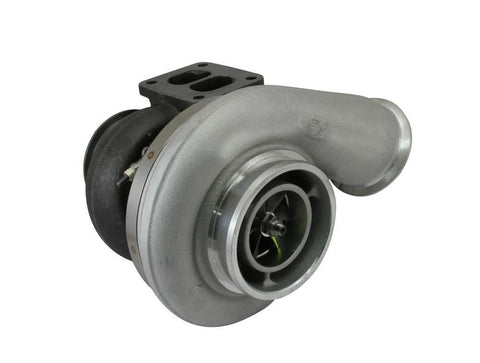

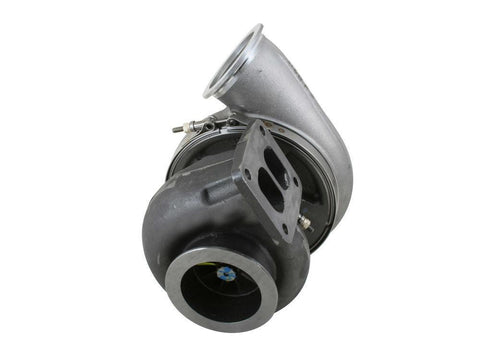

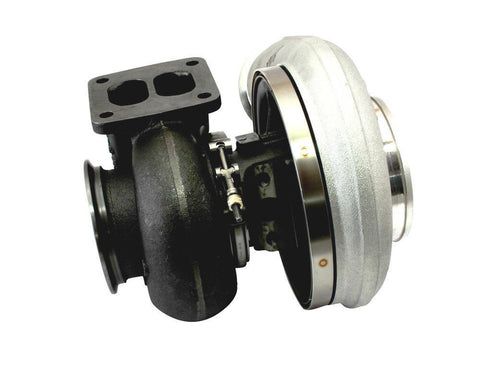

BorgWarner 75/74 S400SX3-75 Turbocharger

Airwerks turbochargers are designed for the competitive motorsports market as well as drivers retrofitting a naturally aspirated engine or looking for a little more performance from a factory turbocharged car.

Engineered specifically for drag racing, pulling and road racing, AirWerks turbochargers have earned a reputation as robust, brute-force induction systems. Looking for a no-frills replacement? Want to upgrade your turbocharger? Working with limited space?

BorgWarner's AirWerks turbochargers are the perfect go-to product for many applications. With a twin hydrodynamic journal bearing design, AirWerks turbochargers feature an effective high-pressure ratio compressor stage, extended-tip technology and a high-efficiency turbine stage. The configuration provides ultra-fast response and more than 70 PSI of boost.

Features

• Twin Scroll Turbine Housings
• Straight Compressor Discharge
• Twin Hydrodynamic Journal Bearings
• Compressor Cover Recirculation Grooves
• Extended Tip Technology Compressor Wheel
• T4 Bolt Pattern Volute twin Flow Inlet Connection
• Adjustable Compressor and Turbine Housing Orientation

Specifications

• 500-1050HP
• 74.56mm Comp. Wheel Inducer Dia.
• 100.17mm Comp. Wheel O.D.
• 83.47mm Turbine Wheel O.D.
• Turbine Housing Options: 0.90, 1.00, 1.10, 1.25

Also Known As

• S400SX3, S400SX3-75 75/74, 71-75, 100/83, 100-83, 75mm

What's in the Box?

• 1 T4 75/74 S400SX3-75 Turbocharger

Warranty

• 1-Year Manufacturer's Warranty
