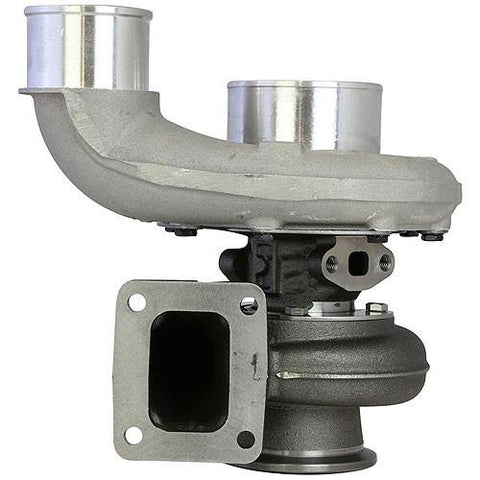

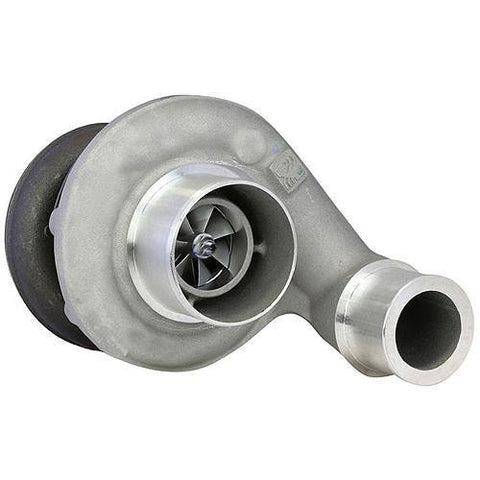

S366 T4 Airwerks Turbo By BorgWarner (177284)

Borg Warner S366 Turbo – High-Performance Turbo

The Borg Warner S366 significantly improves performance and has been proven to be a critical component of the internal combustion engine. The Borg Warner engineers have created a beautiful turbo that’s great for cars with high-end engines that have high flow requirements and need to use low-RPM torque.

What is a S366 Turbo?

S366 series Turbocharger units are one of the most popular methods for increasing engine power. They work by pushing more air into the combustion chamber, which in turn increases fuel flow and pressure. This pushes out more horsepower than that which came from the engine originally–the ultimate best choice in turbos.

S366 Turbo Features

• T4 Inlet w/ Optional 90° Outlet
• Twin hydrodynamic journal bearings
• Compressor cover recirculation grooves
• Extended tip technology compressor wheel
• Adjustable compressor and turbine housing/turbine housings orientation
• Turbine wheel aerodynamics
• Flexible compressor cover outlet options

S366 Turbo Applications

• Universal

Specifications

• Borg Warner Turbos have smaller overall dimensions, but a higher impact on the track.
• 320-800HP
• >66.11mm Comp. Wheel Inducer Dia.
• 91.44mm Comp. Wheel O.D.
• 79.76mm Turbine Wheel O.D.
• Turbine Housing Options: 0.88, 0.91, 1.00

Also Known As

• S300SX, S300SX-66 66/73, 66-73, 91/80, 91-80, 66mm

What's in the Box?

• Borg Warner S366 Turbo

Warranty

• 1 Year Manufacturer's Warranty
