S360 T4 Airwerks Turbo By BorgWarner (177272/80)

BorgWarner 60/68 S300SX3-60 Turbocharger

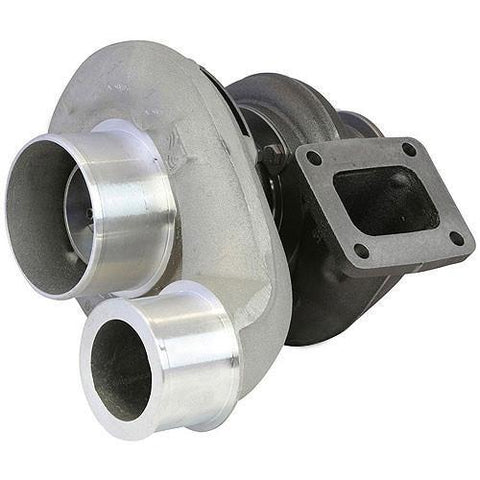

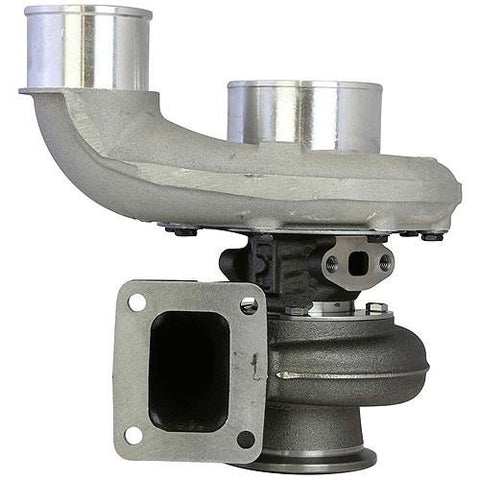

This turbo has flow capabilities ranging from 320 to 800 HP. This turbo utilizes the BorgWarner / AirWerks "S" generation compressor wheel with Extended Tip Technology for the ultimate in aerodynamics, low RPM spool-up & high RPM horsepower output. This turbo is the Type B (90 degree comp outlet) with the T4 Undivided .88 A/R turbine housing by default & 90 degree charge pipe outlet, as seen in the picture.

Features

• 320-800HP
• T4 Inlet w/ Optional 90° Outlet
• Twin Scroll Turbine Housings
• 60.03mm inducer compressor wheel
• Straight Compressor Discharge
• Turbine Housing Options: 0.88, .91, 1.00
• Twin Hydrodynamic Journal Bearings
• Compressor Cover Recirculation Grooves
• Extended Tip Technology Compressor Wheel
• Adjustable Compressor and Turbine Housing Orientation

Specifications

• 400-1300HP
• 72mm Comp. Wheel Inducer Dia.
• 96.00mm Comp. Wheel O.D.
• 87.37mm Turbine Wheel O.D.
• Turbine Housing Options: 0.90, 1.00, 1.10, 1.25

Also Known As

• S300SX3, S300SX3-60 60/68, 60-68, 83/76, 83-76, 60mm

What's in the Box?

• 1 T4 60/68 S300SX3 Turbocharger

Warranty

• 1-Year Manufacturer's Warranty
