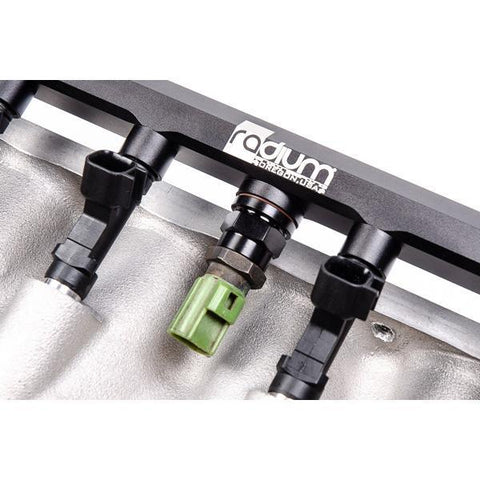

Radium Top Feed Conversion Primary Fuel Rail | Mazda 20B-REW (20-0464)

Mazda 20B-REW Primary Top Feed Conversion Fuel Rail by Radium Engineering

The Radium Engineering high flow primary fuel rail is for the 20B-REW rotary engine originally found in the 1990-1995 Mazda/Eunos Cosmo. The aluminum fuel rail is anodized black for compatibility with all popular fuel types including E85. Manufactured with a large internal bore, the fuel rail can support all necessary engine power requirements.

Features three 8AN ORB ports. The extra center port allows additional fuel system accessories such as the OEM fuel temperature sensor, a pressure transducer, Radium fuel pulse damper, etc.

Insulating phenolic spacers and washers are included with stainless steel hardware to prevent thermal energy from conducting heat into the fuel. The included 14mm lower injector seats were designed specifically to be compatible with or without the OEM diffusers in place. They feature Viton O-rings making them suitable for boosted applications.

Features

• Aluminum fuel rail anodized black
• Compatible with all popular fuel types
• Large internal bore
• Three 8AN ORB ports
• Insulating phenolic spacers and washers are included
• Stainless steel hardware

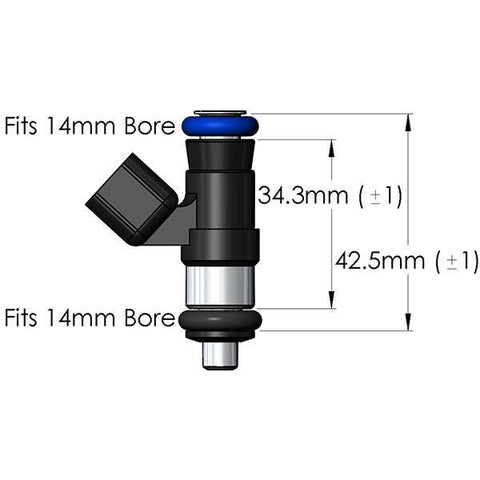

• 14mm lower injector seats designed to be compatible with or without the OEM diffusers

Please Note: Fuel Injectors are NOT included and must be purchased elsewhere.

Applications

• Mazda 20B-REW

Fuel Injector Compatibility

• Injector Dynamics ID850-34-14-14
• Injector Dynamics ID1050x-34-14-14
• Injector Dynamics ID1300-34-14-14
• Injector Dynamics ID1700-34-14-14
• Injector Dynamics ID2000-34-14-14
• Evolved Injection DPI550-38-14-14
• Evolved Injection DPI650-38-14-14
• Evolved Injection DPI850-38-14-14
• Evolved Injection DPI1000-38-14-14
• Evolved Injection DPI1200-38-14-14
• Evolved Injection DPI1300-38-14-14
• Evolved Injection DPI2200-38-14-14
• RC Engineering SM2-0310
• RC Engineering SM2-0370
• RC Engineering SM2-0450
• Deatschwerks 16U-00-0042-4
• Deatschwerks 16U-00-0050-4
• Deatschwerks 16U-00-0065-4
• Deatschwerks 16U-00-0090-4
• Deatschwerks 16M-00-1500-4
• Deatschwerks 16M-00-2200-4

What's In The Box?

• 1 - Primary Fuel Rail
• Fittings & Hardware

References

• Installation Instructions

Warranty

• All Radium Engineering brand products are subject to a 1 Year Limited Warranty from the date of original purchase.
