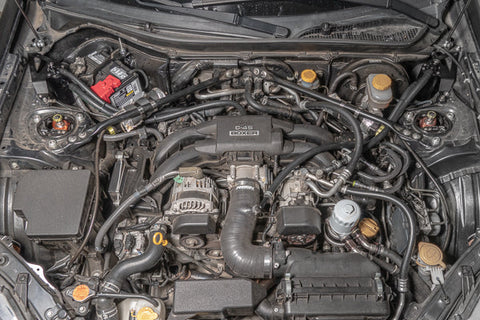

Radium Catch Can Kit | 2013+ Subaru BRZ/Scion FR-S/Toyota 86 (20-0901-FL)
Radium Engineering*SEE DETAILS
Catch Can Kit for 2013+ Subaru BRZ / Scion FR-S / Toyota 86 & GR86 by Radium Engineering
An oil catch can is essential to protect the engine from elevated levels of crankcase blow-by accumulated from aggressive driving. Excess oil-saturated air circulating back into the air intake stream can lead to degraded performance. Radium Engineering catch cans feature large 10AN ORB ports, a 4AN ORB drain port, 2-step oil separation baffling, and an O-ring sealed dipstick.
The catch cans are strategically located for compatibility with Right Hand Drive (RHD) and Left Hand Drive (LHD) variations. Minor brake line clearancing is necessary on RHD installations. For mounting, the kits use factory bosses and holes on the chassis. No cutting, drilling or permanent modification to the vehicle are required.
The two oil catch can kits are completely independent of each other and are sold individually or together. They do NOT vent to atmosphere (VTA), thus are emissions and track legal. Closed loop systems route clean filtered air back in through the engine to be burned and to promote negative crankcase pressure for optimal performance. Furthermore, closed systems prevent unwanted oil vapors into the cabin.
Features
- Capacity: 7 fluid ounces
- Height (without fittings): 5 inches
- Outside Diameter: 2.45 inches
Benefits
- Less oil consumption effectively raises octane
- Lowers hydrocarbon emissions
- Prevents sludge buildup in the intake
Applications
- 2013 - 2016 Scion FR-S
- 2013 - 2020 Toyota 86
- 2013+ Subaru BRZ
- 2022+ Toyota GR86
What's In The Box?
- 1 - Catch Can Kit
References
Warranty
- Limited Manufacturers Warranty
