Radium Oil Catch Can Kits | 2014-2017 Ford Fiesta ST (20-0377-FL)

Subaru Delrin Oil Cap by Cobb Tuning

The Radium Engineering catch can kits are the most functional and integrated kits on the market. The catch cans mount using factory holes and integrate perfectly with the surrounding components. These two oil catch cans (PCV side and Crankcase side) function completely independent of each other and are sold individually or together. They do NOT vent to atmosphere (VTA), thus are emissions and track legal. Closed loop systems remove the oil and sludge from the PCV gasses before it is routed to the engine to be burned. A closed loop system also promotes negative crankcase pressure for optimal performance. Furthermore, closed systems prevent unwanted oil vapors from entering the cabin. The dipsticks built into the catch cans allow easy inspection of accumulated fluid. No cutting, drilling or permanent modification to the vehicle is required.

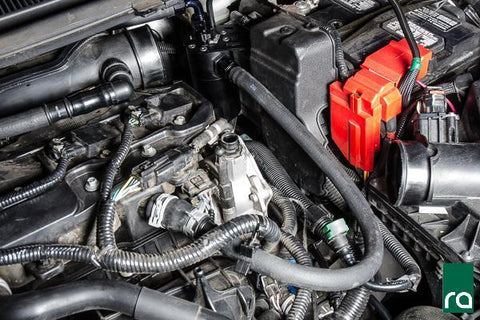

The 20-0377 PCV Catch Can Kit, Fiesta ST secures to the front RH motor mount and the entire kit fits under the OEM engine cover with no modifications required. This catch can runs inline with the PCV (positive crankcase ventilation) valve and retains it's factory function. When the intake manifold pressure is close to or greater than atmospheric pressure, the PCV "check" valve closes and, thus, this hose experiences no flow. Conversely, the PCV hose will experience "metered" vacuum when the engine is idling, steady state cruising, and decelerating. This would normally draw unwanted crankcase vapor, unspent fuel, and oil sludge into the intake manifold immediately after a high load run. Note: Because the Radium catch cans are pressure sealed, they are great for this boosted application so intake manifold connection is permitted.

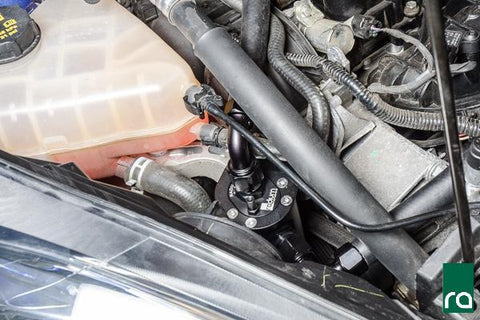

The 20-0378 Crankcase Catch Can Kit, Fiesta ST secures to the 2 ECU mounting studs in the back LH side of the engine bay and the entire kit fits under the OEM engine cover with no modifications required. This catch can runs inline with the crankcase vent port. At low loads it experiences atmospheric pressure, but when the engine is at high load (WOT), this hose will experience high flow out of the crankcase. This would normally lead to oil and sludge accumulation in the air filter intake pipe. Oil accumulation will occur in the intercooler which lowers the thermal efficiency properties of the heat exchanger and leads to decreased performance.

Radium recommends the 20-0379 Dual Catch Can Kit for the ultimate in engine protection. This includes the contents of both the 20-0377 PCV and 20-0378 Crankcase Catch Can Kits.

Features

• Effectively raises the octane and increased engine performance from cleaner inlet air
• Prevents oil buildup in the intake and intercooler system walls, throttle body, intake manifold, etc.
• Excessive oil collection can be an indicator of a damaged engine.
• Lowers hydrocarbon emissions
• Capacity: 6 fluid ounces each

Applications

• 2014 - 2017 Ford Fiesta ST

Petcock Drain Kit Option

• 4AN ORB to barb fitting
• Nylon 1/4" barb ball valve
• Rubber 1/4" PCV hose, 6ft

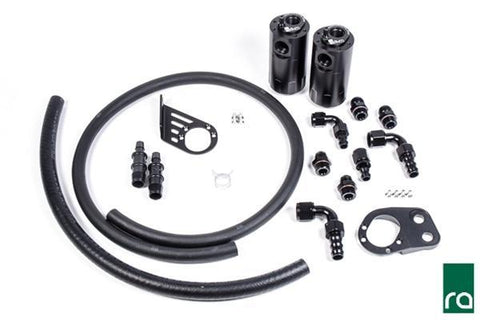

What's In The Box?

• Anodized Oil Catch Can(s)
• Anodized Mounting Bracket(s)
• Anodized -AN Adapter Fittings & Hose Ends
• Enough PCV Hose for Custom Applications
• Stainless steel mounting hardware
• Petcock Drain Kits (if ordered)

Warranty

• Manufacturer's Warranty
