Radium Engineering PCV Baffle Plate for EcoBoost/MZR | Multiple Fitments (20-0327)
Radium Engineering*SEE DETAILS
PCV Baffle Plate for Ford EcoBoost and Mazda MZR Engines

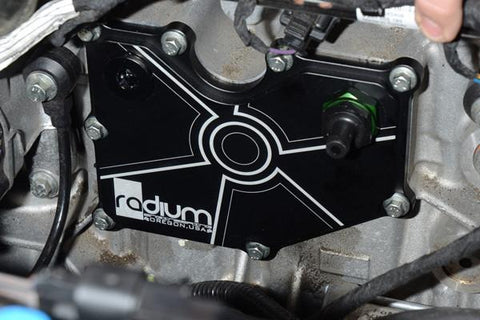

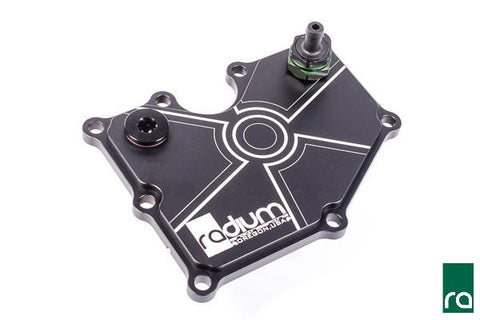

The Radium Engineering PCV Baffle Plate mounts to the engine block and replaces the factory plastic PCV plate and valve. Compared to the OEM unit, the CNC machined aluminum Radium Engineering PCV plate features an extra baffle to prevent oil sludge from entering the intake system without restricting air flow. Furthermore, there are two 10AN ORB ports machined above both aluminum baffles.
The bare-bones kit includes ONLY the Radium PCV plate and associated baffles. The twin 10AN ORB ports allow connection of breathers, catch cans, oil return lines, etc. for custom installations.
The OEM configuration kit includes all parts necessary for a plug and play installation and can be used with the OEM PCV tubing or with Radium catch cans. Because the OEM Ford PCV valve leaks at all boost levels, this kit includes Radium's own 10AN ORB PCV Valve which prevents boost from leaking into the crankcase. No permanent vehicle modifications are required.
PLEASE NOTE: The Plug & Play Fitting Kit is only applicable to the Focus ST & RS
Features

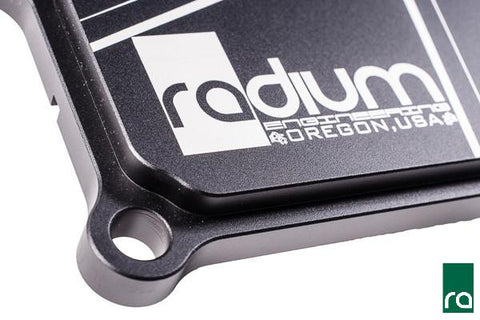

- CNC Machined Aluminum
- Protects Intake from Oil Sludge
- Prevent Boost Leak
- Aluminum Baffles
- Two 10AN ORB Ports to Connect Breathers, Catch Cans, Oil Return Lines, etc.
- An Aluminum 10AN ORB PCV Valve is Included to Replace the OEM Valve (PnP OEM Kit Only)
- An Aluminum 10AN ORB Plug is Included (PnP OEM Kit Only)
- Stainless Steel Hose Clamp (PnP OEM Kit Only)
Applications
- 2013 - 2018 Ford Focus ST EcoBoost
- 2016 - 2018 Ford Focus RS EcoBoost
- 2015 - 2023 Ford Mustang EcoBoost
- 2013 - 2020 Ford Fusion 2.0L EcoBoost
- 2005 - 2012 Ford Focus Duratec
- 2002 - 2008 Ford Fiesta Duratec
- 2006 - 2020 Ford Fusion Duratec
- 2007 - 2013 Mazdaspeed 3 MZR
- 2006 - 2007 Mazdaspeed 6 MZR
- 2005 - 2015 Mazda MX-5 MZR

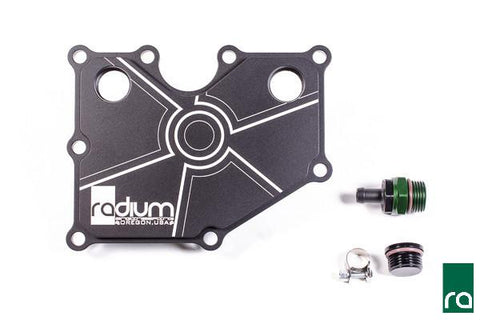

What's In The Box?
- 1 - Radium PCV Plate w/ Baffles
- 1 - 10AN ORB PCV Valve (PnP OEM Kit Only)
- 1 - 10AN ORB Plug (PnP OEM Kit Only)
- 1 - Hose Clamp (PnP OEM Kit Only)
- All Necessary Hardware
- Instructions/Manual
- Warranty Information
Warranty
- Manufacturer Standard Warranty
Customer Reviews

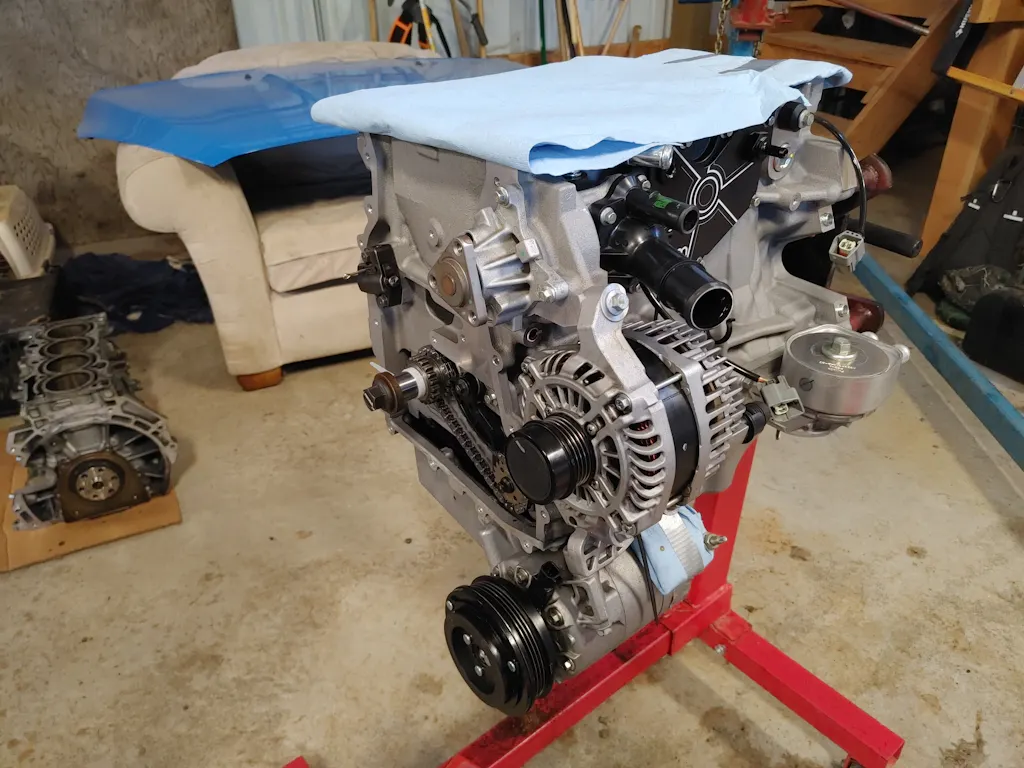

The stock vent plate is crappy at best. This is super well made and comes packaged to survive even Ace Ventura delivering it. I used it on a 2.0 Ecoboost Fusion. I'm not sure if the PCV hose is different between the Focus and Fusion, but the stock plastic tube didn't even come close to fitting. I used the full length of the rubber tube that came with the kit and got it to loop around and fit without rubbing against anything. Overall it is a great upgrade.
I have not installed yet, but is extremely well made and I can't wait to install it. I will update with pictures afterwards.
for any any upgraded turbo setups, and bolt on, this thing is a must have. Looks great, works great. Had it for 1 year and some so far, not a single issue
Looks great, well packaged and made. The gasket slot is too wide, if narrowed up a bit the gasket would stick in place during installation. The ORB plug uses a bastard hex size, possibly 9mm, which is not in a normal tool box. Make it 8 or 10 to make it easier to install.
Perfect fit for my mazdaspeed great work
