Radium Engineering Fuel Cell Subharness Kit

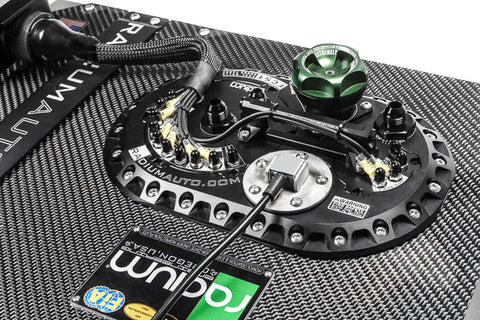

The fuel cell subharness kit is a great addition for quicker pit stops. It is common for racers to have a spare drop-in FCST-X fuel pump module in the pit in case there is an issue with a fuel pump, electrical wiring, etc. With a subharness on both FCST-X units, the entire pump assembly can be swapped quicly without any tools.
RADIUM ENGINEERING FCST-X (or FCST): Each of the 26 preterminated 10awg wires has a unique identification labels associated with the FCST-X labeling. However, they can still be used with the older FCST that has slightly different labeling.

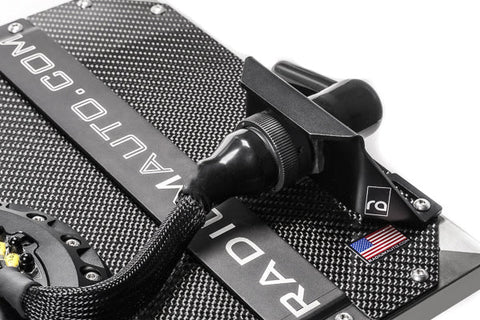

RADIUM ENGINEERING RA-SERIES FUEL CELLS: Designed specifically to mount on the perimeter of RA-Series Fuel Cells. For another fuel cell to be directly compatible, the bolt spacing must be 3.6"-5.7" (91-145mm). The bolt hole distance of the bulkhead mount is compatible with all Radium Engineering RA-series fuel cells. It can be mounted anywhere along the perimeter of the fuel cell. Furthermore, the mount can be rotated inwards or outwards for a 3in (76mm) location difference.
Applications
- Universal FCST
- Universal FCST-X
- Universal RA-Series
What's In The Box?
- 1 - Anodized aluminum fuel cell mounting bracket
- 1 - Environmentally sealed female CPC bulkhead connector
- 1 - Environmentally sealed male CPC connector
- 16 - Stamped 14-10awg open barrel female contacts
- 16 - Stamped 14-10awg open barrel male contacts
- 1 - Black rubber boot, straight
- 1 - Black rubber boot, right angle
- 1 - Bulkhead panel hex nut
- 1 - Bulkhead locking wave washer
- 25 - Plugs for empty cavities
- 5 - Cable zip-ties
- 26 - Labeled 10awg wire with preterminated ring terminals
