Radium Engineering Fuel Surge Tank Install Kit | 2008-2015 Mitsubishi Evolution X (20-0113)
Radium Engineering*SEE DETAILS
This comprehensive installation kit includes everything needed to install a Radium fuel surge tank with a single 39mm fuel pump or a Bosch 044 fuel pump in a Mitsubishi Lancer Evolution X. The kit was NOT designed to work with the Radium MPFST or RHD EVOX models that use the large OEM windshield washer reservoir (check your reservoir before ordering).
All Radium FSTs are CNC machined from aluminum. They are fully anodized and use PTFE insulated wiring, submersible hose, etc. to make them alcohol (ethanol/methanol/E85) compliant. The Mitsubishi Evolution X install kit locates the FST in a collision-safe area, centered behind the rear seat but in front of the plastic paneling in the trunk (shown below). This allows 100% of useable trunk space as the panel goes back on after the install. The powder coated aluminum bracket secures to OEM mounting bosses so no drilling or cutting is necessary. Furthermore, the OEM battery and windshield washer fluid bottle are retained and do not need to be relocated.

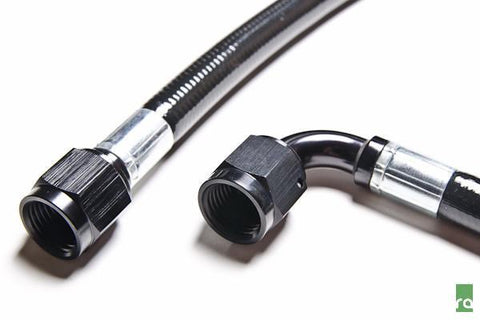

Included are 4 PTFE hoses which are cut to length and preassembled. PTFE hose is perfect for all types of fuel, especially with high alcohol contents, such as ethanol (E85). Unlike standard rubber hose, PTFE is non-permeable and eliminates any possible fuel vapor smell in the vehicle. Radium PTFE hoses use anodized aluminum hose ends and are cut-to-length specifically for this application. The inner stainless steel braid resists extreme fuel pressures and is covered with black PVC which gives the hose added protection from debris and provides abrasion protection. Supplied in -6AN size only.
Applications
- 2008-2015 Mitsubishi Lancer Evolution X
What's In The Box?
- Preassembled 3/8" (-6AN) PTFE Hoses
- Powder Coated Mounting Bracket
- AN and OEM Style Adapter Fittings
- Stainless Steel Hardware

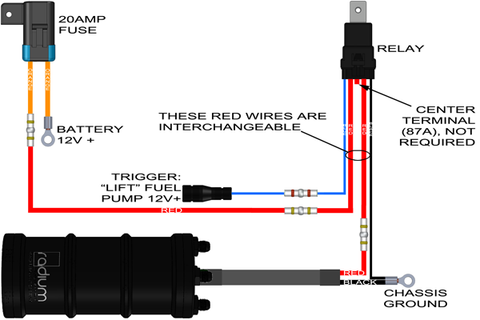

- Wiring Components with Relay and Fuse
- Installation Instructions
