2008-2015 Mitsubishi Evo X Fuel Pump Hanger by Radium Engineering

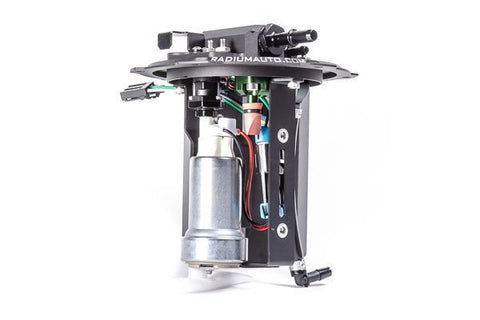

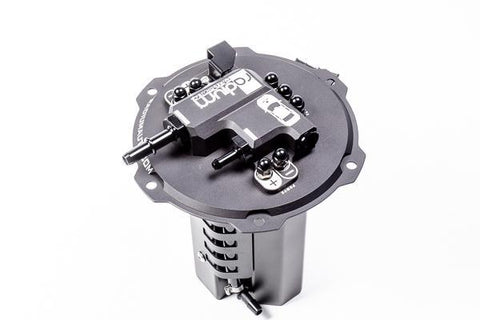

The new Radium Engineering fuel pump hanger for the Mitsubishi Evo X has been redesigned for improved fuel collection and easier installation. It completely replaces the factory in-tank fuel pump module and allows 1 or 2 aftermarket fuel pumps to be used. The OEM level sender, fuel temperature, and fuel tank pressure sensors are retained in order to maintain factory functionality.

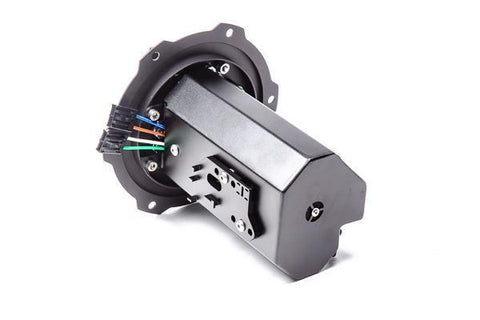

The kit includes a 1-piece anodized aluminum collector box that makes installation a breeze and keeps fuel trapped around the fuel pumps. As shown below, there is a 1-way fill valve incorporated in the bottom of the collector that allows fuel in, but not out. The collector box also stay full from the fuel returning from the pressure regulator.

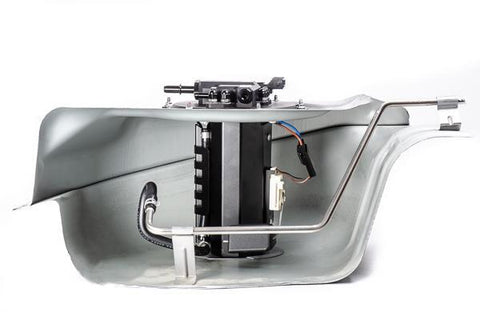

One major issue with the stock EVO X fuel pump module is the restrictive venturi jet pump in the return line. It performs the important function of transferring fuel from the other side of the fuel tank to the pump module. When using aftermarket high-flow pumps, the restriction in the fuel return creates unwanted back pressure resulting in unmanageable fuel pressure. Many installers will simply drill out the OEM venturi jet pump to reduce the restriction, but this compromises how effectively the venturi functions. Radium Engineering has redesigned the siphon system to eliminate restriction but still effectively scavenge fuel. This means higher flowing pumps can safely be used without issue from the return system.
Please note: Pumps are not included with this setup, this is for the fuel pump hanger setup only!
Features

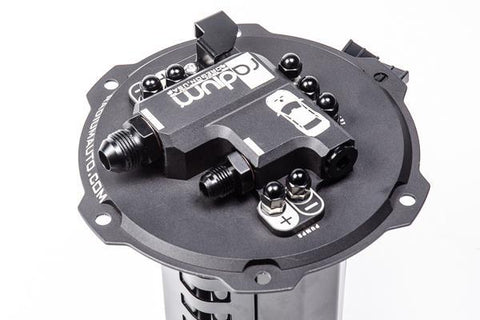

- 8AN ORB Female Pump-Out Port
- 6AN ORB Female Return Port
- Collector Box with 1-Way Fill Valve
- Venturi Jet Pump
- Single Merged Fuel Pump Outlet
- High current electrical connections
- Black anodized fittings
- Fuel Level and Temp Sensor Mount
- Compatible with Twin Pumps
- Fluorosilicone Duckbill Return Valve
- Stainless Steel Hardware and Clamps
- Compatible with alternative fuels such as E85
Applications
- 2008-2015 Mitsubishi Evo X
What's in the box?
- (1) Fuel Pump Hanger
- (1) -8 AN Adapter Fitting
- (1) -6 AN Adapter Fitting
- Wiring
References
Warranty
- Radium Engineering Warranty
Customer Reviews
Awesome product, was easy to assemble and easy drop it like a stock hanger, fuel pressure is more stable now with the new venturi tube design
The hanger is absolutely beautiful. Very straightforward and easy to install. Took a little time but well worth it. I had a single 525 pump with oem hanger but fuel pressure wouldn't come down. Bought this hanger and I was able to bring it down to what was needed. One issue I had, the 3 screw clamp that holds the pump to the hanger wouldn't tighten so I had to use the second one. Since I'm using 1 pump it wasn't a huge deal.
Great product as always. Smooth and easy process of ordering and receiving.
Bought plenty of items for the Evo from MAP over the years. They are always on point with their service. Radium hanger is a high quality unit. Dual pump setup is a must for the track. Eventually will add a surge tank to virtually eliminate any possibility for starvation.
Great product!!
