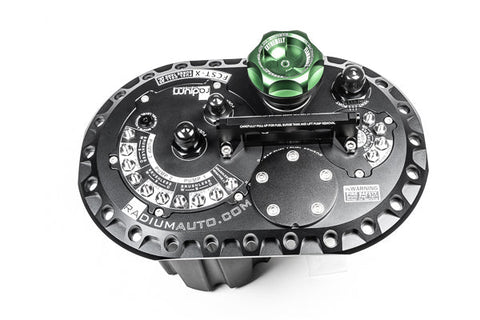

Radium Engineering Fuel Cell Surge Tank X - FCST-X

Since 2010, external Radium Engineering fuel surge tanks have been an excellent way to eliminate fuel starvation that occurs in racing. To simplify plumbing and packaging, Radium Engineering introduced the first to market Fuel Cell Surge Tank (FCST) in 2013. This FCST quickly became the preferred fuel system for the competition vehicle market and professional racing. After 10 years of kaizen, the transformation brings the release of the FCST-X (Fuel Cell Surge Tank-10 Years).

The features listed below carry over from previous fuel cell surge tanks.

• Merged single 10AN ORB female threaded outlet. All pumps use check valves that prevent back-flow.
• One-way fill valves (355LPH each) allows fuel in, but not out, keeping the surge tank full.
• Multiple fuel pump options including gerotor, reaction turbine, and brushless DC motor pumps.

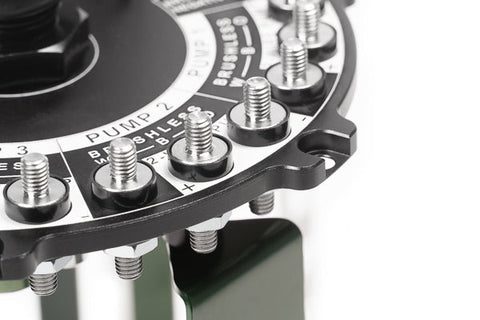

• Hermetically sealed high-current stainless steel electrical studs capable of handling all pumps.
• Simplified servicing eliminates sealing washers and fuel cell retaining brackets.
• Full CNC aluminum construction with anodized surfacing for superior corrosion resistance.
• Fuel compatibility: leaded and unleaded gasoline, methanol, ethanol, E85, etc.
• Optional fuel surge tank level switch and diagnostic LED failsafe port.
• Rollover vent valve protection

In addition to all previous FCST features, the new FCST-X rendition is packed with innovations.

• Fast lift and surge pump access (9 bolts total)
• Integrated lift handle for fuel pump servicing
• Lightweight surge tank increased from 2.2L to 2.6L
• Compatible with up to 4 brushless fuel pumps
• Up to 4 Bosch BR540 fuel pumps (DW400)
• Up to 3 Ti Automotive E5LM brushless pumps
• Up to 4 brushless Bosch pumps (DW440)
• Compatible with 16AN inlet mechanical pumps
• Easily swappable pump modules (sold separately)
• Compatible with shrouded level sensors
• Designed with less potential leak points
• Improved fluid control for quick filling
• Optimized internal fluid management
• Enhanced roll over protection
• Anti-rotation electrical terminals

Applications

• Universal

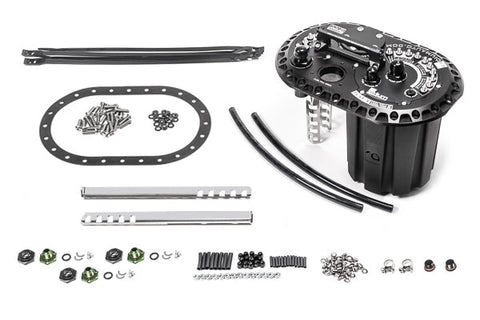

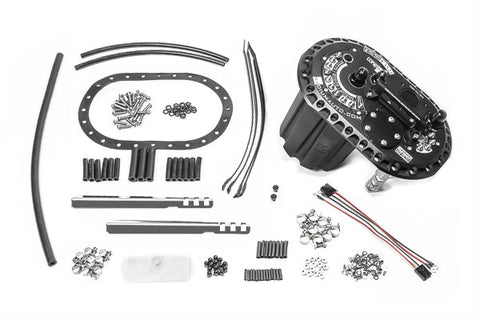

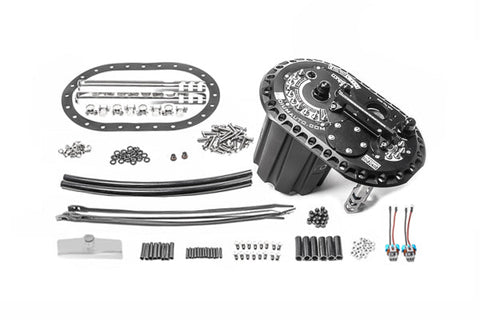

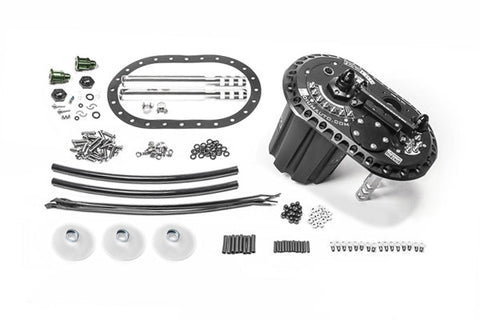

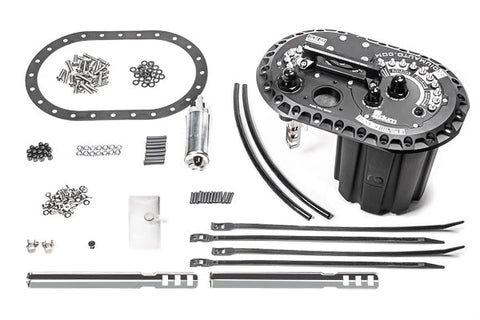

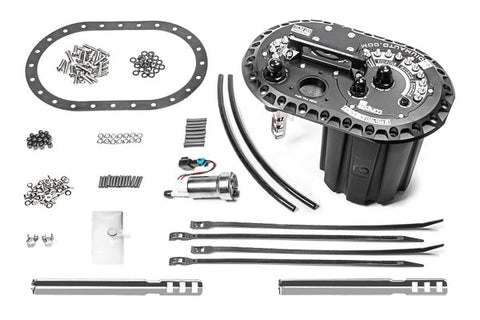

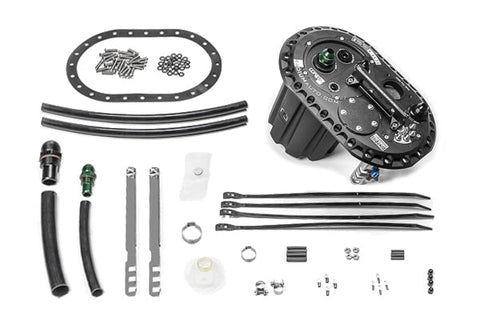

What's In The Box?

• 1 - Anodized aluminum 6x10 plate
• 1 - Anodized aluminum surge tank pump hat
• 1 - Anodized aluminum lift pump hat
• 1 - Anodized aluminum service handle
• 1 - Anodized aluminum level sensor plate
• 1 - Anodized aluminum surge pump bracket
• 1 - Anodized aluminum 8AN roll over vent valve
• 1 - FKM refueling rollover protection seal
• 1 - FKM 6x10 24-hole sealing gasket
• 1 - 8AN ORB to 6AN male return fitting
• 1 - 10AN ORB to 8AN male pump out fitting
• 3 - FKM 1-way fill valves
• Anodized aluminum acorn nuts
• Electrical wire ring terminals
• Stainless lift pump mounts (shallow & deep)
• Lift Pump and Surge Pump Fuel Filters

References

• Installation Instructions

Warranty

• Limited Manufacturers Warranty
