Radium Engineering Direct Mount Regulator DMR-RA | Universal (20-1623-00)
Radium EngineeringDMR-RA Direct Mount Regulator by Radium Engineering

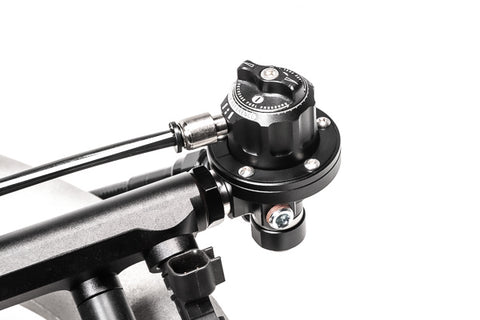

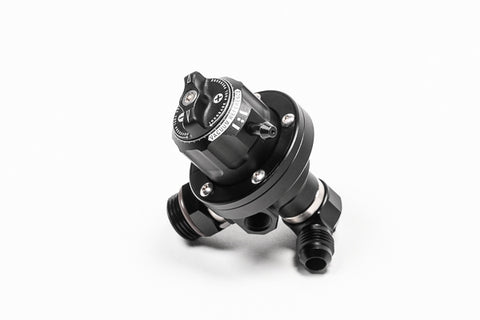

This regulator is designed with a unique highly versatile mounting system. It can be mounted directly to a compatible fuel rail port using the included 360 degree swiveling adapter, or mounted remotely away from the fuel rail (using 20-0624). The compact size fits in areas with limited space, without sacrificing performance.
The main inlet port on the regulator is female threaded for 6AN ORB. A swiveling double ended adapter is included which allows the regulator to be used in any compatible 8AN ORB fuel rail port, such as those found Radium Engineering fuel rails. Other swivel adapters are available but sold separately. If mounting the regulator off-rail, other adapters can be screwed into this regulator port.
The bottom return port is threaded for 6AN ORB. The provided 90 degree 6AN male fuel return fitting can swivel 360 degrees, permitting a multitude of mounting configurations. Other adapter fittings can be installed in the return port if needed (sold separately).
Features

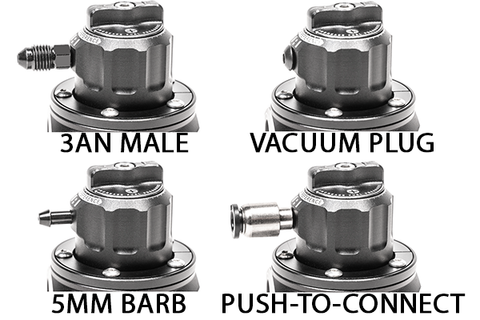

- 4 interchangeable 10-32 threaded vacuum port fittings provided to cover all scenarios
- Suitable with all gasoline types including unleaded, leaded, oxygenated, and pre-mixes
- Compatible with alcohol blends of fuel including methanol, ethanol, and E85
- Minimum Pressure: 18.5psi (1.3bar)
Benefits
- Unique highly versatile mounting system
- Compatible with multiple fittings

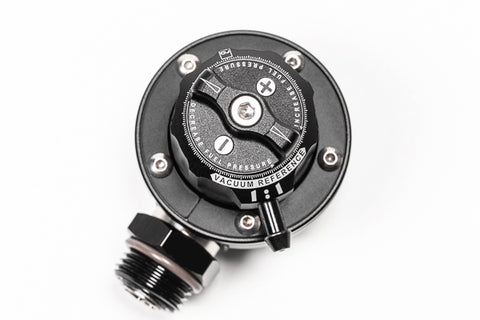

- Point the vacuum fitting in any direction with no tools required
Applications
- Universal
What's In The Box?
- 1 - Main Rotating Assembly
- 1 - 5mm Barbed Vacuum Fitting
- 1 - Vacuum Plug Fitting (Returnless)
- 1 - 1/4" Push-To-Connect Vacuum Fitting
- 1 - 3AN Male Vacuum Fitting
- 1 - 6AN Male Swivel (for Return Line)
- 1 - Swiveling Inlet Fitting (for 8AN ORB Fuel Rail)
- 2 - PTFE Impregenated 1/8" NPT Plugs
