Radium Engineering Coolant Expansion Tank (20-0270-00)

Coolant Expansion Tank by Radium Engineering

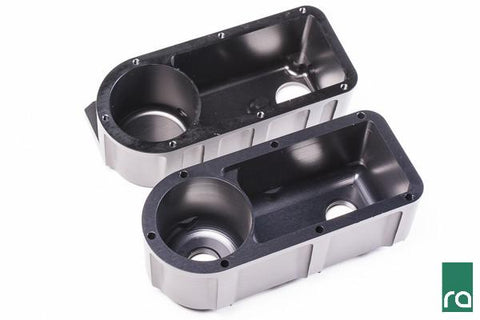

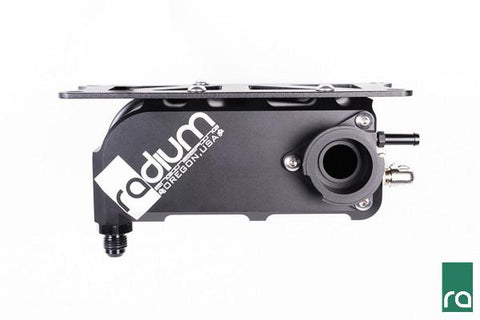

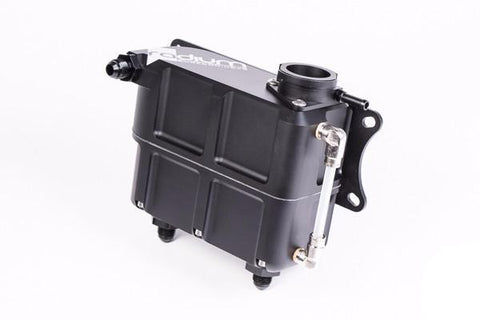

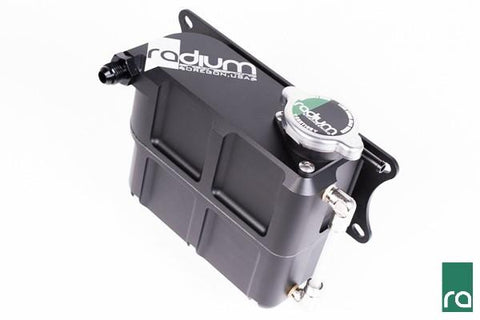

Coolant expansion tanks are necessary for proper air bleeding in applications that utilize a low mounted radiator (such as a V-Mount) or rear mounted radiator. The Radium Coolant Expansion Tank holds 750mL. It is a 2-piece design constructed of CNC billet 6061 aluminum. The two halves are bolted together along with a CNC billet aluminum radiator neck which accepts a standard 32mm "Mini" style pressure cap. The coolant expansion tank features two internal chambers. These chambers are NOT isolated from each other. There are cross-over passages at the top and bottom.

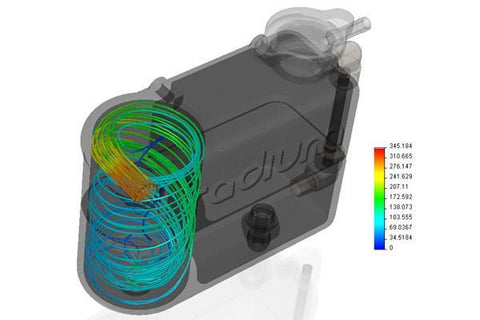

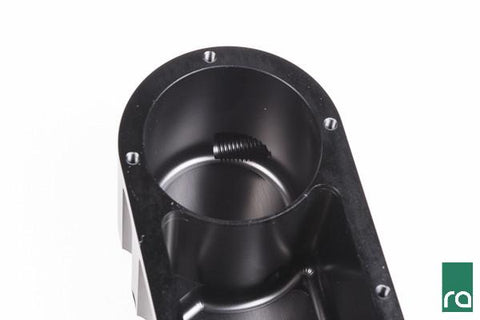

This product is not a coolant overflow tank. Instead, it is designed to be part of the pressurized coolant system. The Radium Engineering coolant header tank also has an internal swirl feature. Hot pressurized coolant from the cylinder head is sent into the vortex chamber's inlet tangentially and accelerated to a high rate of rotation. This is to help aid in deaerating the system. The tank features three O-ring boss ports for a positive seal. Included are -6AN male adapter fittings (not tapered pipe threads). The lower ports are machined with 10AN ORB threads. Included are three -6AN female 90 degree hose ends that screw onto the three -6AN male port fittings. They are lightweight black anodized aluminum and are used for push-lok style 3/8" ID hose.

The optional Radium Engineering pressure caps allow the user to select a range of pressure. The purpose of a high pressure cap is to increase the boiling point in the cooling system providing improved cooling efficiency. Each cap is manufactured from stainless steel with a race proven high pressure valve. This is something to consider when tracking the vehicle in extreme conditions.

Features

• Tank Crafted /w Billet Aluminum
• 2 Bottom ports: -10AN ORB
• 1 Front port: -6AN ORB
• 2 Internal Chambers /w Cross-Over Passages

Applications

• Universal

What's In The Box?

• 1 - Billet Aluminum Coolant Tank

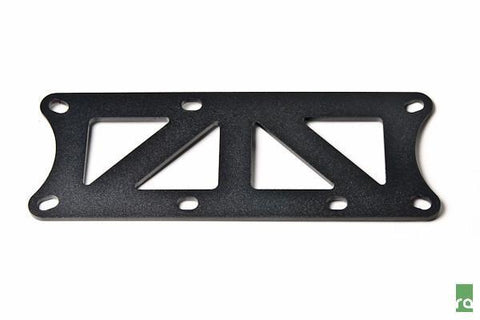

• 1 - Anodized Aluminum Mounting Bracket
• 3 - 6AN Male Adapter Fittings

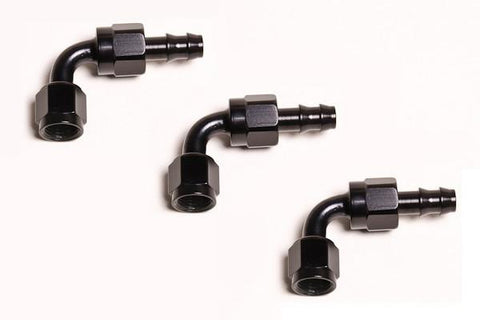

• 3 - 6AN 90 degree Push-Lok Hose Ends
• 1 - Nickel-Plated Fittings and Sight Tube

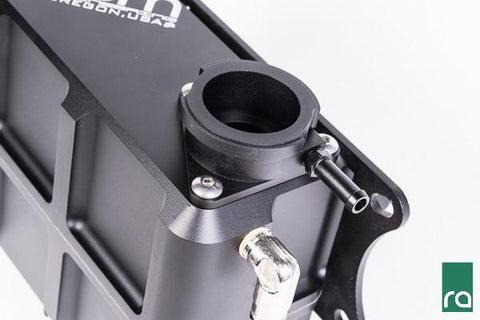

• 1 - Billet Aluminum 32mm Pressure Cap Receiver
• 1 - Aluminum Pressure Bleed 1/4" Barb
• Stainless Steel Hardware

Installation Instructions

• Click Here for install notes

Warranty

• Radium Engineering Limited Warranty
