Radium Catch Can Kits | 2017+ Honda Civic Type-R (20-0424/0825-FL)
Radium Engineering*SEE DETAILS
Catch Can Kits for 2017+ Honda Civic Type-R FK8 & FL5
Whether you're looking for a single or double catch can setup Radium has the perfect solution for your FL5 or FK8.
This kit mounts using factory holes and integrates perfectly with the surrounding components. These two oil catch cans (PCV side and CCV side) function completely independent of each other and are sold individually or together. They do NOT vent to atmosphere (VTA), thus are emissions and track legal. Closed loop systems remove the oil and sludge from the PCV gasses before it is routed to the engine to be burned. A closed loop system also promotes negative crankcase pressure for optimal performance. Furthermore, closed systems prevent unwanted oil vapors from entering the cabin. The dipsticks built into the catch cans allow easy inspection of accumulated fluid. No cutting, drilling or permanent modification to the vehicle is required.

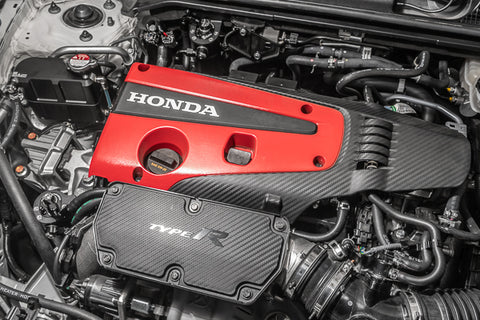

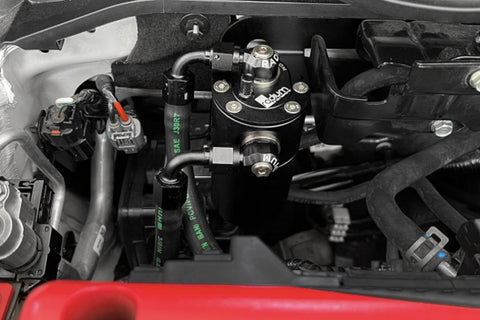

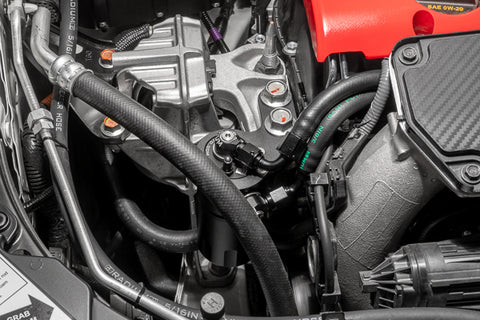

The PCV kit option will run inline with the PCV valve and which allows it to retain it's factory function. This kit mounts to the firewall behind the engine. The CCV kit option secures to the right hand motor mount and runs inline with the crankcase vent port under the OEM engine cover. See photos for example placements.
Features
- Closed Loop system
- 2-step oil separation baffling
- Built in dipstick
Benefits
- Emissions and track legal
- No cutting, drilling or permanent modification to the vehicle is required
- Promotes negative crankcase pressure for optimal performance
Applications
- 2017 - 2021 Honda Civic Type-R FK8 (LHD Only)
- 2023+ Honda Civic Type-R FL5 (LHD Only)

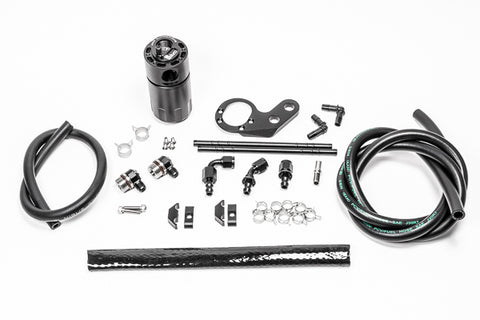

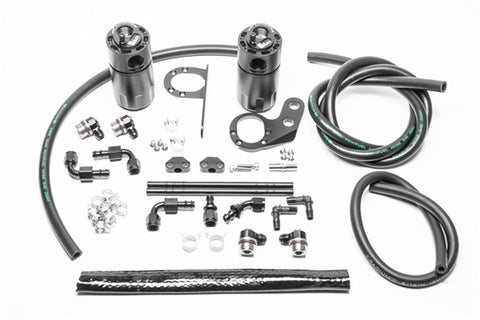

What's In The Box?
- 1 - Anodized Oil Catch Can w/Integrated Condenser and Dipstick
- 1 - Anodized Aluminum Civic Type-R Specific Mounting Bracket
- Anodized aluminum -AN adapter fittings and hose ends
- Extra Length PCV Hose
- Stainless Steel Mounting Hardware
References
Warranty
- Limited Manufacturers Warranty
