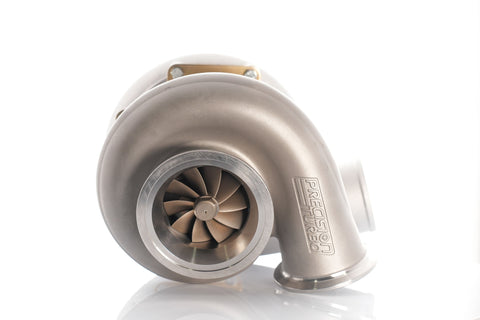

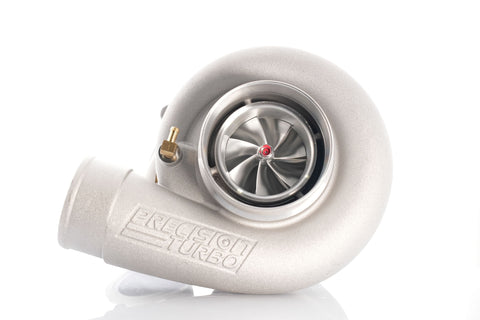

Precision Turbo Next Gen PT6466 Ball Bearing Turbocharger (2730X210XXX)

Next Gen PT6466 Turbocharger by Precision Turbo

Introducing the all-new Precision Turbo Next Gen 6466 turbocharger. The Next Gen 6466 is now rated at 1000HP and will be available in the all-new SCP (S Cast Ported) compressor cover, offering a 4” inlet and 2.5” outlet and for the first time in the HP compressor cover, which features a 4” inlet and 3” outlet .

This evolution in Precisions lineup involves the development of a new aero package, which includes a redesigned compressor cover with numerous flow enhancements and a new compressor wheel profile that incorporates an extended tip on the exducer. All these improvements result in a 10% increase in flow compared to Gen 2 technology.

Features

• Exclusive Next Gen CEA® (Competition Engineered Aerodynamics) Compressor Wheel machined from a 2618-aluminum forging, featuring an 88.1mm extended tip
• Air-Cooled, Dual Ceramic Ball-Bearing Center Housing Rotating Assembly (CHRA)
• S Compressor Cover 4.0" Inlet / 2.5" Outlet
• H Ported Compressor Cover 4.0" Inlet / 3" Outlet
• 64mm CEA® Compressor Wheel
• 66mm CEA® Turbine Wheel

Applications

• Universal - Rated to 1000hp

What's In The Box?

• 1 - Next Gen PT6466 Turbocharger

References

• Turbo Installation Tips
• Turbine Housing Clamp & Flanges Reference
• Compressor Cover Reference
