Perrin Junction Block for Side Feed Fuel Rail | Multiple Subaru Fitments (PSP-FUL-222BK)
Perrin Performance*SEE DETAILS

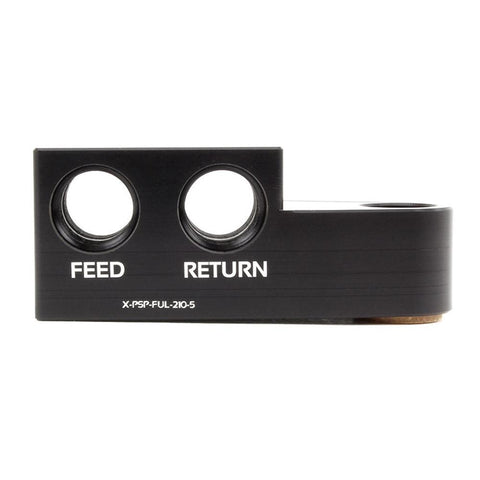

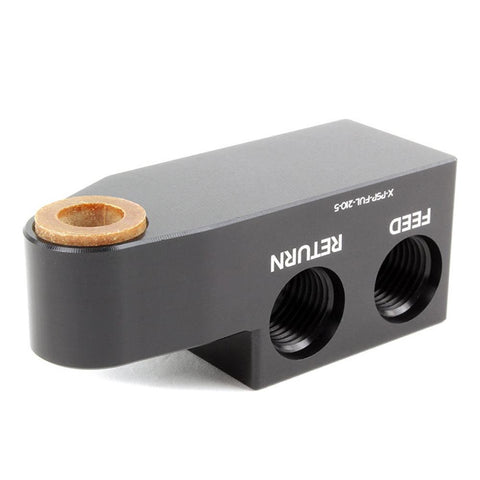

Subaru Junction Block with FPR and -6 Fittings by Perrin Performance
DIY KIT For customers looking for no further than the PERRIN Fuel Rail Junction Block. Choose from fuel rails and junction blocks to create the fuel setup that is perfect for you and your needs.
High-Flow The PERRIN Fuel Junction Blocks make for a clean transition from OEM rubber hoses to your PERRIN Fuel Rails. Like the PERRIN Fuel Rails, the PERRIN junction blocks are threaded for male 9/16-18 fittings (-6 AN), utilizing an O-ring seal.
-6 AN Fitting Compatibility The PERRIN Fuel Rail junction block is threaded for male 9/16-18 fittings, utilizing an O-ring seal. These are the same as a typical -6 AN fitting with an O-ring seal, also referred to as ORB fittings. These fittings are widely available and in all shapes and colors whatever suits your build.
Built-in Phenolic Spacers All PERRIN junction blocks come with built-in phenolic spacers. These spacers insulate the junction blocks from the 200F cylinder heads, this keeps fuel closer to its normal ambient temperature. These spacer reduce the temperature of the fuel upwards of 30°F
Construction & Finish PERRIN junction block bodies are precision CNC machined from 6061 billet aluminum with black anodized finish for corrosion protection and a clean looking finish.
Features
- Clean transition from OEM rubber hoses to your PERRIN Fuel Rails
- Black Anodized finish
- 6061 billet aluminum
Benefits
- All Ports are marked with " Feed" and "Return" for ease of installation
- Allows for cars to run beyond 800 WHP safely and without inconsistent fuel flow to each cylinder
Applications
- 2007-2009 Subaru Outback XT
- 2007-2012 Subaru Legacy GT
- 2006-2013 Subaru Forester XT
- 2002-2014 Subaru WRX
- 2004-2021 Subaru STI
What's In The Box?
- 1 - PERRIN Side Feed Junction Block
- 1 - M8 x 20 Socket cap screws
References
Warranty
- Perrin 5-Year Limited Warranty
