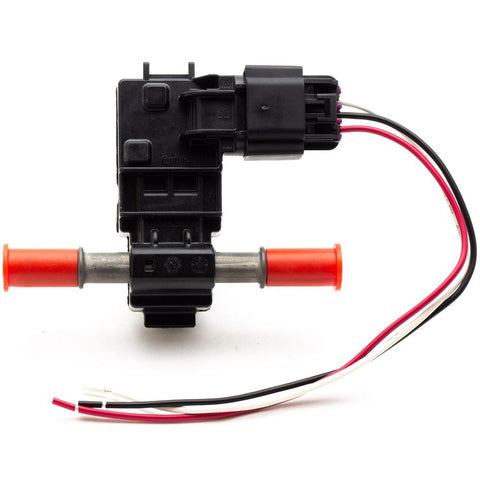

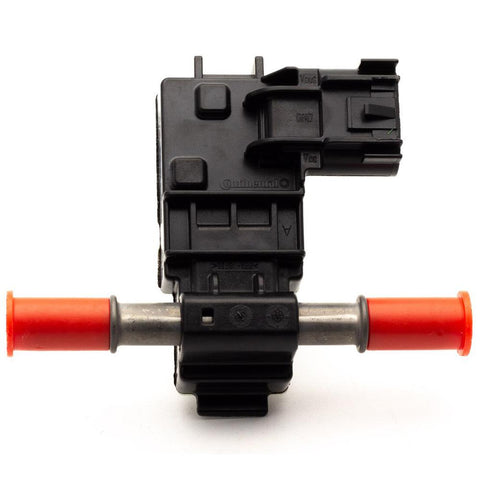

P3 Ethanol Content Sensor w/ Harness (P3ESEN)

GM/Continental Ethanol Content Sensor by P3 Gauges

GM/Continental Ethanol Content Sensor and Wiring Harness. Reads ethanol content and fuel temperature. 50-150hz square wave output. For use with P3 Ethanol SVA.

Features

• Reads ethanol content and fuel temperature

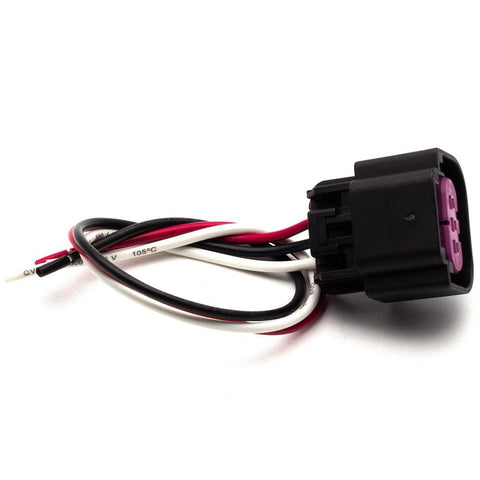

• Includes harness (approx. 8 inches in length)
• 50-150hz square wave output

Please Note:

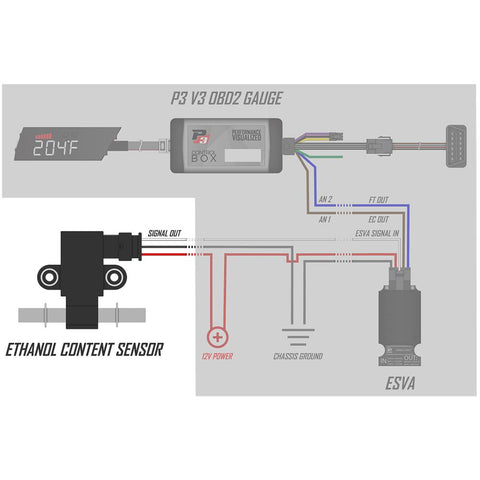

• For use with P3 Ethanol SVA (not included).

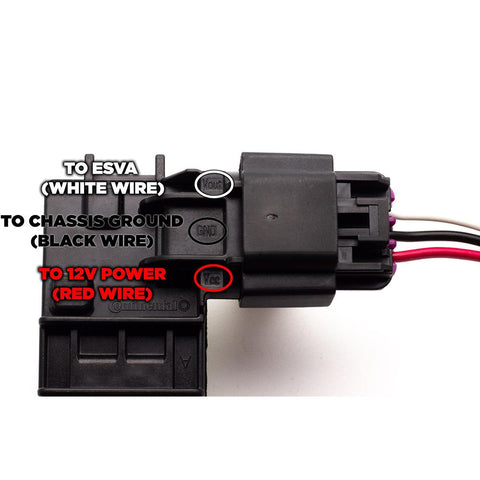

• Pinout order is always the same (shown in 4th picture) but sensor design and wire colors may vary. If wire colors are different they will be clearly labelled.

Applications

• Universal

What's In The Box?

• 1 - Ethanol Content Sensor w/ Harness

References

• V3 Gauge & Ethanol Sensor Install on Audi B8 S4 (Video)

Warranty

• Manufacturer Standard Warranty
