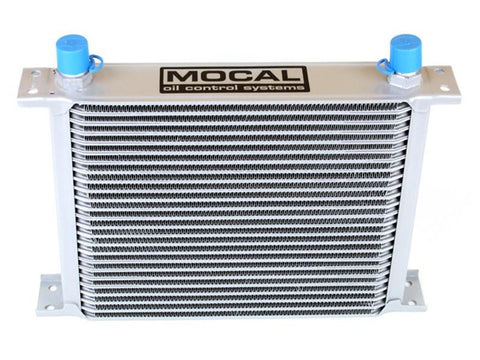

Mocal Oil Cooler 19 Row AN-10 (A19A10)
Mocal*SEE DETAILS
The cooler consists of a variable number of aluminium pressed plates forming oil ways and end tanks, the oil ways contain turbulators. These do not only break down boundary layer effects in the flow to obtain maximum heat dissipation without undue pressure drop but also, because they are brazed to both surfaces of the plates, hold them together under pressure. The oil ways are interspersed with aluminium strip louvered and formed into corrugations to provide airways.
The design is beautifully simple and efficient and most suitable for mass production, but it is restricted to a 2" thickness and a limited amount of lengths.
Maximum working pressure on the standard range of coolers is 10 bar (150psi)although each cooler is tested to 11.5 bar (170psi) this is adequate for all but the most arduous motoring applications, however some customers prefer a higher pressure rating, for instance where the pressure by pass valve does not provide enough protection as in high rpm in cold start up conditions or on dry sump installations.
Features
- -10AN male threads
- 9.25" wide core (235mm)
- 19 rows or 5.78" (147mm) core height
- 2.8 lb (1.24kg) dry weight
- 0.40 quart (0.38L) capacity
Benefits
- Cooler Oil temps
Please Note: Fluid connections are ORB 1/2" BSP. These connections are available in either -8AN or -10AN and are sold separately.
Applications
- Universal
What's in the Box?
- 1 Oil Cooler
Warranty
- Mocal Limited Warranty
