Mishimoto Upper Intercooler Pipe Kit | 2008-2015 Mitsubishi Evo X (MMICP-EVO-10U)
Mishimoto*SEE DETAILS
Mitsubishi Lancer Evolution X Upper Intercooler Pipe Kit, 2008+
Upgrade your restrictive and failure-prone factory Evo intercooler pipe with the Mishimoto Lancer Evolution X Upper Intercooler Pipe Kit, precision engineered for the Mitsubishi Evolution X. This kit features polished 2.5" mandrel-bent aluminum piping for smooth airflow, and four-layer silicone couplers with heat-resistant embedded fibers for improved tolerance against heat and pressure. This kit also includes high-quality stainless steel T-bolt clamps for consistent and reliable holding power. The Mishimoto Lancer Evolution X Upper Intercooler Pipe Kit will provide reliable charge-air connections as well as improved throttle response, perfect for your daily driver or rallycross Evo. This kit is available with black, red, or blue couplers and includes the Mishimoto Lifetime Warranty.
Installation Torque Specs - 27 in-lbs (3N*M) recommended for all t-bolt and constant tension t-bolt clamps. These clamps have an operating range of 18-35 in-lbs (2-4N*M). Do not exceed the maximum torque rating of 35 in-lbs (4N*M).
Features
- Direct fit for the Evo X
- Lightweight, polished aluminum pipes
- Inner Piping Diameter: 2.375"
- Outer Piping Diameter: 2.50"
- Your choice of black, red, or blue couplers
- CARB EO #: D-759
Silicone Couplers
- Coupler 1: 1.73" / 2.44", 2.125" / 2.83"
- Coupler 2: 2.44", 2.83"
- Coupler 3: 2.44", 2.83"
Applications
- 2008-2015 Mitsubishi Evo X

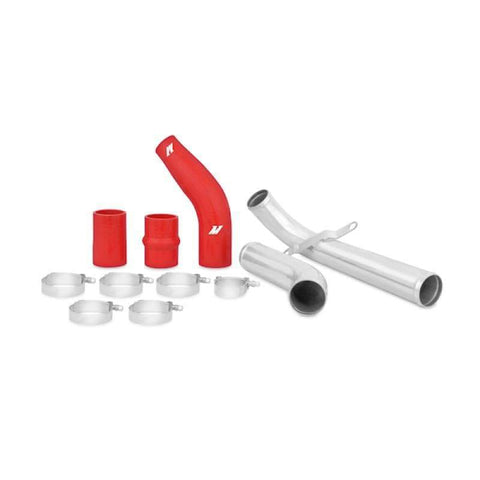

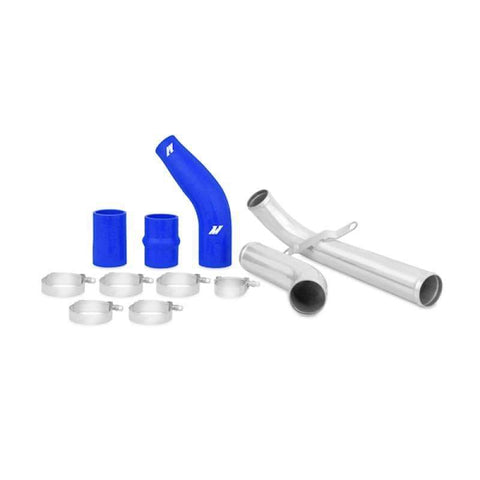

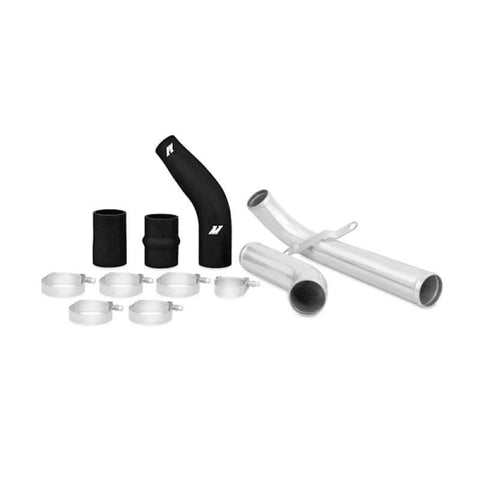

What's In The Box?
- (2) Polished Aluminum Pipes
- (3) Silicone Couplers
- (5) 2.75" T-bolt Clamps
- (1) 2" T-bolt Clamp
Warranty
- Mishimoto Lifetime Warranty
Downloads
- n/a
