2017-2020 Ford F-150 3.5L EcoBoost/Raptor Intercooler Kit by Mishimoto
Mishimoto has developed a direct-fit 2017+ 3.5L F-150 EcoBoost Intercooler & Pipe kit that allows owners to maximize the performance potential of their F-150 or second-gen Raptor.
Our kit replaces the weak and unattractive plastic piping with free-flowing, durable aluminum piping and silicone boots with DuraCore™ technology. The larger volume of our pipes allows your 2017+ 3.5L EcoBoost to breathe free and make the most of its two turbochargers. DuraCore™ boots coupled with constant-tension worm gear clamps provide superior strength and blowout resistance, ensuring boost always makes it to its destination.

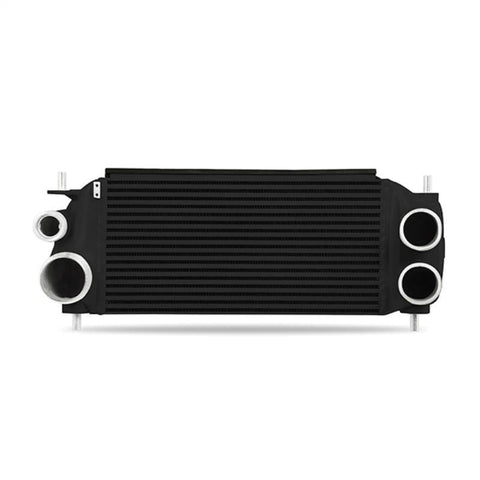

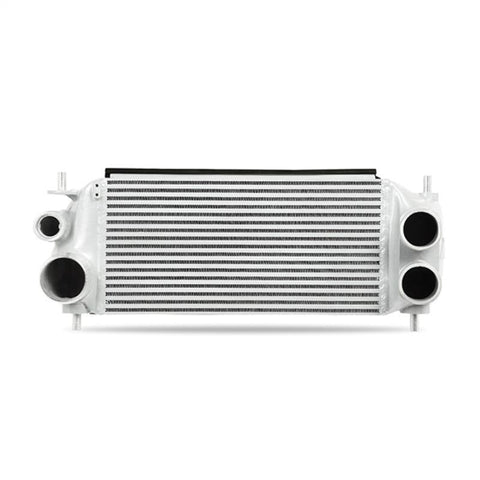

Combine our piping with the Mishimoto 2015+ F-150 EcoBoost Intercooler to unleash everything the twin-turbo 3.5L EcoBoost engine is capable of. Our intercooler increases core volume by 77% over stock and external fin surface area by 163%. With cast end tanks and a bar-and-plate construction, our intercooler combines strength and power for an all-around upgrade over stock.

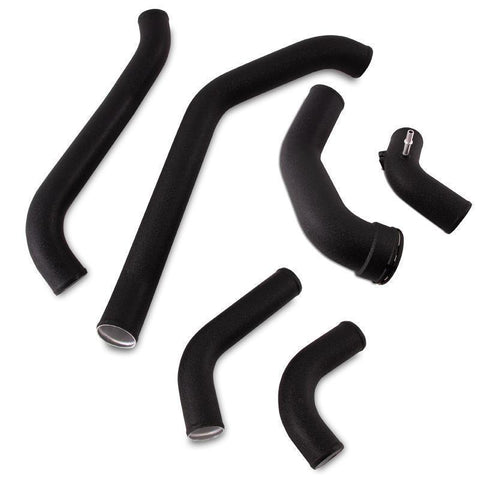

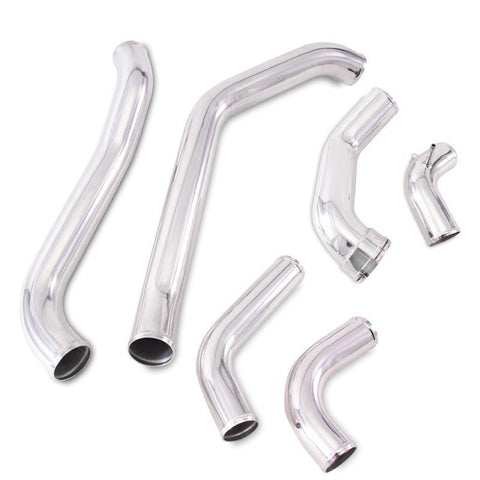

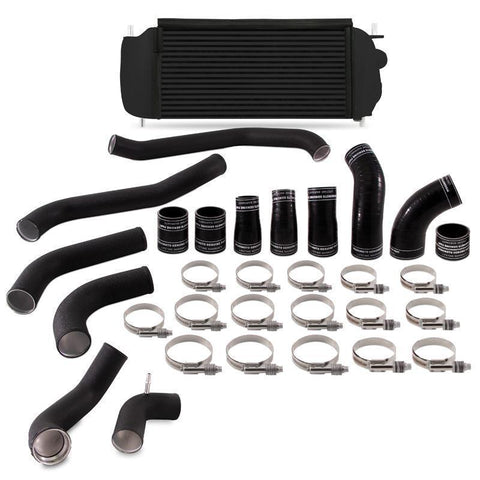

This kit is available with a black or silver intercooler and wrinkle black or polished pipes. As with all Mishimoto products, this 2017 3.5L F-150 EcoBoost Intercooler & Pipe kit is backed by our Lifetime Warranty.
Features
- Direct fit for 2017+ Ford F-150 3.5L EcoBoost
- Increased intercooler pipe volume allows for better flow and power potential
- Cold-side pipe includes CNC quick-disconnect with pre-installed O-ring and spring clip for quick and easy installation
- Additional port on cold-side pipe can be drilled and tapped for methanol injection or sensors
- Includes Mishimoto Silicone Boots with DuraCore™ technology for superior resistance to heat, pressure, fuel, and oil
- Constant-tension worm gear clamps keep a strong grip as pipes and boots expand and contract
- 10°F (5.5°C) reduction in intake air temp
- 77% increase in intercooler internal core volume
- 163% increase in external fin surface area
- All-aluminum, TIG-welded construction
- Intercooler available in Sleek Silver or Stealth Black, pipes available in polished or wrinkle black powder-coated finish
- Mishimoto Lifetime Warranty
Please Note: 27 in-lbs (3N*M) recommended for all t-bolt and constant tension t-bolt clamps. These clamps have an operating range of 18-35 in-lbs (2-4N*M). Do not exceed the maximum torque rating of 35 in-lbs (4N*M).
Applications
- 2017 - 2020 Ford F-150 3.5L EcoBoost
- 2017 - 2020 Ford F-150 Raptor 3.5L EcoBoost

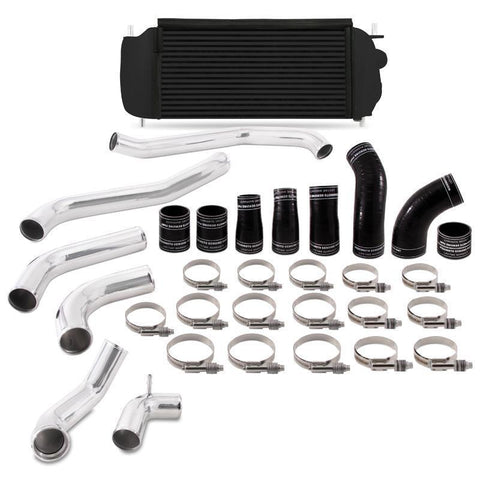

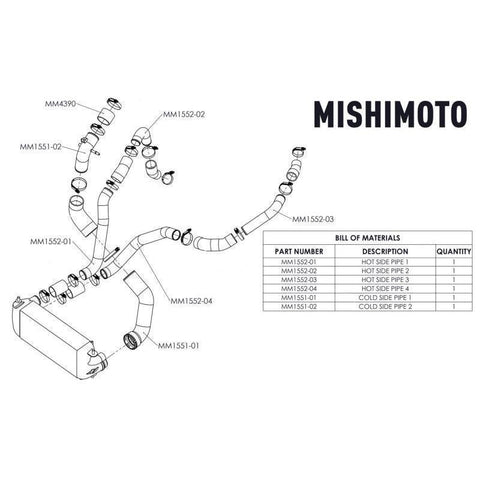

What's In The Box?
- 1 - Mishimoto Intercooler w/ Assembled Rubber Trim
- 1 - Bypass Valve Bracket
- 1 - Aluminum Cold-Side Intercooler Pipe w/ CNC Quick-Disconnect Flange
- 1 - Aluminum Cold-Side Intercooler Pipe w/ CNC IAT Sensor Housing
- 4 - Aluminum Hot-Side Intercooler Pipes

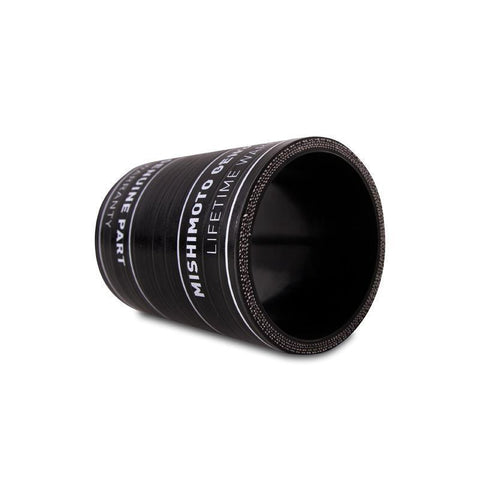

- 8 - Silicone Boots w/ DuraCore™ Technology
- 16 - Constant-Tension Worm Gear Clamps
- Necessary Mounting Hardware
- Bypass Valve Hardware
- Mishimoto Lifetime Warranty
Warranty
- Mishimoto Limited Lifetime Warranty
