Mishimoto Performance Intercooler Kit | 2013+ Ford Focus ST (MMINT-FOST-13K)

2013+ Focus ST Complete Performance Intercooler Kit by Mishimoto

It’s time to cool off your hot-hatch with the Mishimoto Performance Intercooler Kit for the 2013+ Ford Focus ST. Ford released their 2.0T EcoBoost-powered Focus boasting the perfect combination of performance and practicality, however, the intercooling system left something to be desired.

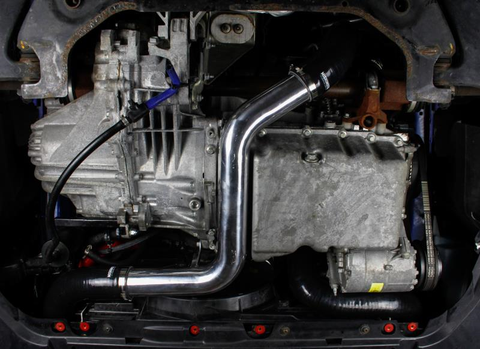

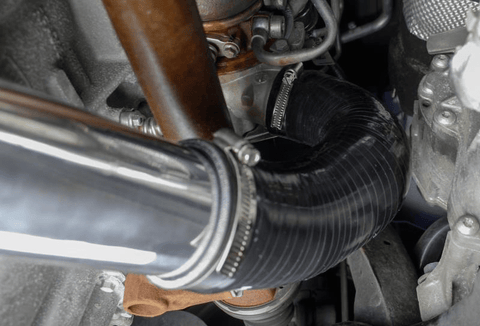

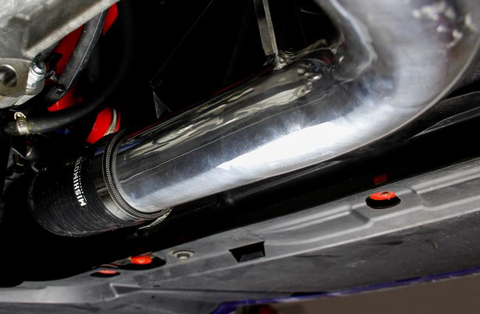

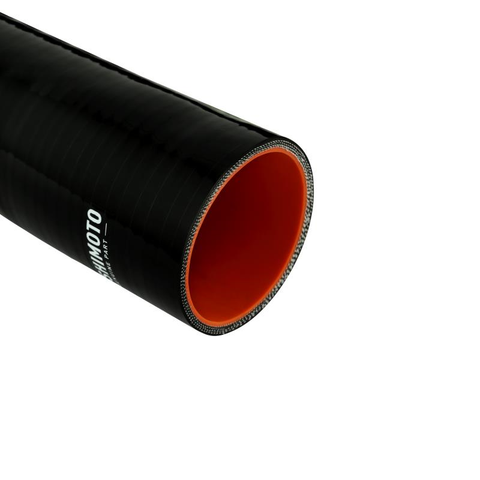

While the piping did feature sections of aluminum, the restrictive diameter and turbo muffler put a damper on the Focus ST’s performance potential. We’ve replaced the hot-side pipe with mandrel-bent aluminum, both ditching the muffler and opening up the diameter to allow a 26% better flow through the hot-side. All of the degradation-prone rubber has also been swapped for wire-reinforced silicone, ensuring a long-lasting connection on the hot-side and a smoother flow through the cold-side pipe. Together the Focus ST Intercooler Pipe Kit grants a 21% increase in flow to and from the intercooler.

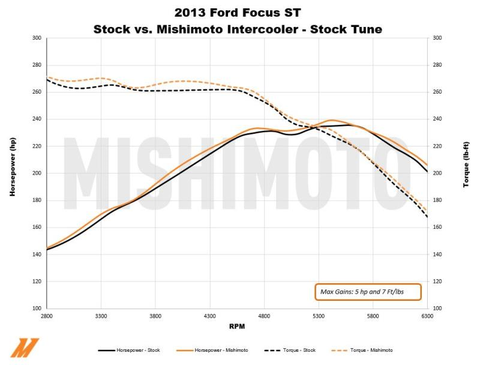

The piping isn’t the only part of this kit that increases flow. The bar-and-plate construction opens air channels within the core, allowing for the charged air to pass through more freely than the stock intercooler core. This upgraded all-aluminum construction aids in heat dissipation, warding off the dreaded heat-soak under demanding driving conditions, and delivering properly cooled air through the ST’s intake manifold. The Focus ST Performance Intercooler Kit will also add 8 HP and 10 TQ to your power band and has a maximum horsepower rating of 550HP.

The Mishimoto Performance Intercooler Kit for your 2013+ is available in silver, black, or gold, with an option of wrinkle black or polished piping. As always, this intercooler kit is covered under the Mishimoto Lifetime Warranty.

Features

• Direct fit for the 2013+ Ford Focus ST

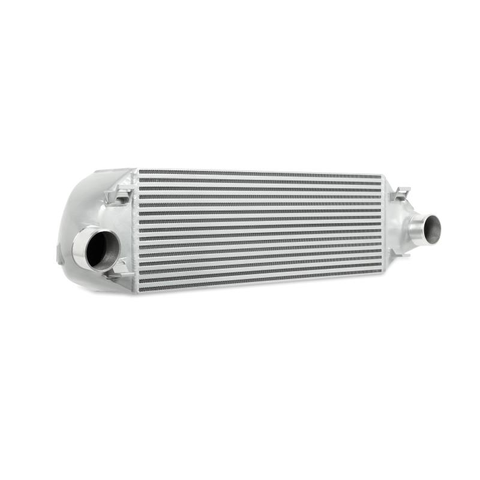

• 4.3" thick intercooler design optimized for maximum flow

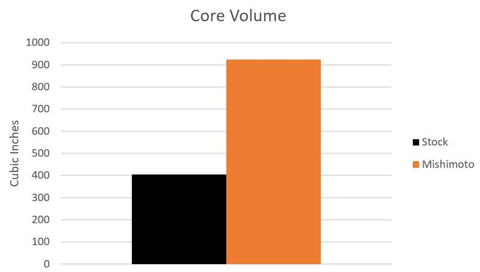

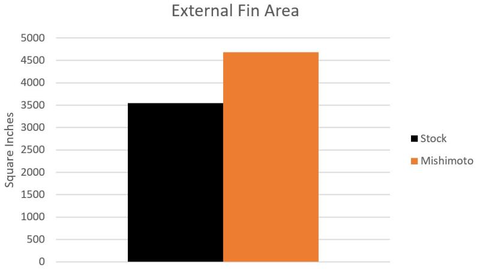

• Increases core size by 128% and fin surface area by 32%
• Cold-side pipe has elliptical shape to accommodate for larger Mishimoto radiator
• Provision for both US and Euro MAP sensor

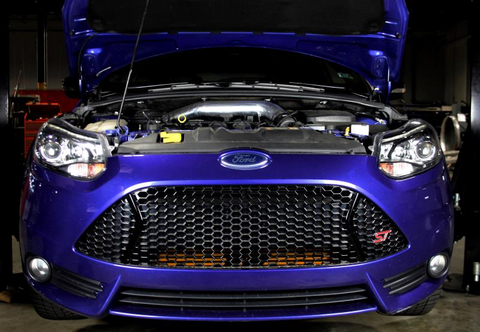

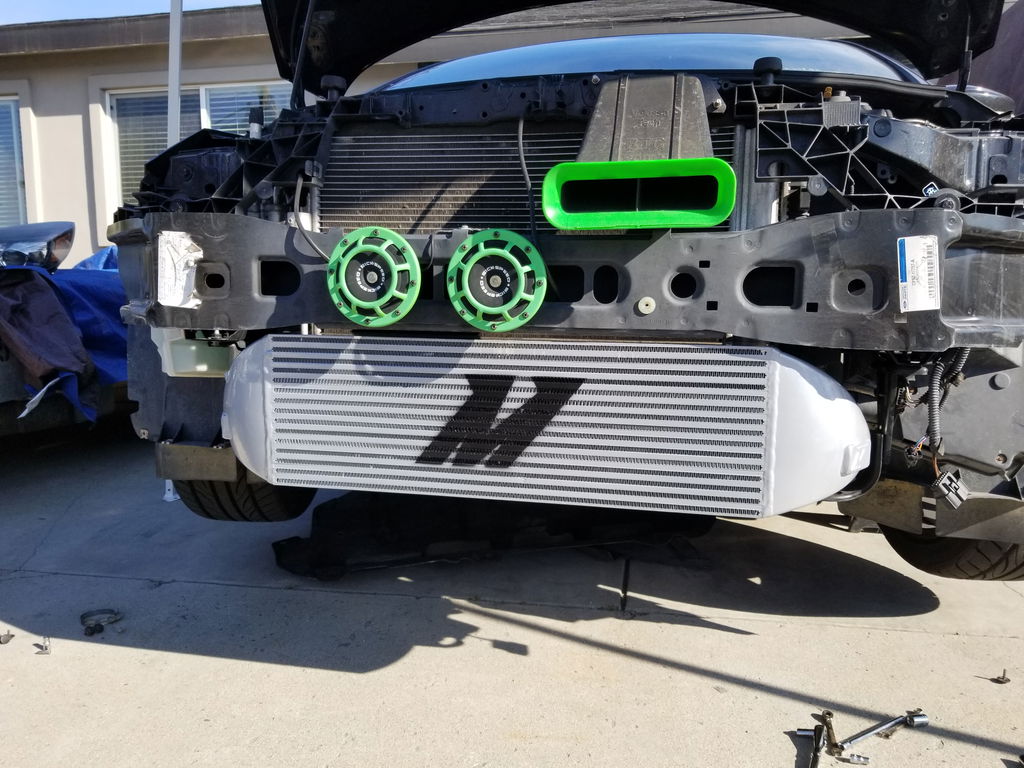

• No modification to front bumper and retains stock fog lights

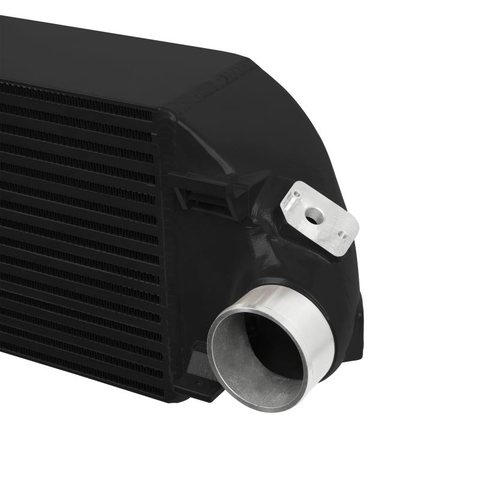

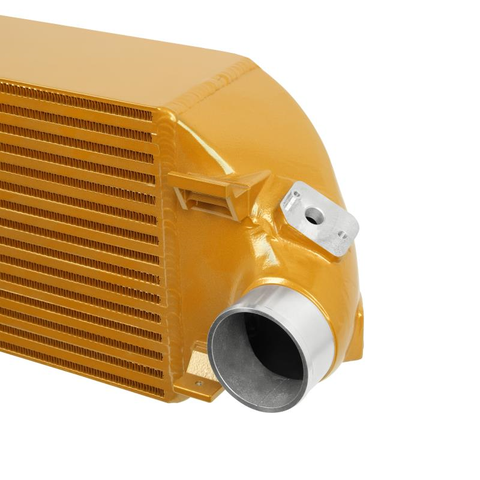

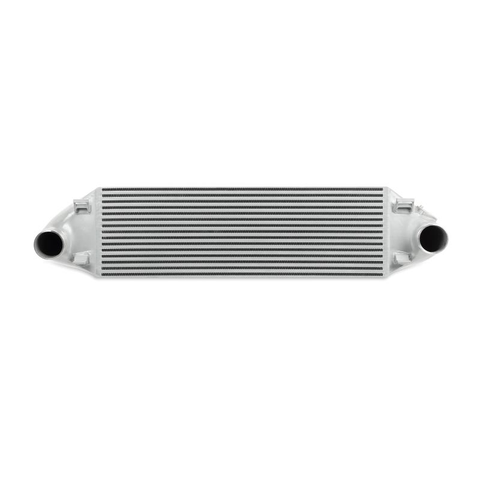

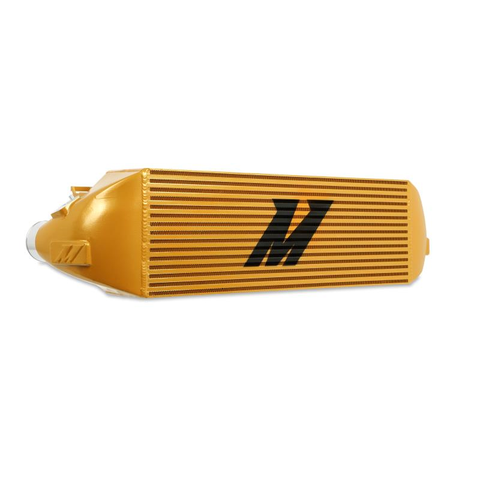

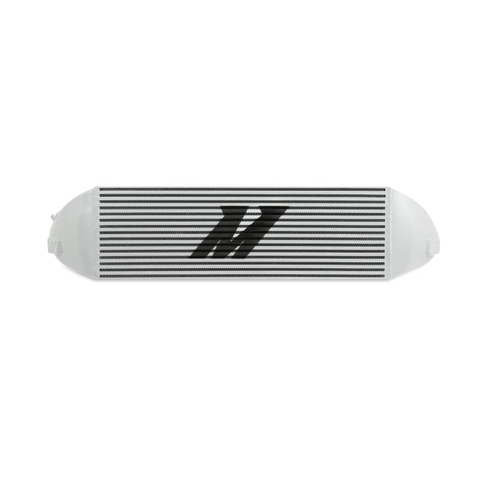

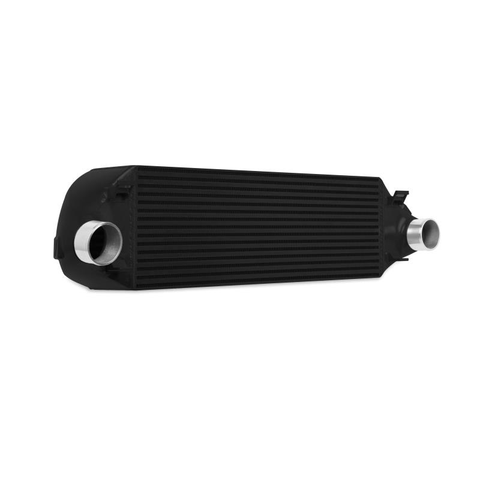

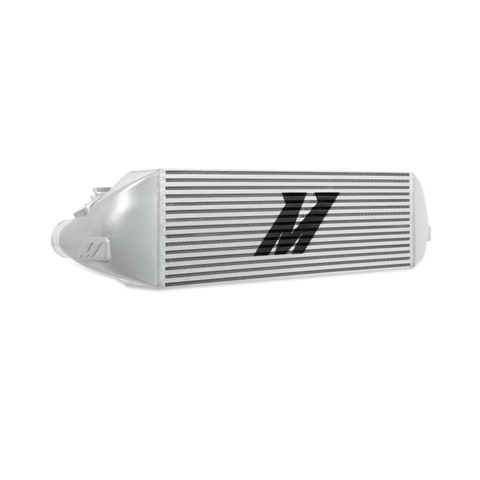

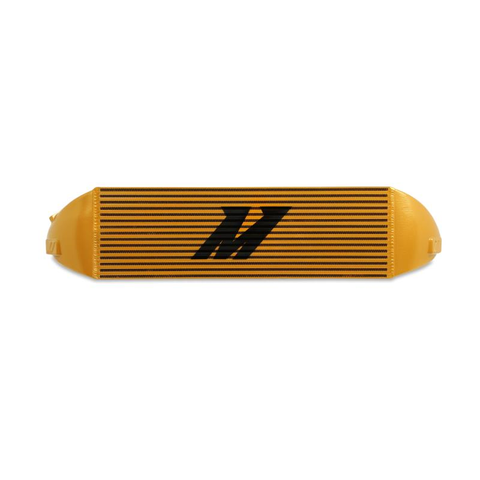

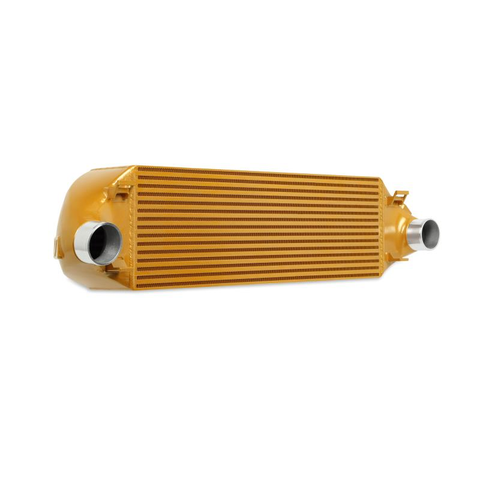

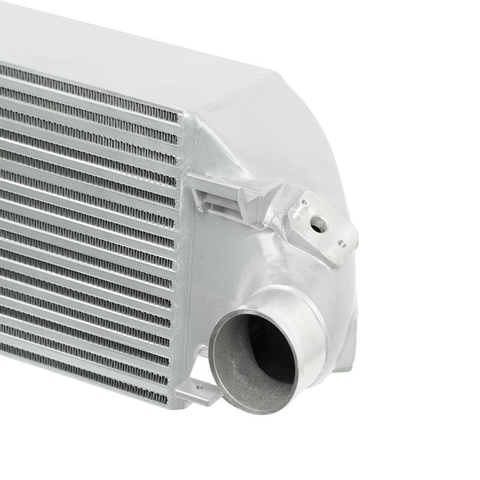

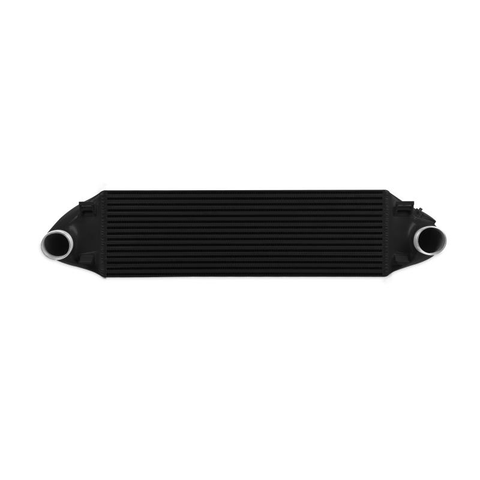

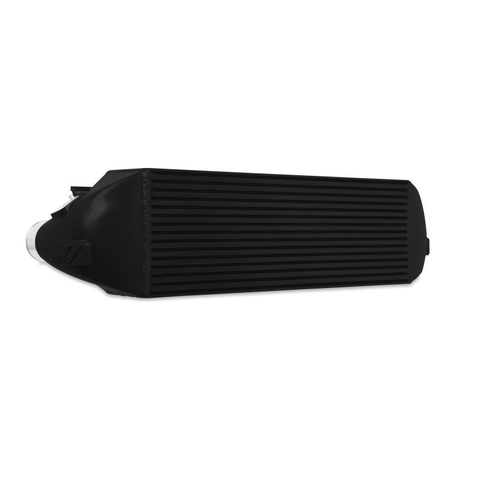

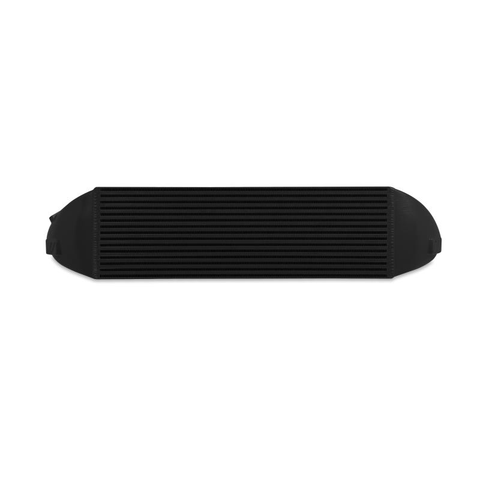

• Intercooler available in Sleek Silver, Stealth Black, and Bold Gold

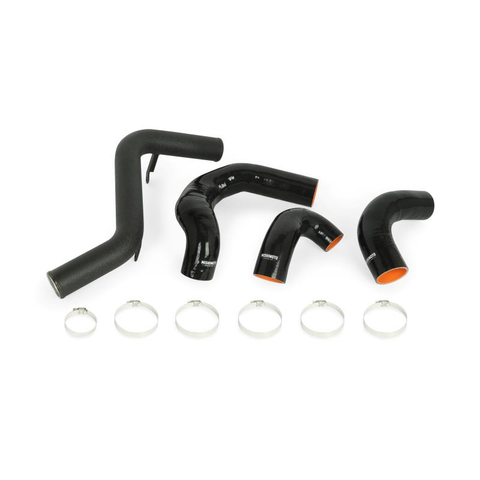

• Pipes available in polished or wrinkle black powder-coating

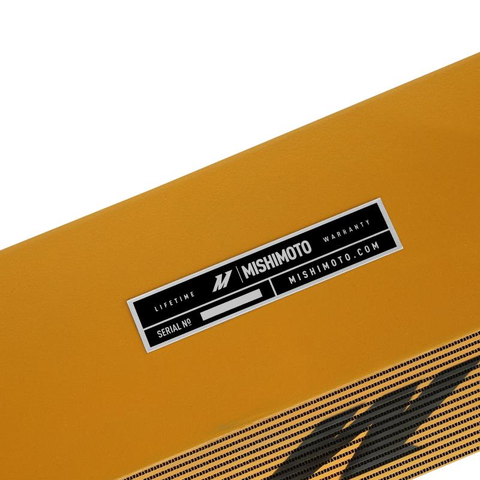

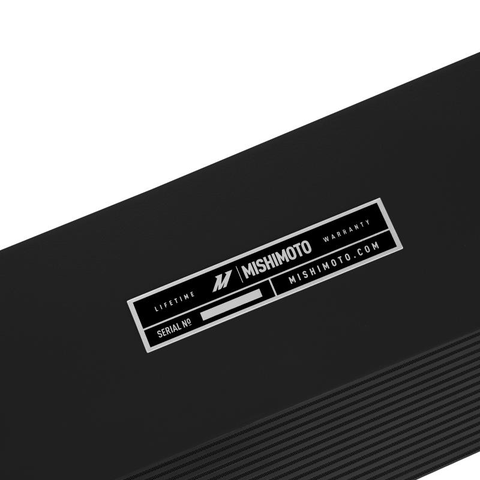

• Mishimoto Lifetime Warranty

Please Note: 22 in-lbs (2.5N*M) recommended for all worm-gear clamps. These clamps have an operating range of 18-27 in-lbs 2-3N*M. Do not exceed the maximum torque rating of 27 in-lbs (3N*M).

Applications

• 2013+ Ford Focus ST

Benefits

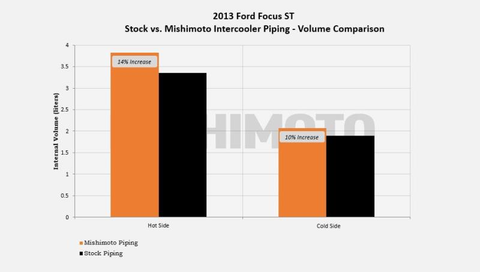

• Volume increase of 10%over stock cold-side
• Volume increase of 14% over stock hot-side
• Flow increase of 40% over stock cold-side
• Flow increase of 26% over stock hot-side

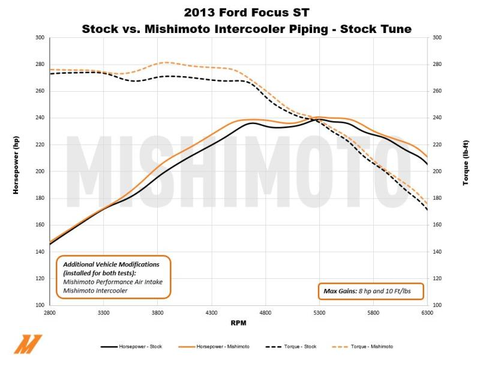

• Performance gains of 8hp & 10tq
• Maximum cooling efficiency

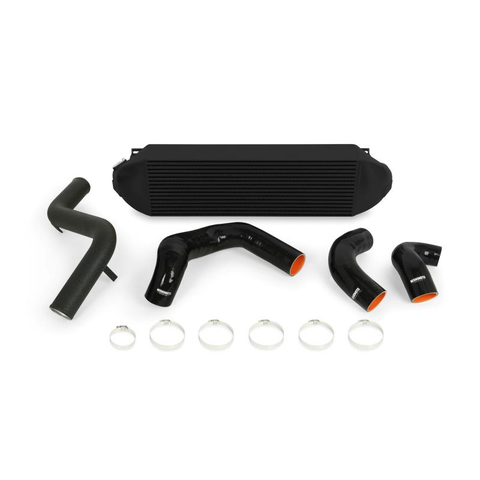

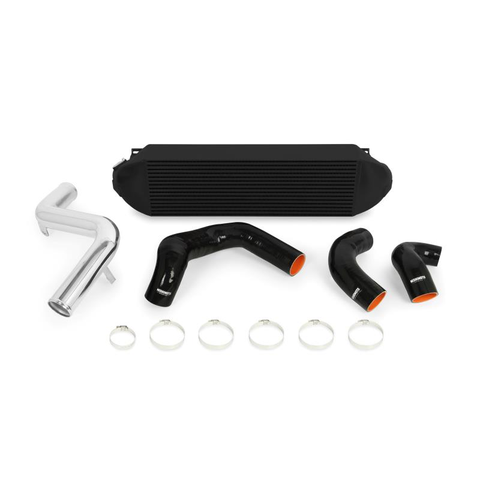

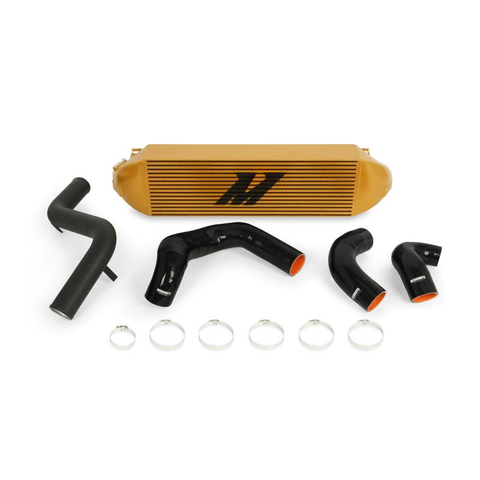

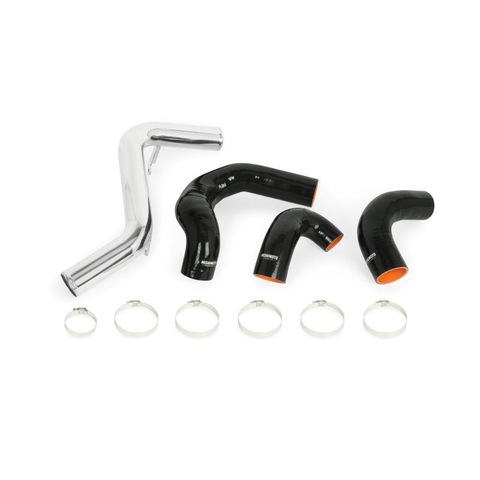

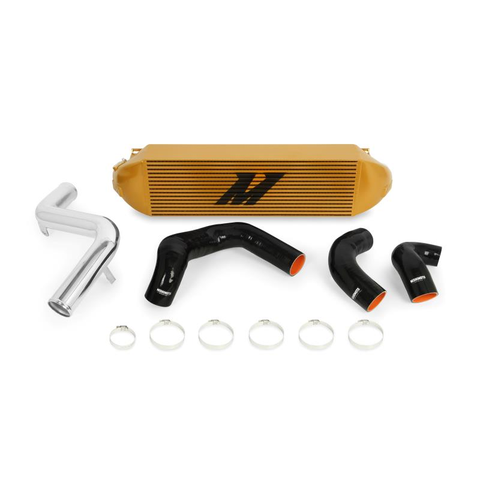

What's In The Box?

• 1 - Mishimoto Intercooler
• 1 - Aluminum Intercooler Pipe

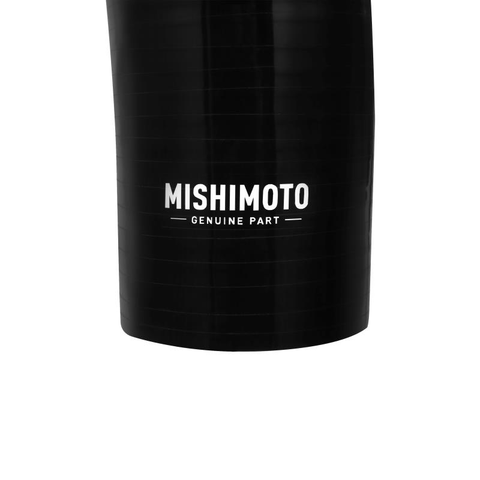

• 2 - Silicone couplers

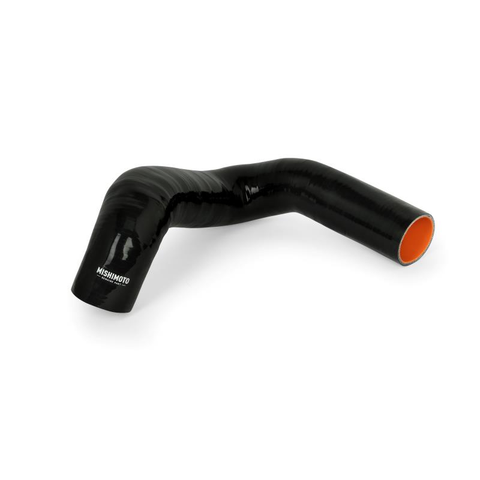

• 1 - Silicone Pipe
• 6 - High torque worm gear clamps
• Mishimoto Lifetime Warranty

References

• Installation Guide

Warranty

• Mishimoto Lifetime Warranty
