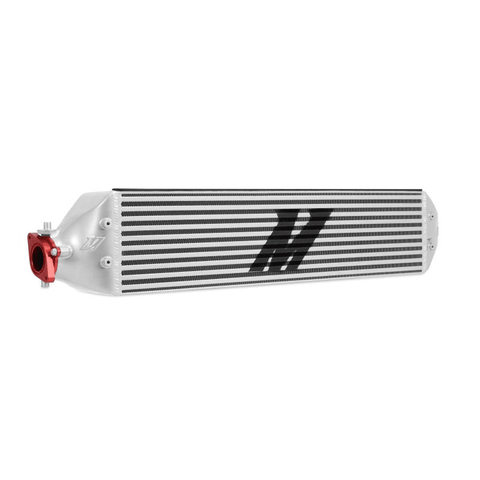

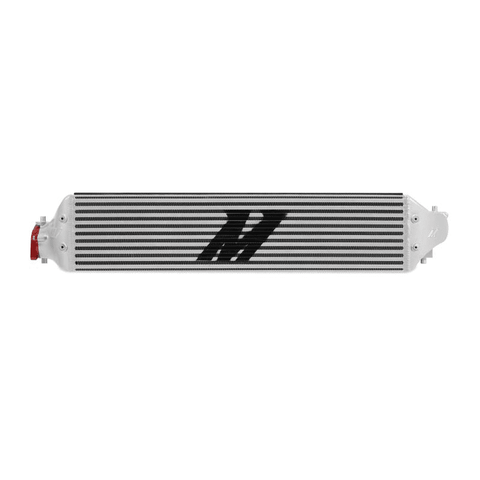

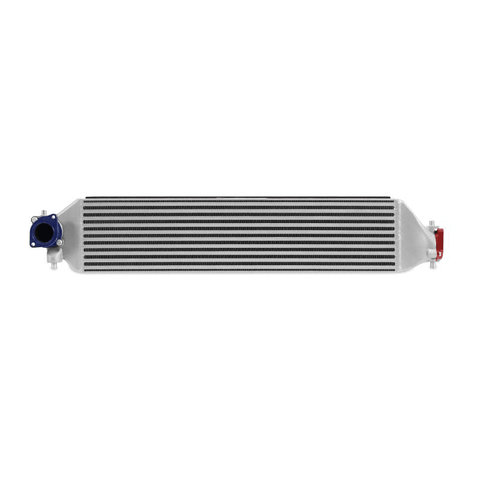

16+ Civic 1.5T/Si Performance Intercooler by Mishimoto
Keep the charged air temperatures down in your turbocharged Civic with the 2016+ Honda Civic Performance Intercooler from Mishimoto! In the age of the turbocharger, Honda has finally joined the ranks of forced induction by equipping their tenth generation of the Civic with the L15B7. Where the Earth Dreams technology might be advanced, it still suffers from an age-old enemy – heat.

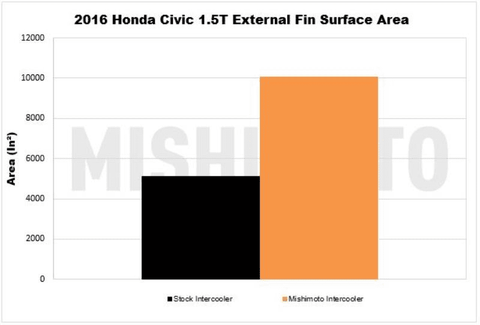

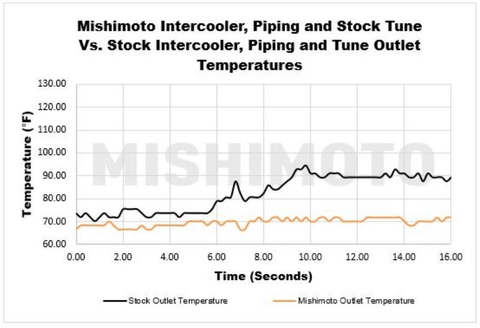

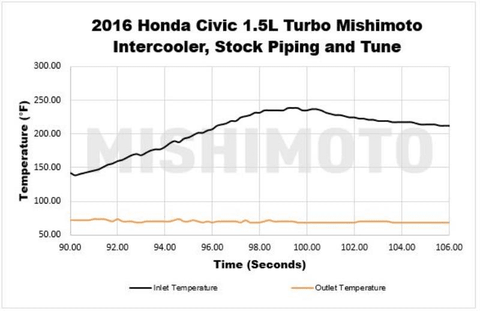

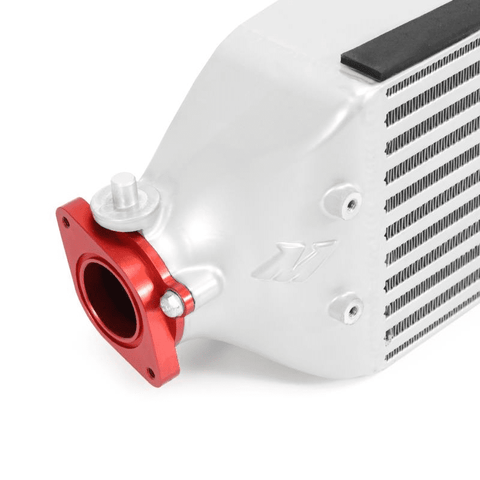

The stock intercooler utilizes a tube-and-fin construction coupled with plastic end tanks, giving high temperatures a perfect breeding ground. Our intercooler is designed with the Honda enthusiast in mind and eliminates high charged air temperatures that set up shop in the stock intercooler. The all-aluminum, bar-and-plate construction is specifically designed to shrug off heat generated by compressing air into the intake manifold. Our intercooler also has increased the volume by 102% and fin surface area by 97%, which helps drop outlet air temperatures by 20°F over the stock intercooler, and up to 42°F once a performance tune is added.

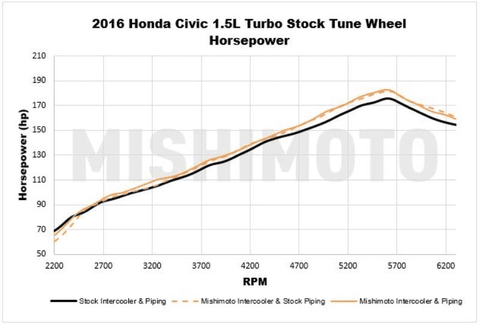

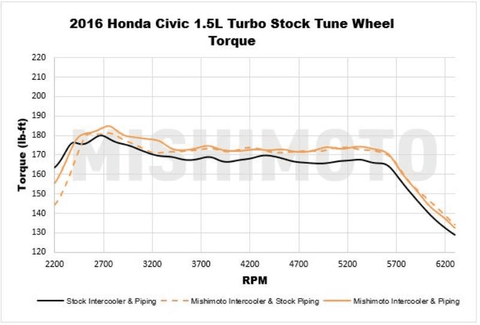

The benefits of our upgraded design don’t stop with the temperature drop. Our direct-fit intercooler adds up to 4 whp and 8 ft-lbs of torque when combined with the 2016+ Honda Civic Performance Intercooler Piping, with the potential to boost that power gain to 11 whp and 9 ft-lbs of torque with a tune. The Mishimoto 2016+ Honda Civic Performance Intercooler is available in silver or black and includes the Mishimoto Lifetime Warranty.
Features

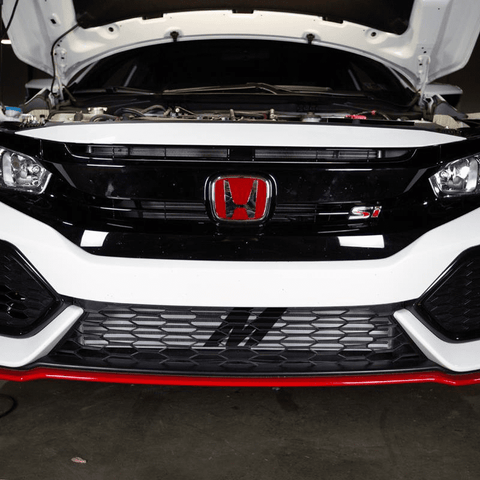

- Direct fit for the 2016+ Honda Civic 1.5T and Si
- Max power gains of 3 whp and 8 ft-lbs torque on stock tuning

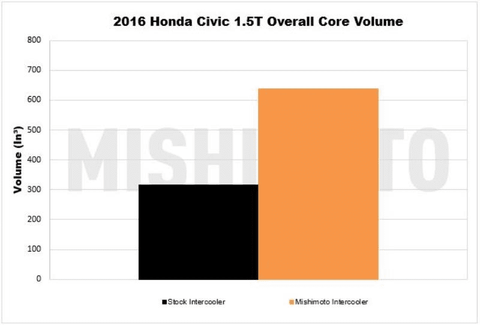

- Increased core size of 102% and fin surface area by 97%
- Drops outlet air temperatures by 20°F on the stock tune, and 42°F with performance tuning
- Optimal core design for maximum cooling efficiency with minimal pressure drop
- Compatible with stock piping

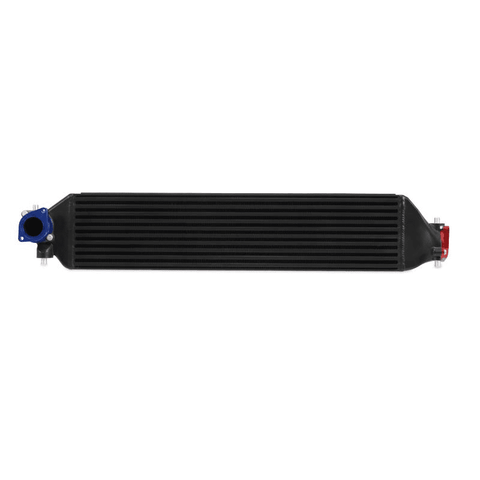

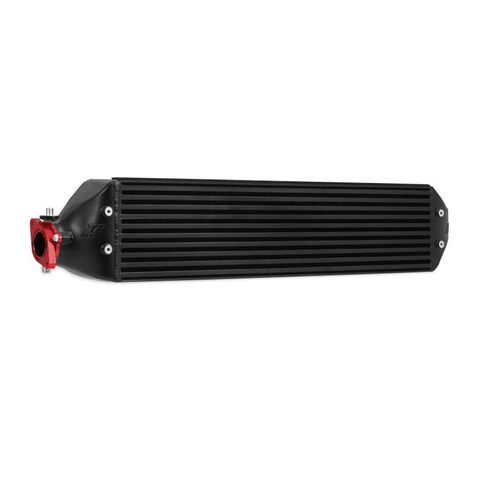

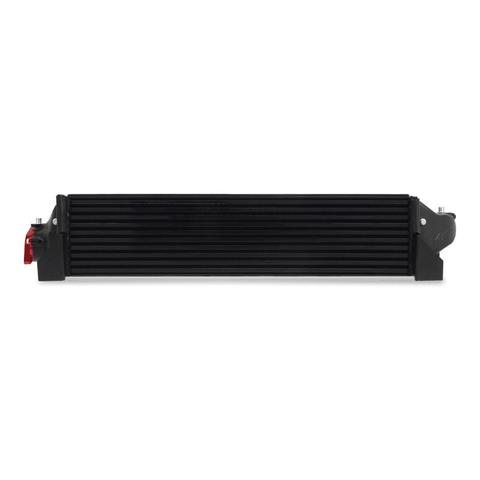

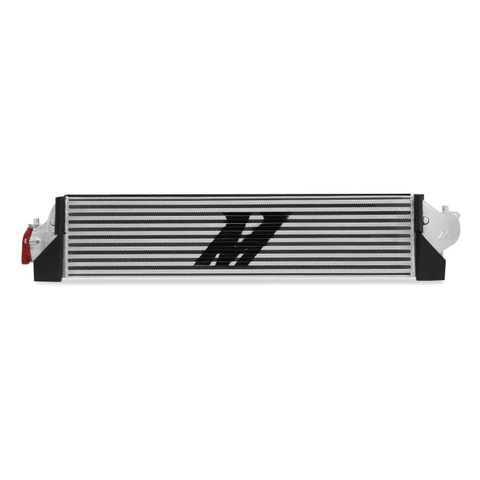

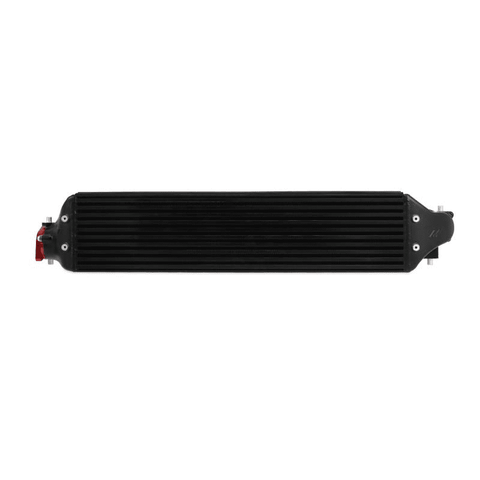

- Available in silver or black
Please Note: 22 in-lbs (2.5N*M) recommended for all worm-gear clamps. These clamps have an operating range of 18-27 in-lbs 2-3N*M. Do not exceed the maximum torque rating of 27 in-lbs (3N*M).
Applications
- 2016+ Honda Civic 1.5T
- 2017+ Honda Civic Si

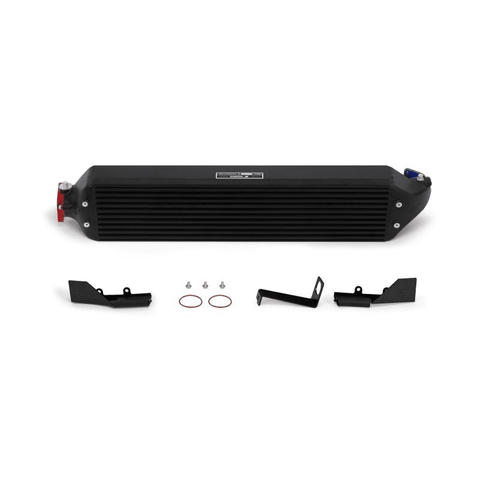

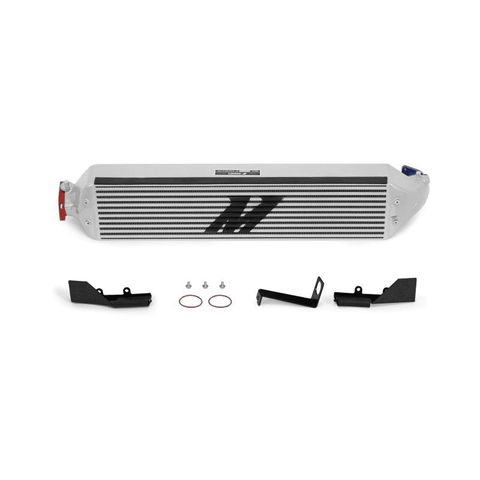

What's In The Box?
- 1 - Mishimoto Intercooler

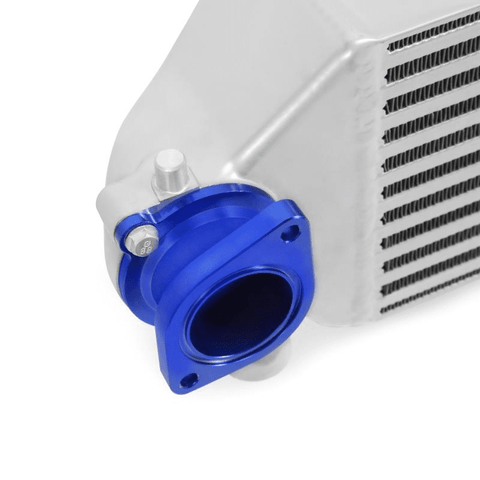

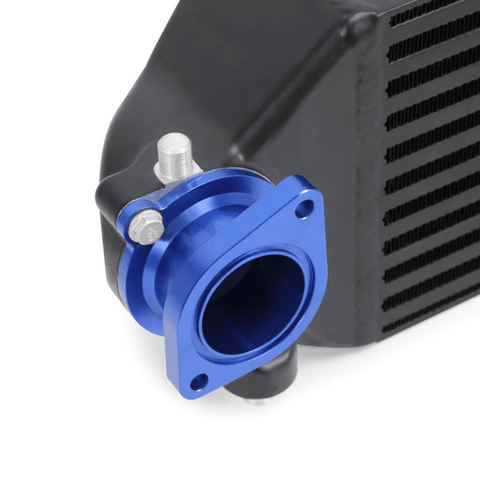

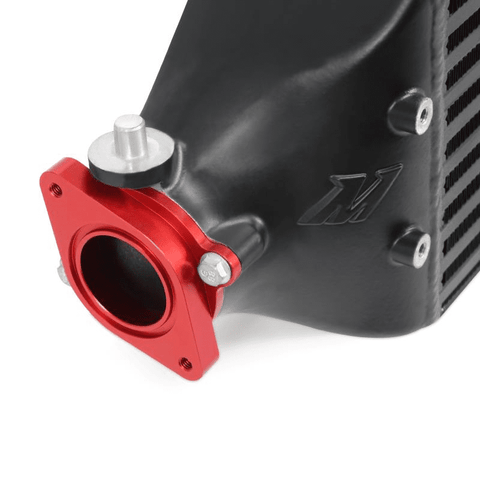

- 1 - Stock Piping Adapter Kit
- 1 - Shrouding Kit
- Mounting Hardware

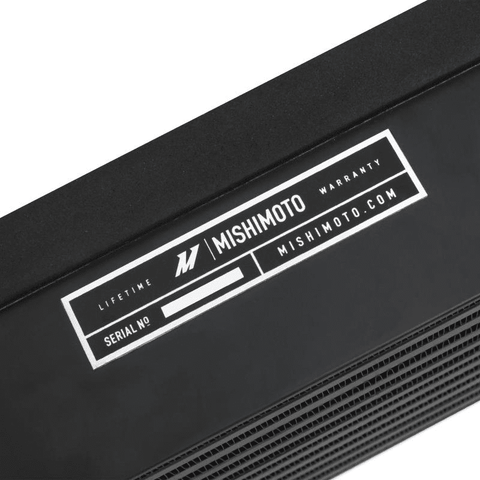

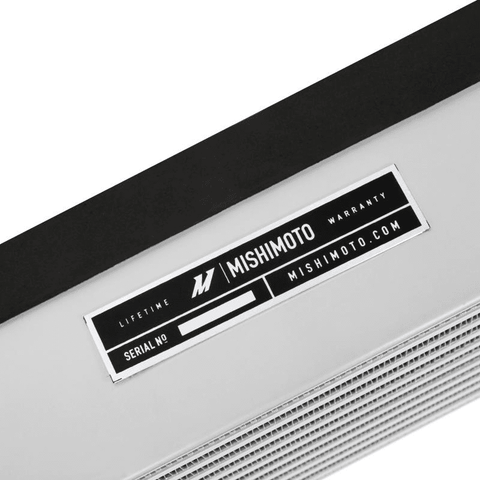

- Mishimoto Lifetime Warranty
References
Warranty
- Mishimoto Lifetime Warranty
Customer Reviews
Overall it’s great in terms of design when it came to installing it it was a time taker but overall satisfied😁.
Keeps my engine bay cooler and made my car pull a lot better.
I haven't noticed any heat soak after install and have pushed car decently for a few months in hot Texas heat.
10/10 I highly recommend this intercooler keeps my temps about 30 degrees lower and finally gets rid of that god awful heat soak. I pushed the car for about 3 hours cruising with my friends and my air temps didn’t go above 105 everyone forgets about cooling when they upgrade their car but this is definitely worth every penny
Mishimoto did a fantastic job on this intercooler, after installing it and driving it for about a week I’ve had no issues with heat soak at all. And you can definitely feel that the engine just likes it so much more over the cheap stock intercooler.
