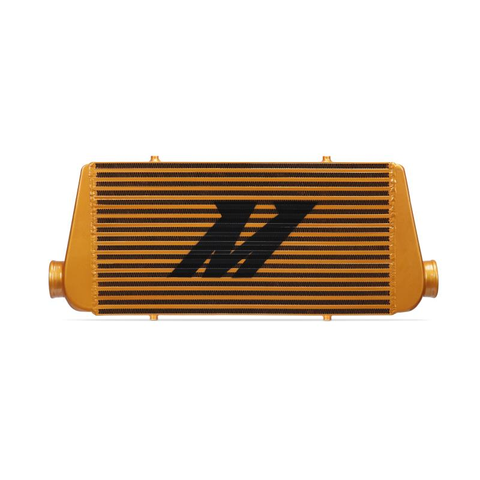

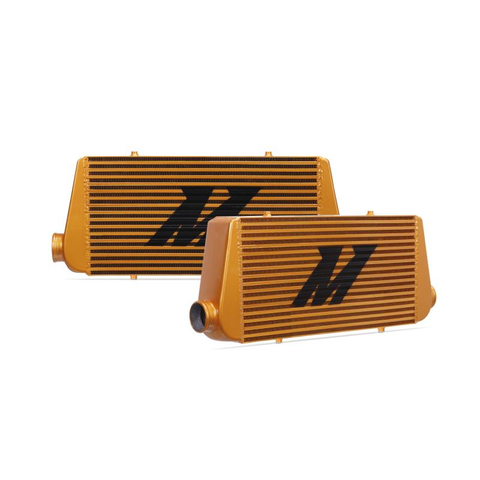

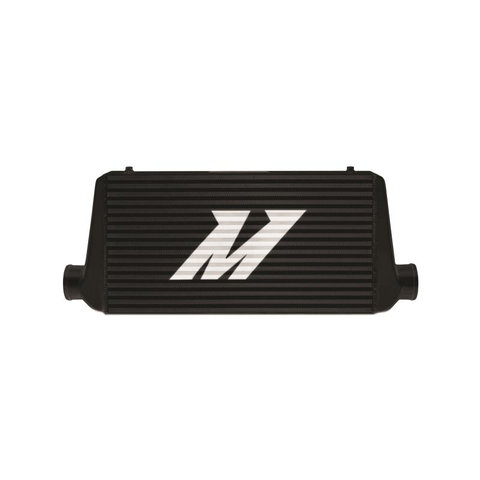

Mishimoto Universal R-Line Intercooler (MMINT-UR)

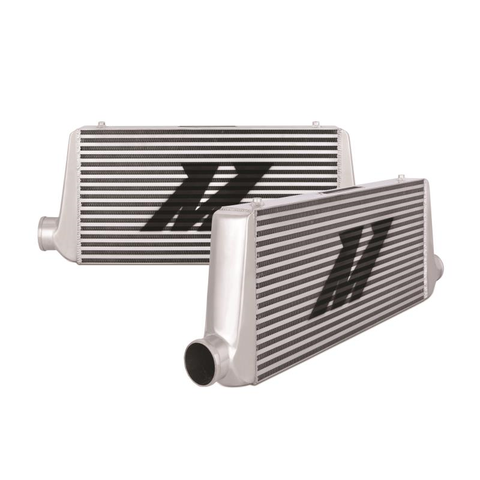

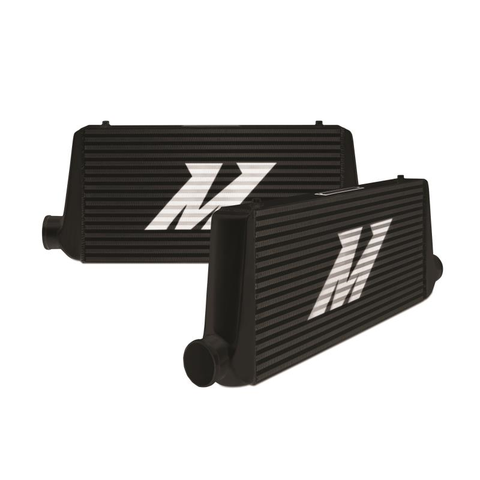

Universal R-Line Intercooler by Mishimoto

The Mishimoto R-Line intercooler provides the perfect cooling capacity needed for supercharged and turbo charged vehicles.

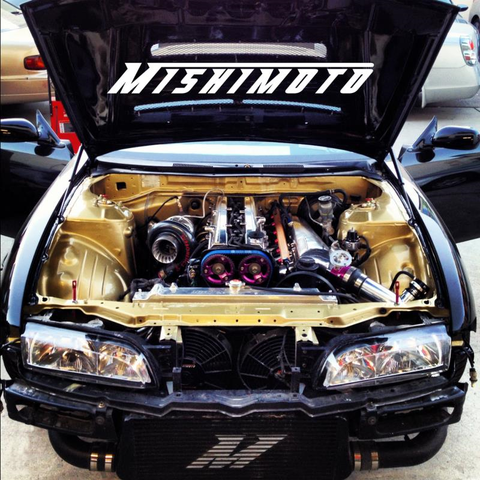

Constructed of 6061 aircraft-quality aluminum for extreme durability, the Mishimoto R-Line intercooler will efficiently reduce induction air temperatures, while significantly improving engine output. Mishimoto front-mount intercoolers are precision TIG welded, offering an enhanced level of performance.

The R-Line intercooler will provide the ideal cooling capacity, while safely increasing horsepower and giving that extra boost that every driver appreciates.

Features

• Durable bar-and-plate core provides superior heat transfer while effectively reducing AITs
• Robust, one-piece cast aluminum end tanks withstand high boost pressures
• Massive 4" thick core and 3" inlet/outlet provides optimal flow and volume for high horsepower vehicles

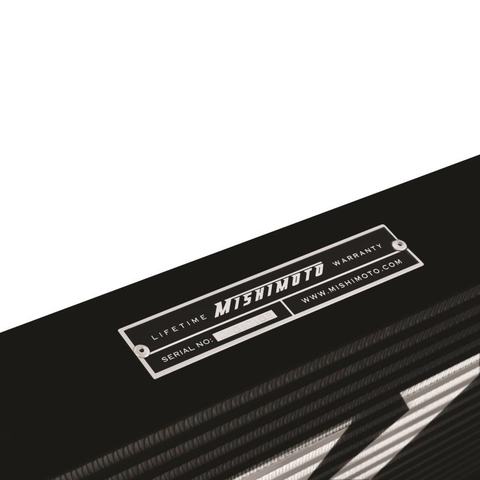

• Mishimoto Lifetime Warranty

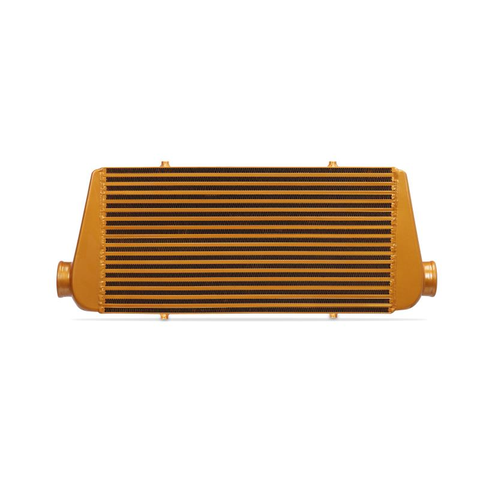

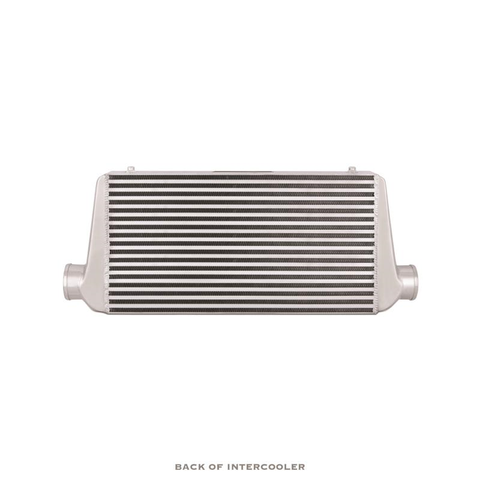

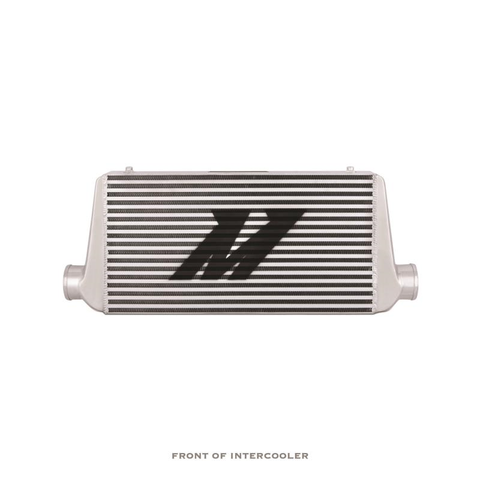

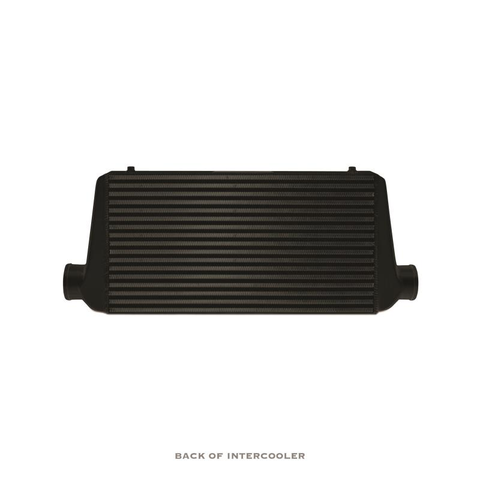

Please Note: For your taste, only one side of the intercooler has the Mishimoto logo.

Applications

• Universal

Specifications

• Construction: Bar and Plate
• Tank Wall Thickness: 5mm
• Core Size: 24" x 12" x 4"
• Overall Size: 31" x 12" x 4"
• Inlet Size: 3"
• Outlet Size: 3"
• Fin Pitch: 15 Fins/Inch
• Max Rec. PSI: 32psi
• CFM: 1250

What's In The Box?

• 1 - Universal R-Line Intercooler

Warranty

• Mishimoto Lifetime Warranty
