Mishimoto Front-Sump Oil Cooler Adapter | 2004-2006 Pontiac GTO (MMOCA-GTO)

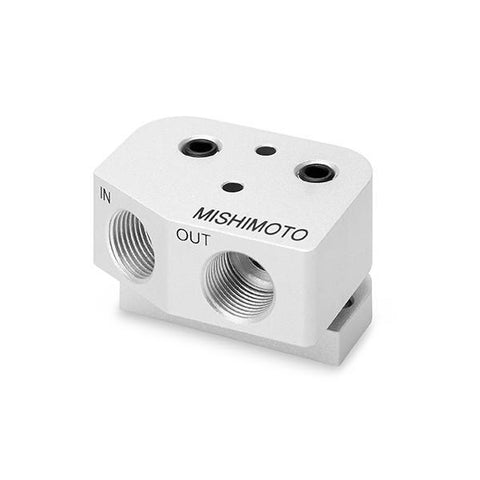

LS1/LS2 Front-Sump Oil Cooler Adapter

This LS1/LS2 front-sump oil cooler adapter allows you to get creative with your build. It is designed to give you a starting point when designing your own custom oil cooler setup. The adapter and fittings are CNC-machined from 6061 aluminum for superior fitment and durability. The adapter features two 1/8” NPT ports to allow for extra sensors or oil feeds, just in case you’re thinking of adding a big ole’ turbocharger in the future. Let this kit be the end of high oil temperatures in your LS engine.

Features

• Designed for LS1/LS2 equipped vehicles with a front-sump
• Allows for use of -10AN fittings for custom oil cooler installation
• CNC-machined components, including 6061 aluminum fittings and adapter plates
• Two 1/8" NPT ports (with plugs) for sensors/oil feed/etc.

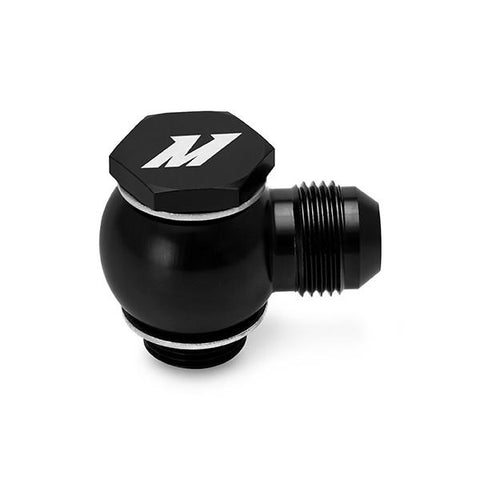

• Includes one straight and one banjo fitting for easy installation of -10AN oil lines
• Includes power steering relocation bracket

Applications

• 2004–2006 Pontiac GTO
• 2001–2005 Holden Monaro (V2 VC8 & VZ)
• 1999–2006 Holden Commodore (VT, VX, VY & VZ)
• 1999–2006 Holden Commodore Ute
• 1999–2006 Holden Statesman (WH, WK, WL)
• 1999–2006 Holden Caprice (WH, WK, WL)
• 2001–2006 Vauxhall Monaro

What's in the box?

• (1) Oil Cooler Adapter Housing & Spacer
• (1) Aluminum Power Steering Relocation Bracket
• (1) Banjo Fitting w/ Bolt M20 x -10AN, Black
• (1) M20 x -10AN Straight Fitting, Black
• (2) O-Rings
• (2) 1/8" NPT Plugs
• (1) Mounting Hardware Set

Warranty

• Limited Lifetime Warranty
