Mishimoto Front Mount Intercooler w/ Crash Beam | 2008-2014 Subaru STI (MMINT-STI-08B)

2008-2014 Subaru STI Front Mount Intercooler and Crash Beam by Mishimoto

Designed for applications that demand the greatest airflow and cooling capabilities, the Mishimoto STI Front-Mount Intercooler Kit will provide your Subaru with the ability to make the most horsepower and torque possible.

The Mishimoto STI intercooler was designed with a robust bar-and-plate intercooler core that provides the maximum cooling capability without excessive pressure drops that will wear out any turbocharger over time. The Mishimoto STI intercooler features smooth cast end tanks that are CFD tested for maximum airflow with no sharp walls or bends from cut-and-weld end tanks that disrupt airflow. The intercooler provides the best airflow and heat-exchange properties for those time-attack laps or a 10-second blast down the quarter-mile.

The kit contains everything needed for a worry-free installation, including an application-specific crash bar that both supports the intercooler and mounts to existing points on the vehicle. No cutting or drilling is required to install the crash bar and intercooler. The 2008–2014 Subaru STI Front-Mount Intercooler and Crash Beam kit also includes all of the necessary hardware for a simple installation and is ready for custom piping. This kit is available in silver, black, or gold and is covered under the Mishimoto Lifetime Warranty.

Features

• Fits the 2008–2014 Subaru STI
• Optimal core design for maximum cooling efficiency with minimal pressure drop
• Rated to 600 whp
• Smooth cast end tanks allow the best possible airflow in and out of the intercooler
• Intercooler available in silver, black, or gold
• Mishimoto Lifetime Warranty

Please Note

• Mishimoto recommends that this intercooler kit not be used with the stock ECU programming. It is highly recommended that the customer be able to retune the vehicle’s ECU after installing the intercooler kit.
• Power gains will vary depending on the size of the turbo, exhaust system, fuel system, and type of ECU tune that is applied to the vehicle.
• This kit is rated for approximately 600 whp, or 30 psi of turbo boost. Exceeding these horsepower or pressure limits could require a custom-size front-mount intercooler.

Applications

• 2008 - 2014 Subaru STI

Specifications

• Core Thickness: 2.76"
• Weight: 25.5 lbs
• Coating: Powder Coated
• Tank Wall Thickness: 3.5 mm
• Max Rec. PSI: 30 psi
• Outlet Size: 3"
• Inlet Size: 2.75"
• Core Size: 28" x 8.25" x 3.5"
• Overall Width: 5.5"
• Overall Height: 9"
• Overall Length: 44"
• Construction: Bar-and-plate
• Max Rec. HP: 600 whp

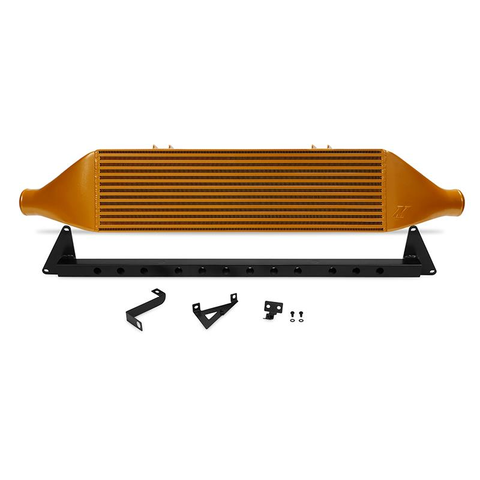

What's In The Box?

• 1 - Bar-and-Plate Intercooler

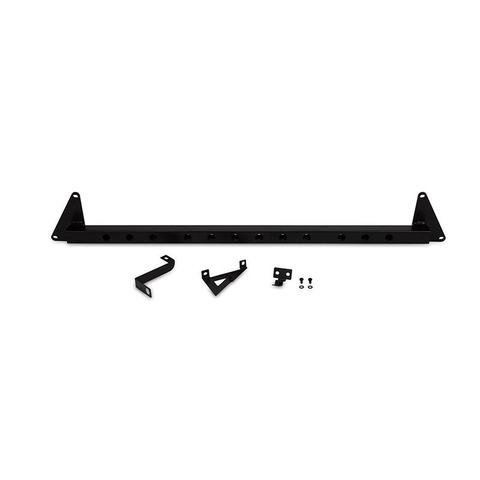

• 1 - Steel Crash Bar
• Mounting Hardware
• Mishimoto Lifetime Warranty

Warranty

• This kit is covered under the Mishimoto Lifetime Warranty.
